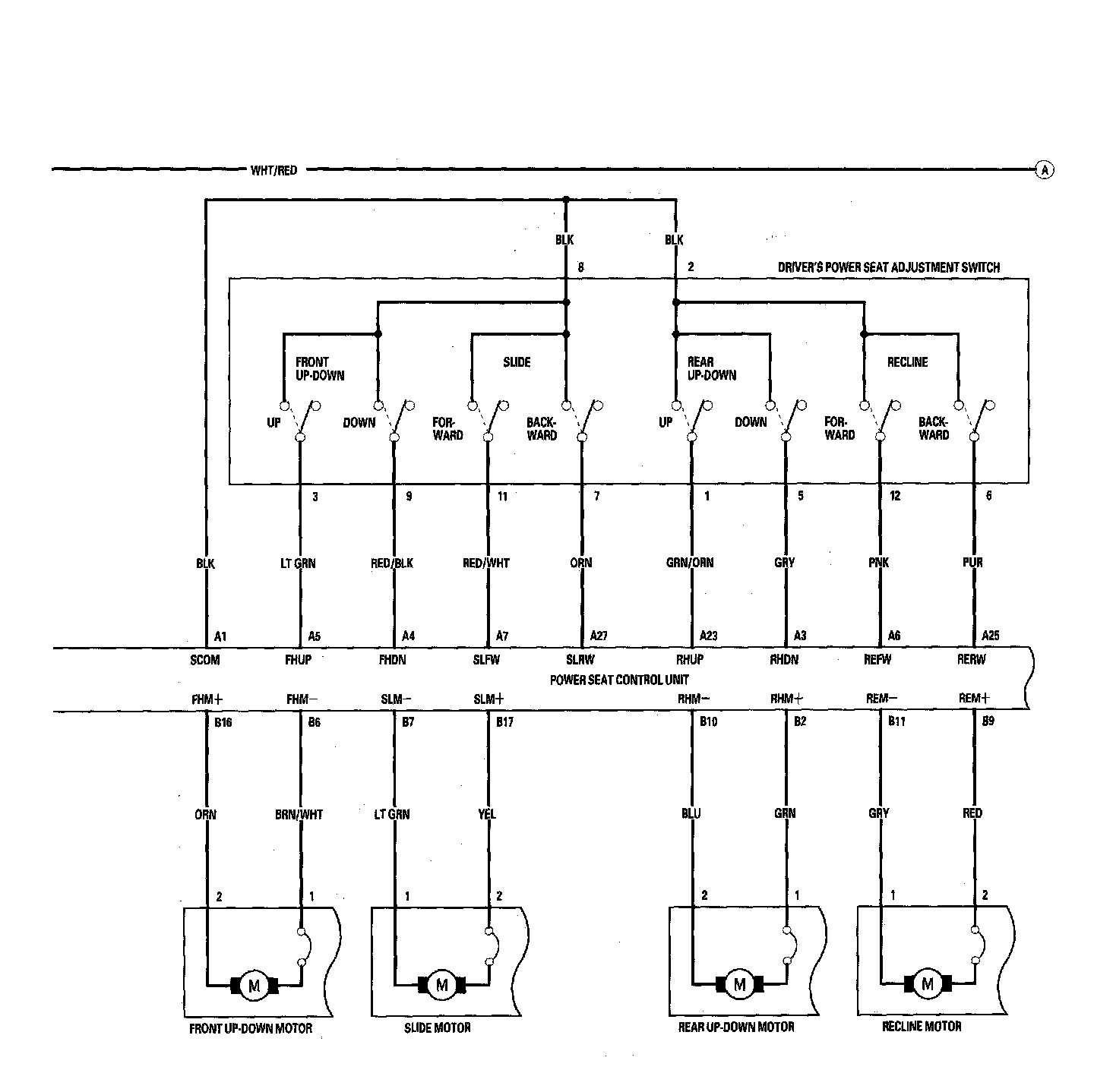

Driving Position Memory System (DPMS) - Circuit Diagram:

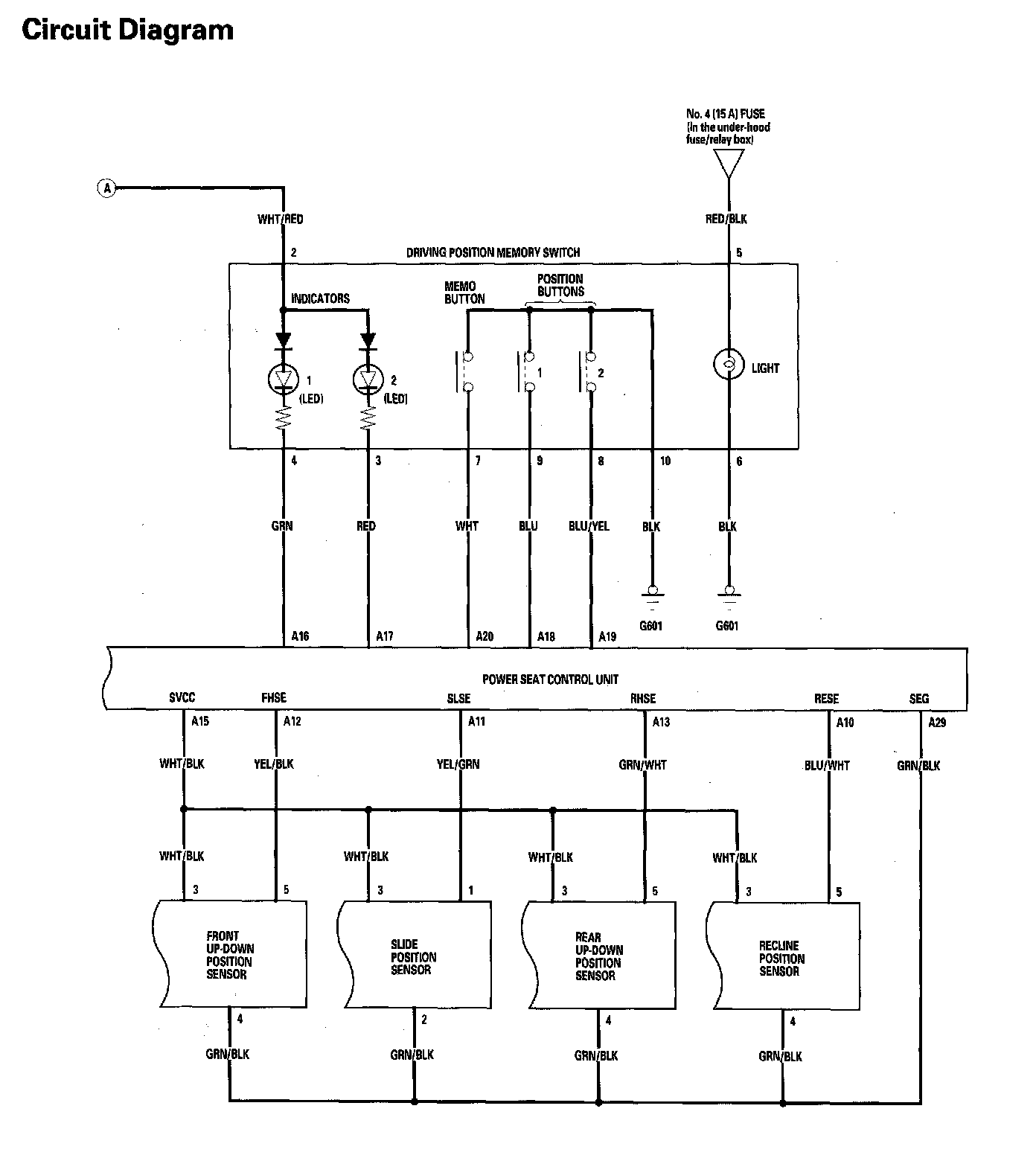

Driving Position Memory System (DPMS) - Circuit Diagram Part 2:

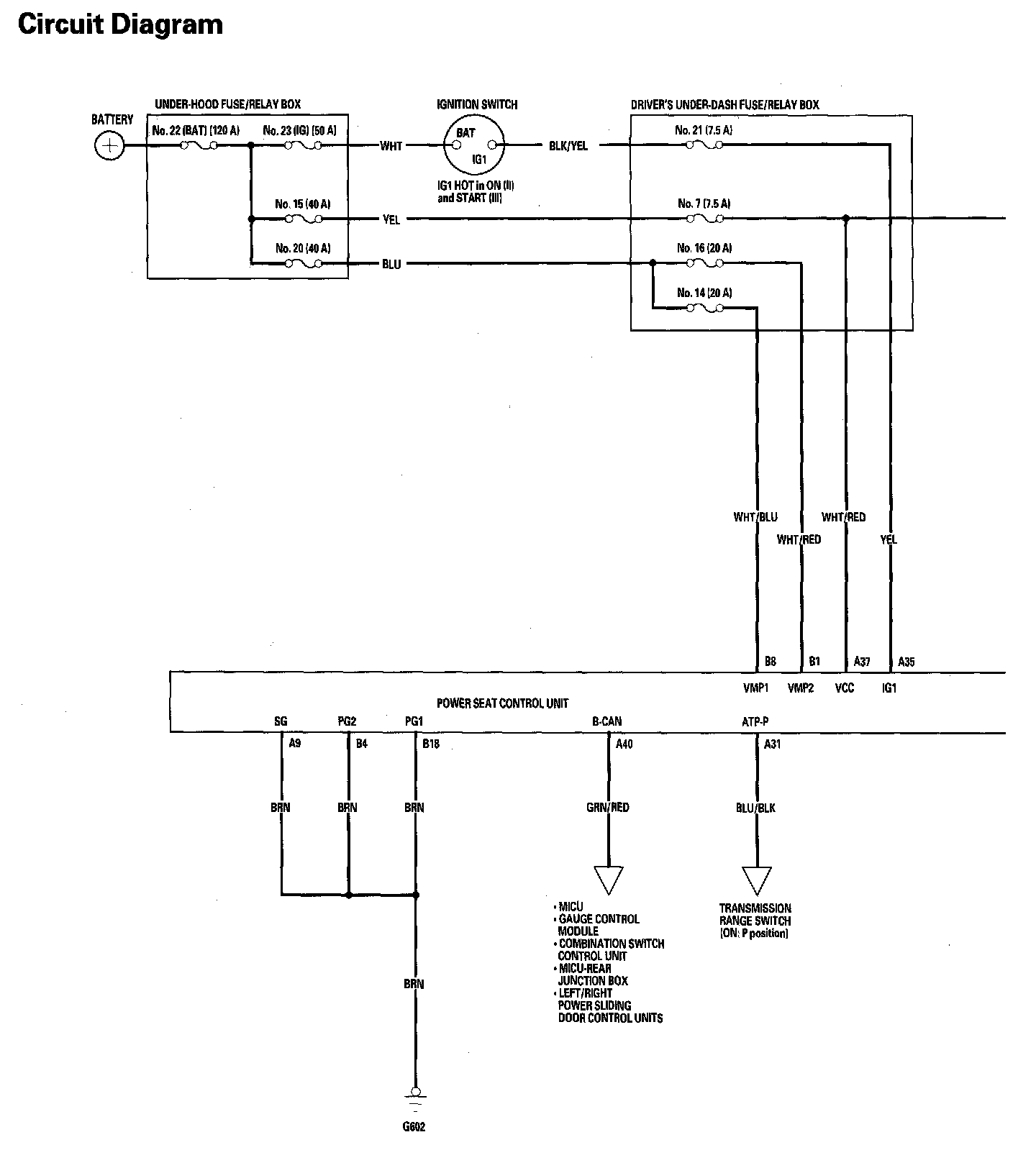

Driving Position Memory System (DPMS) - Circuit Diagram Part 3:
