J35A7 Engine

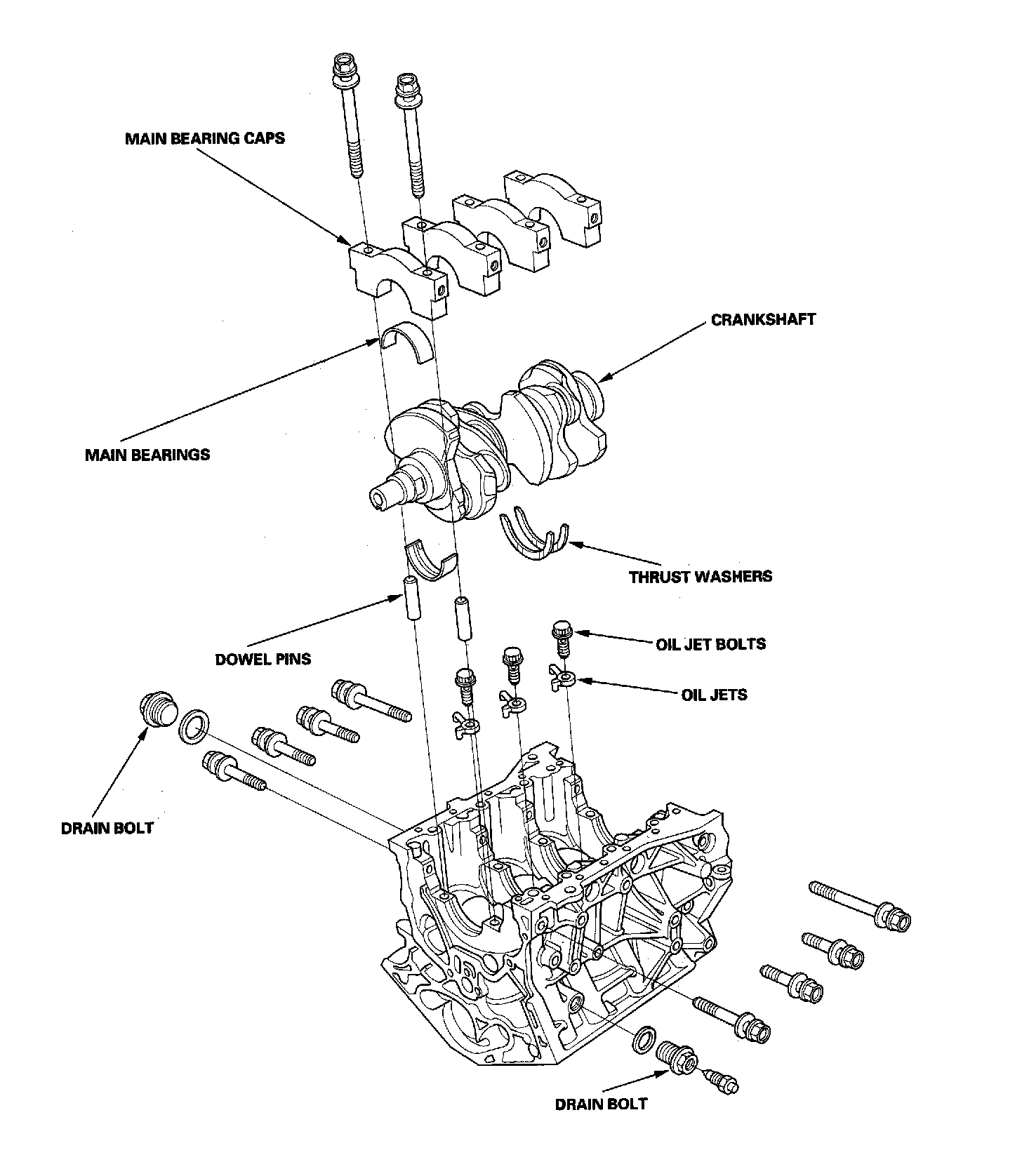

J35A7 Engine Component Location Index:

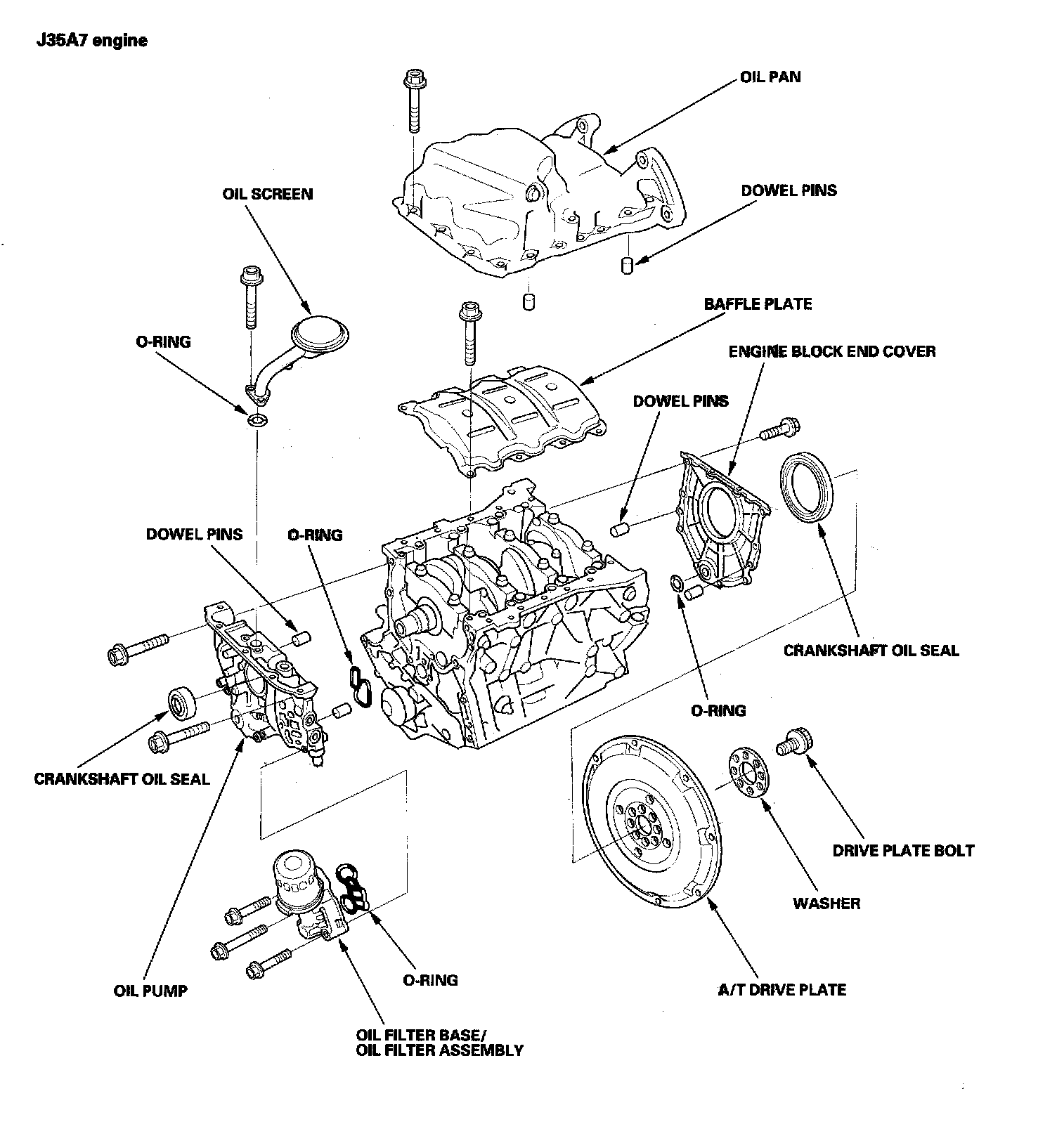

J35A7 Engine Component Location Index (continued):

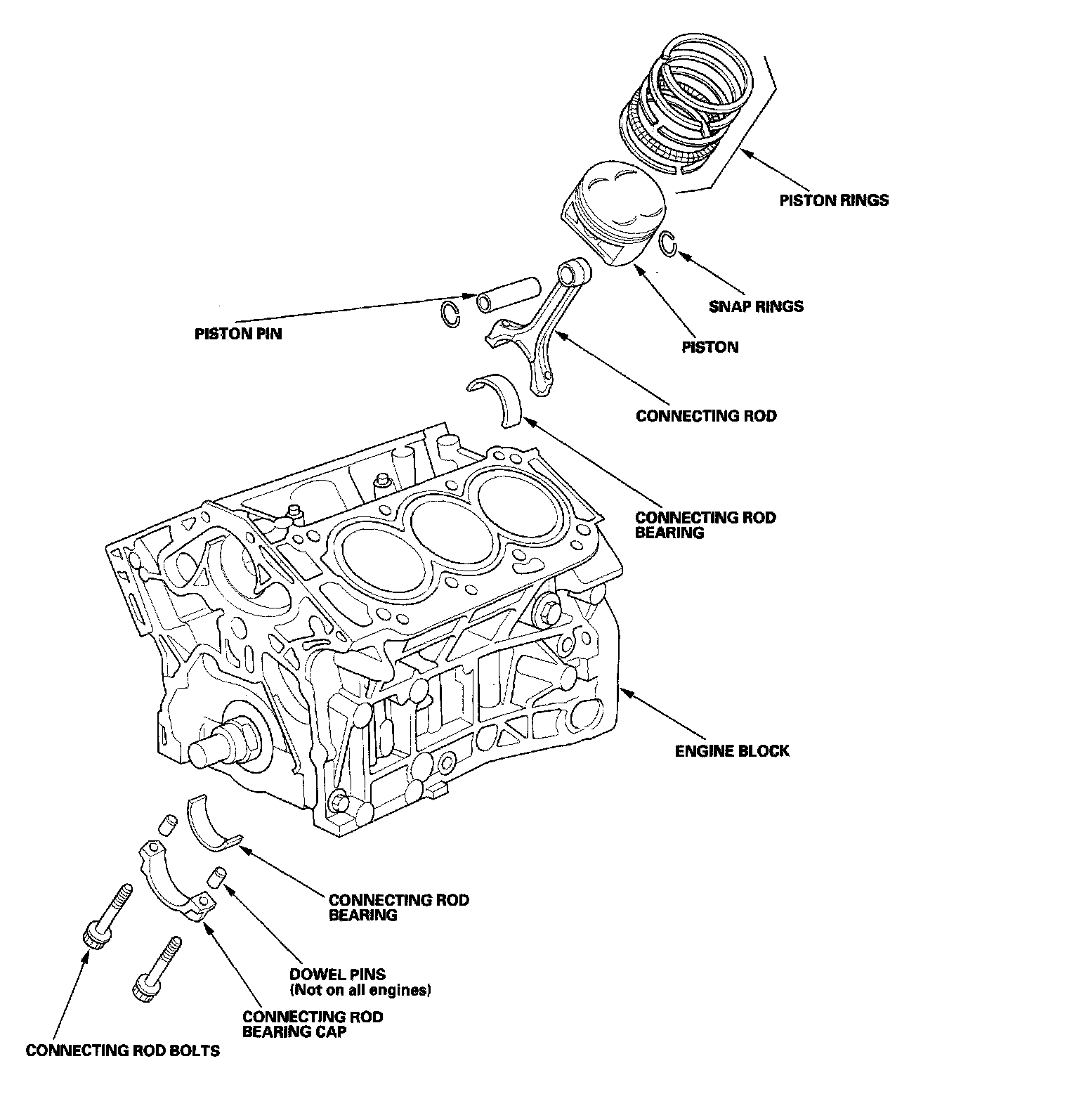

J35A7 Engine Component Location Index (continued):
