J35A6

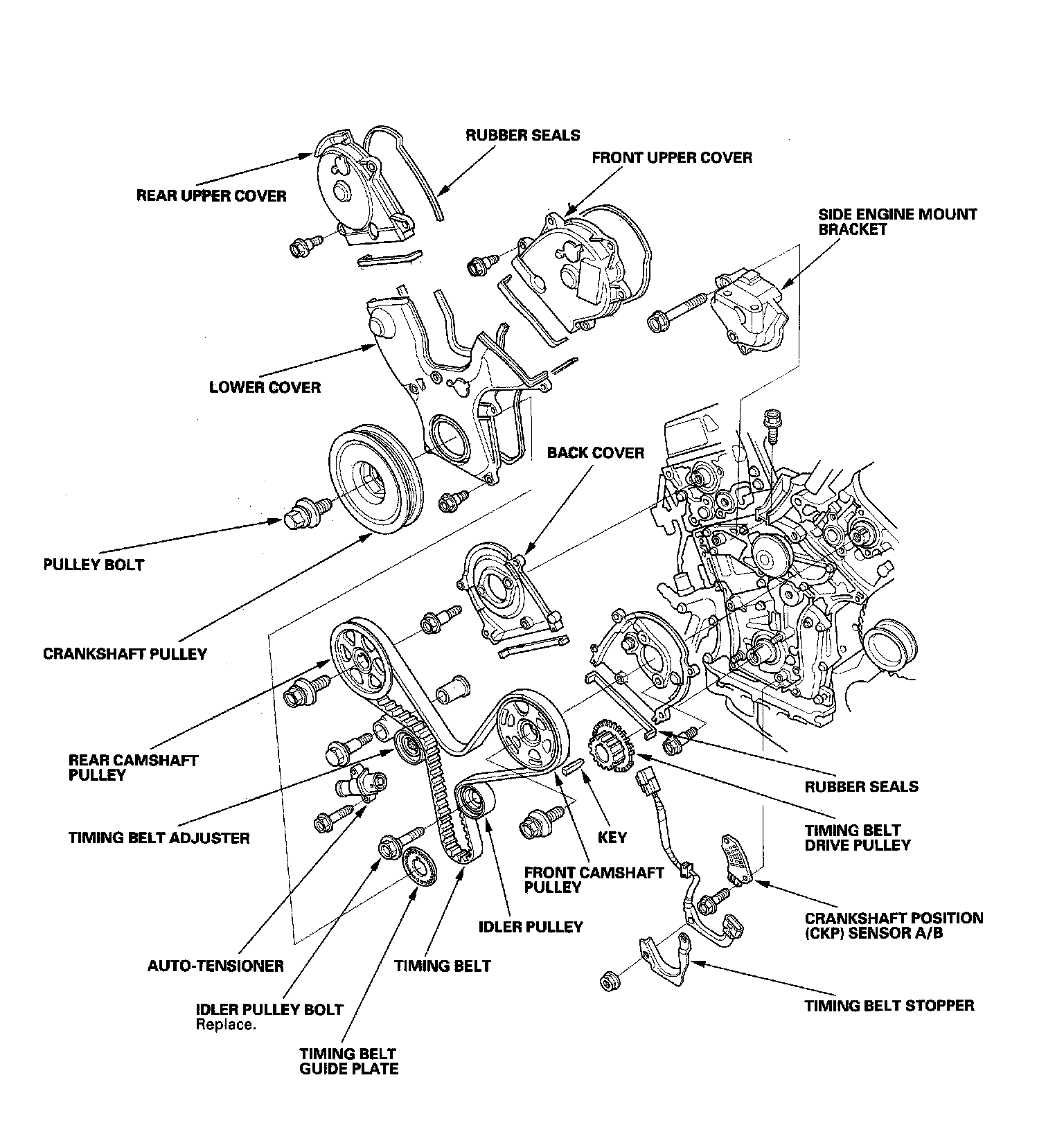

Engine Mechanical Component Location Index:

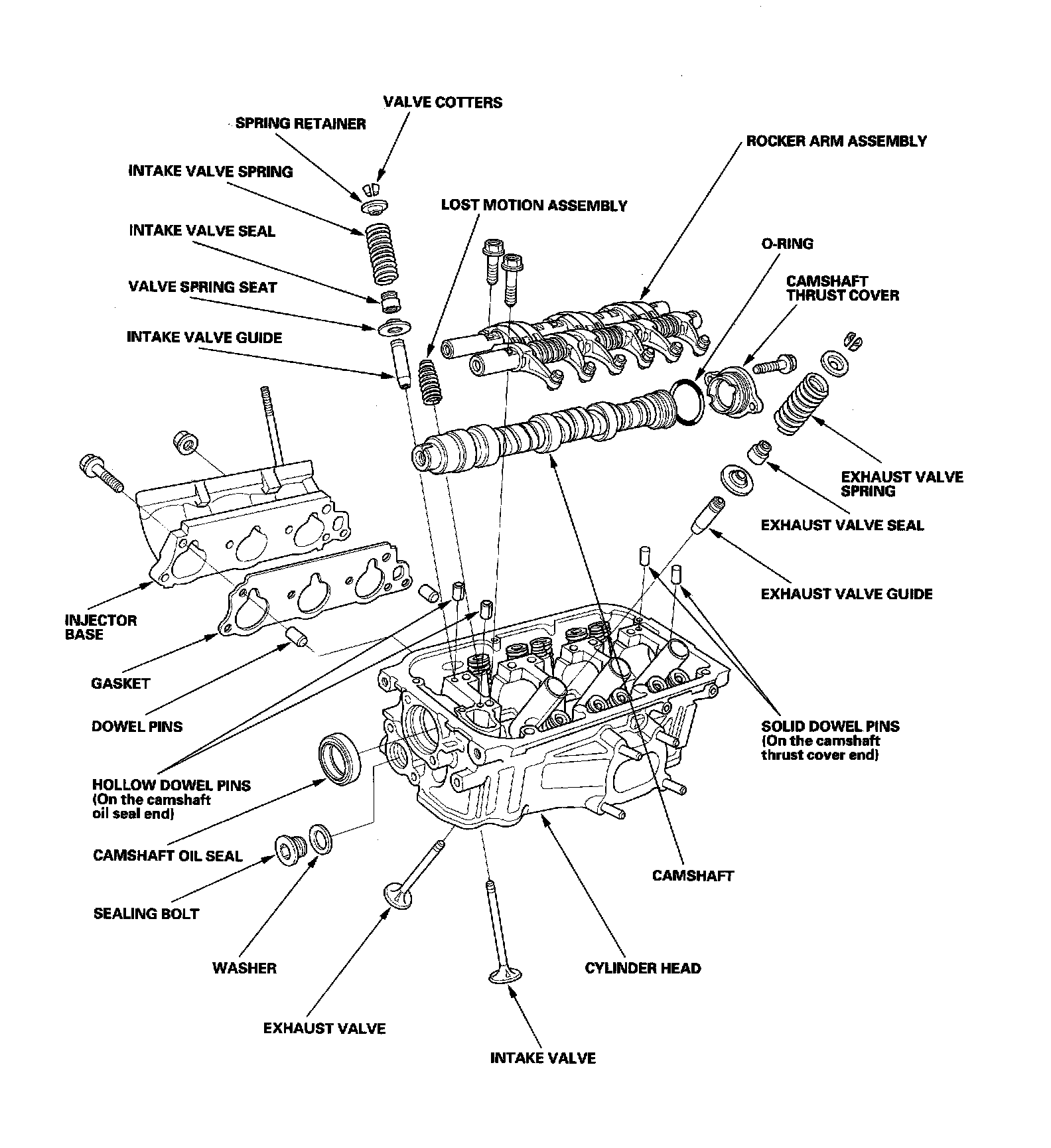

Engine Mechanical Component Location Index (continued):

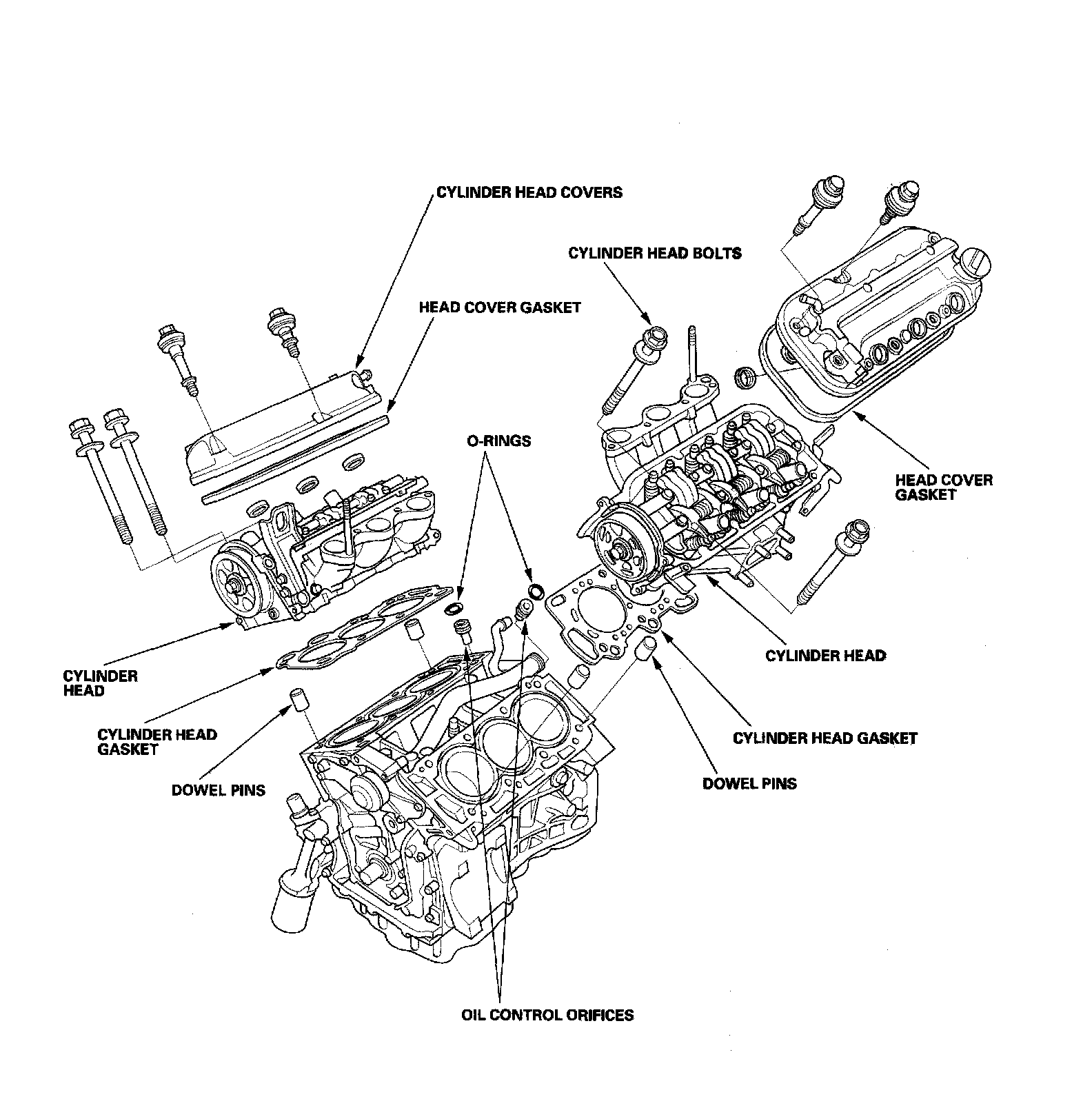

Engine Mechanical Component Location Index (continued):
