J35A7

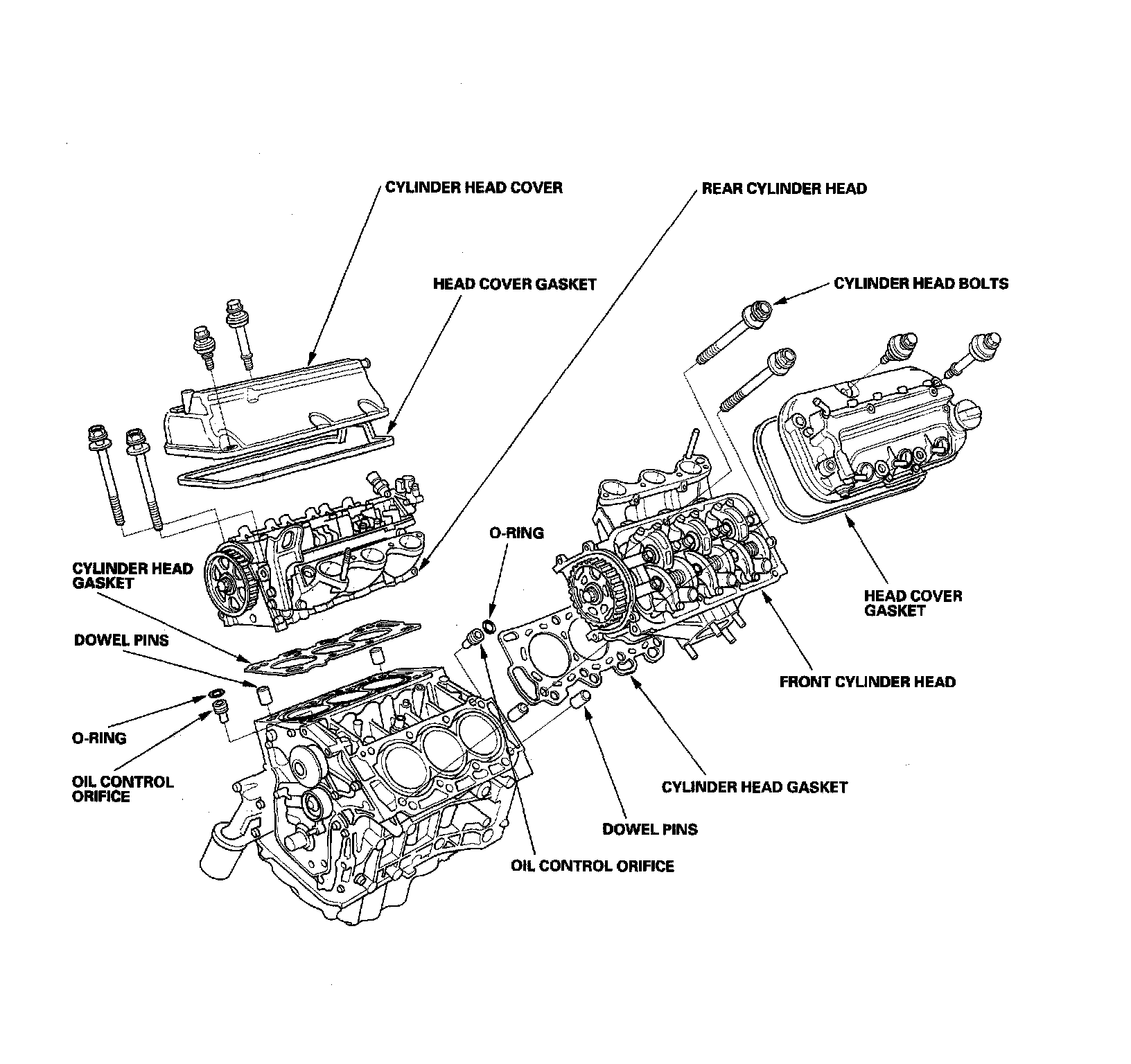

Engine Mechanical Component Location Index:

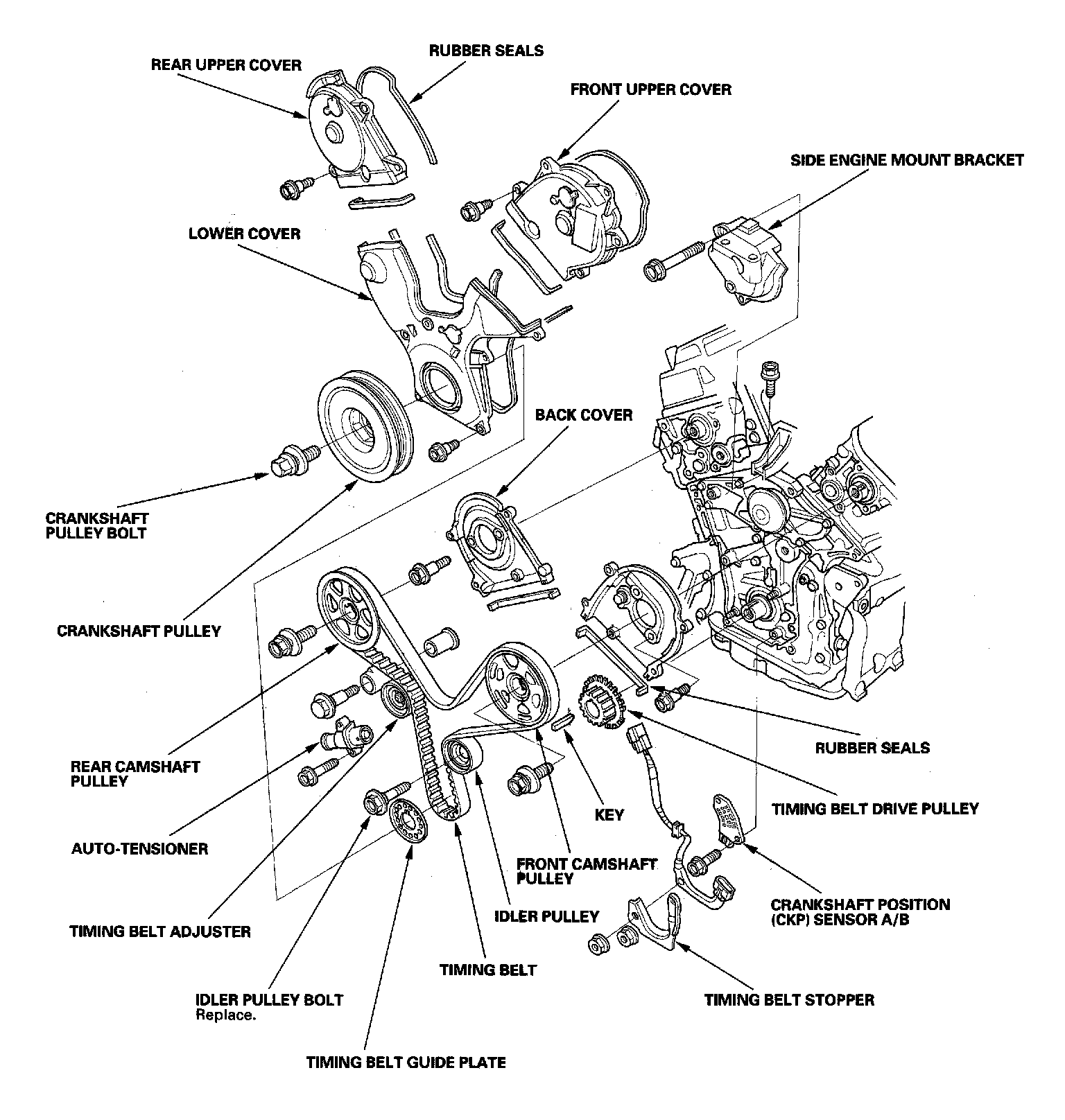

Engine Mechanical Component Location Index (continued):

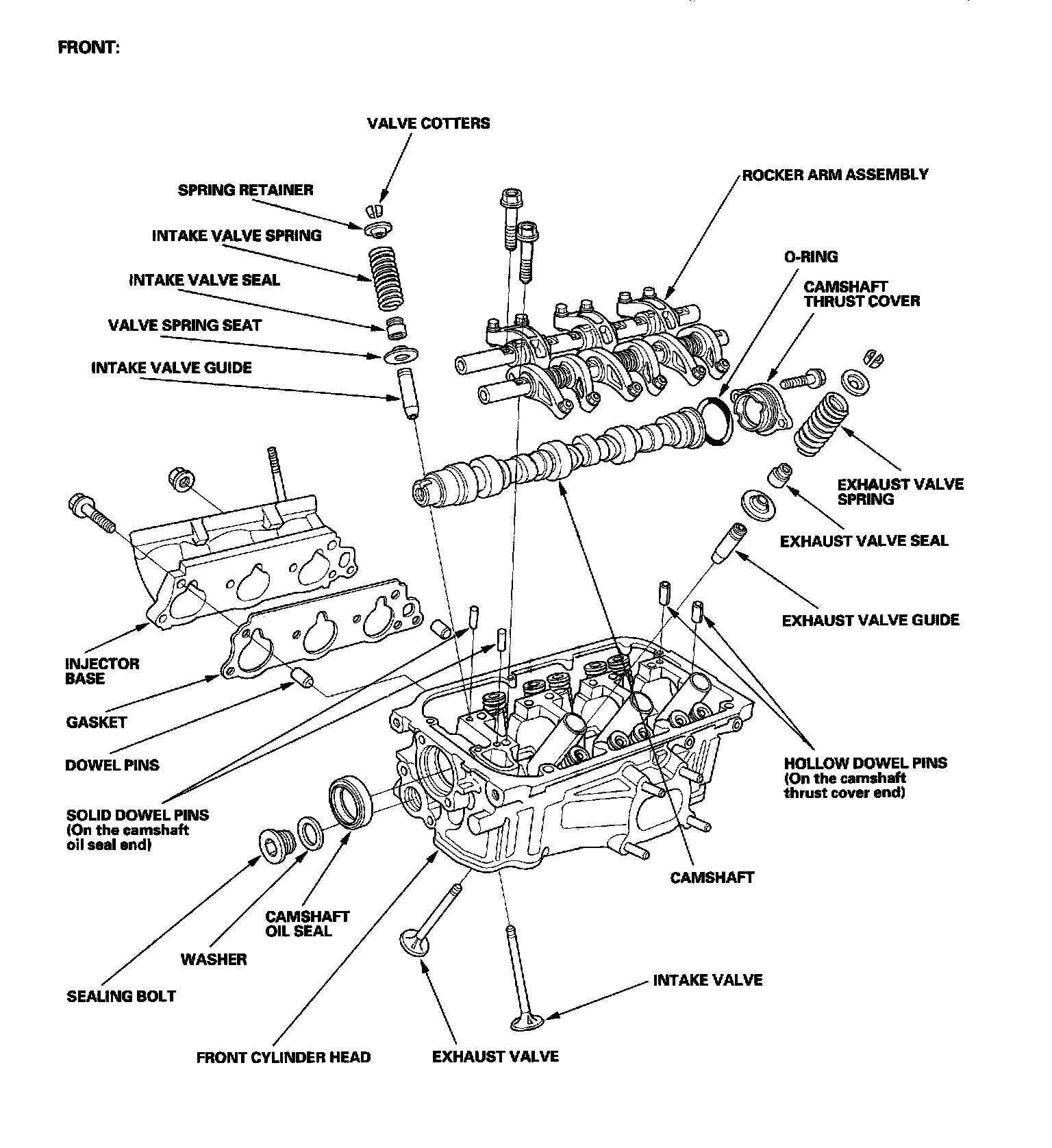

Engine Mechanical Component Location Index Front:

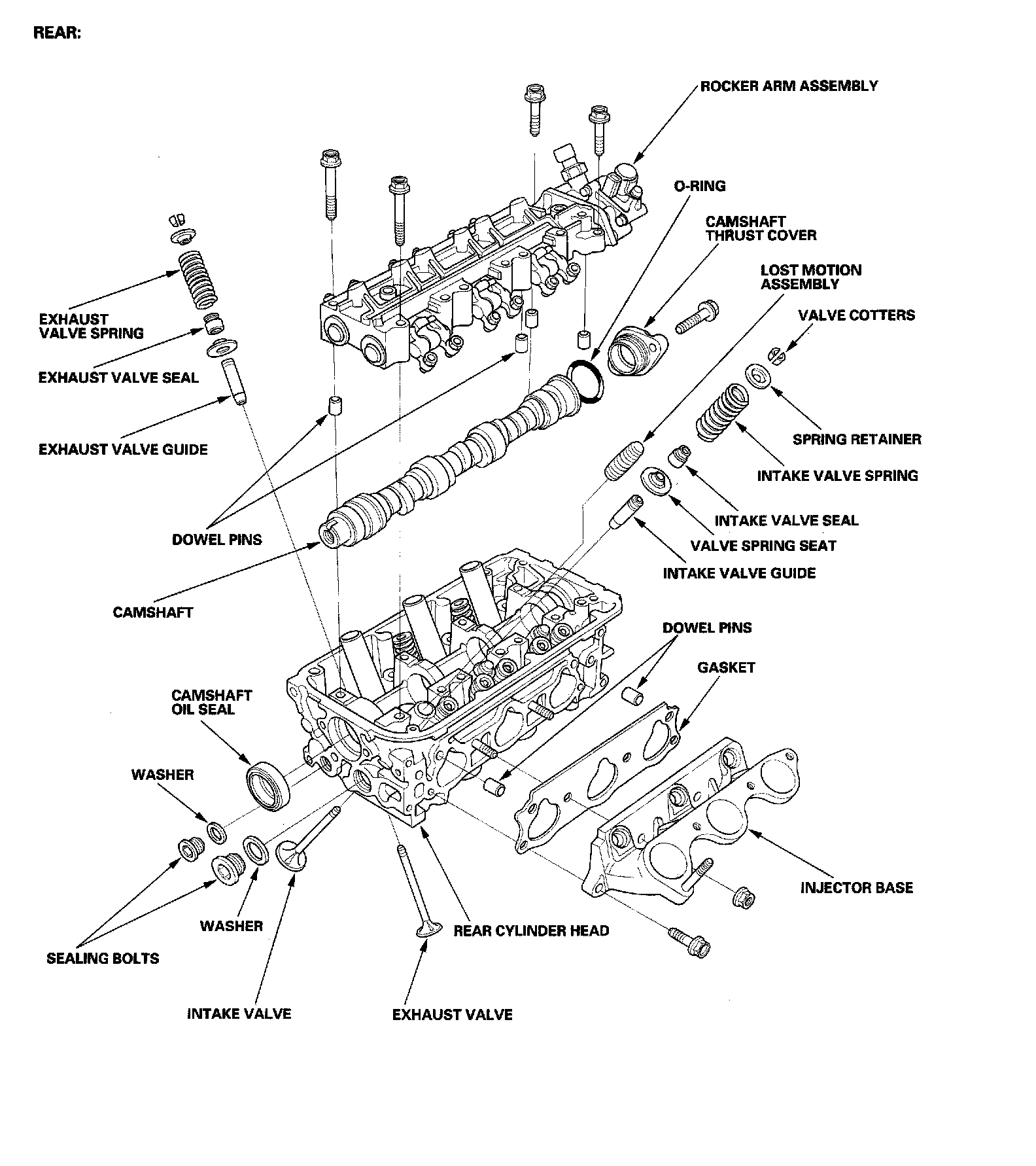

Engine Mechanical Component Location Index Rear:
