Engine Lubrication
>>
System Diagram
System Diagram

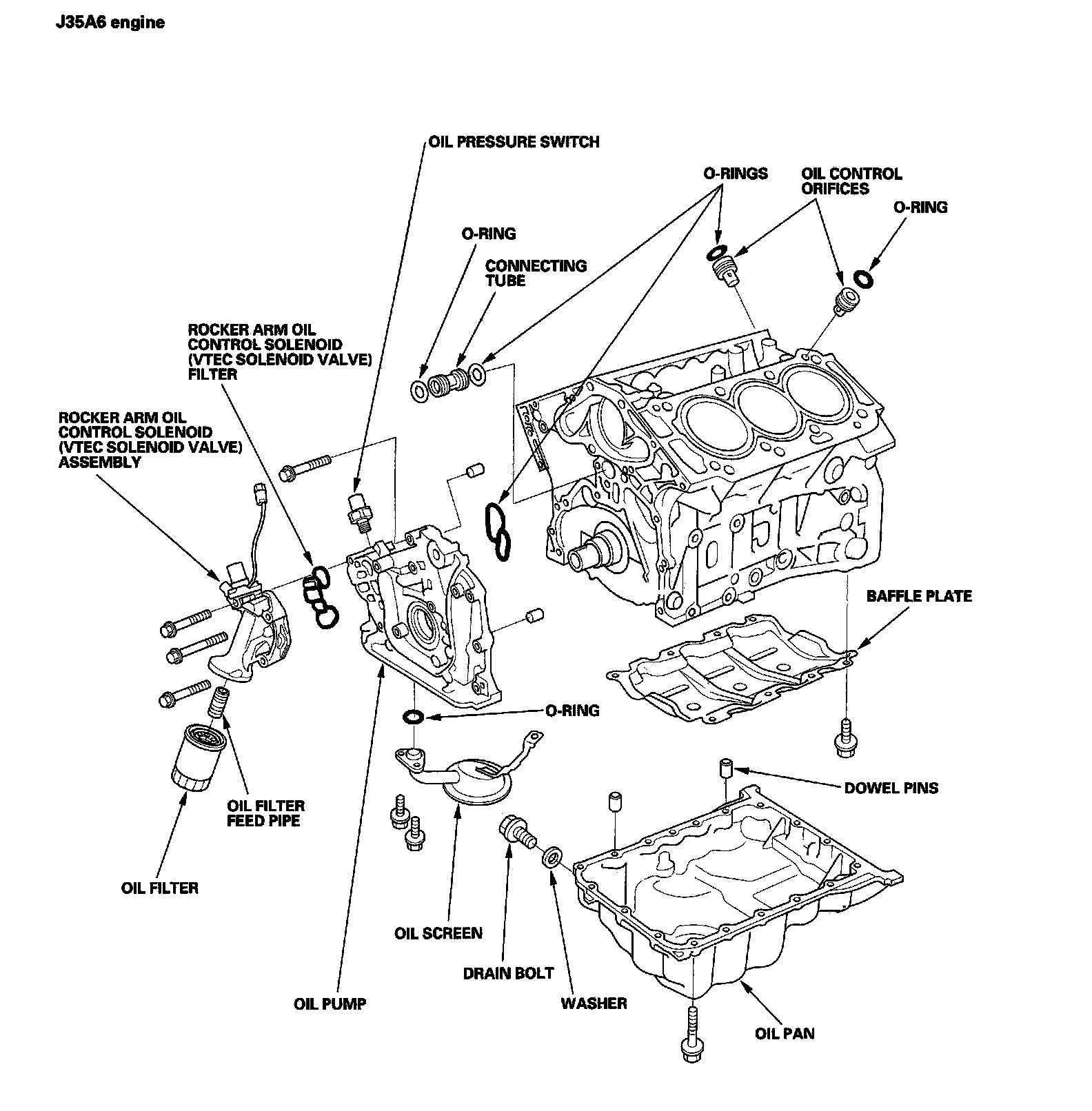

J35A6 Engine Component Location Index:

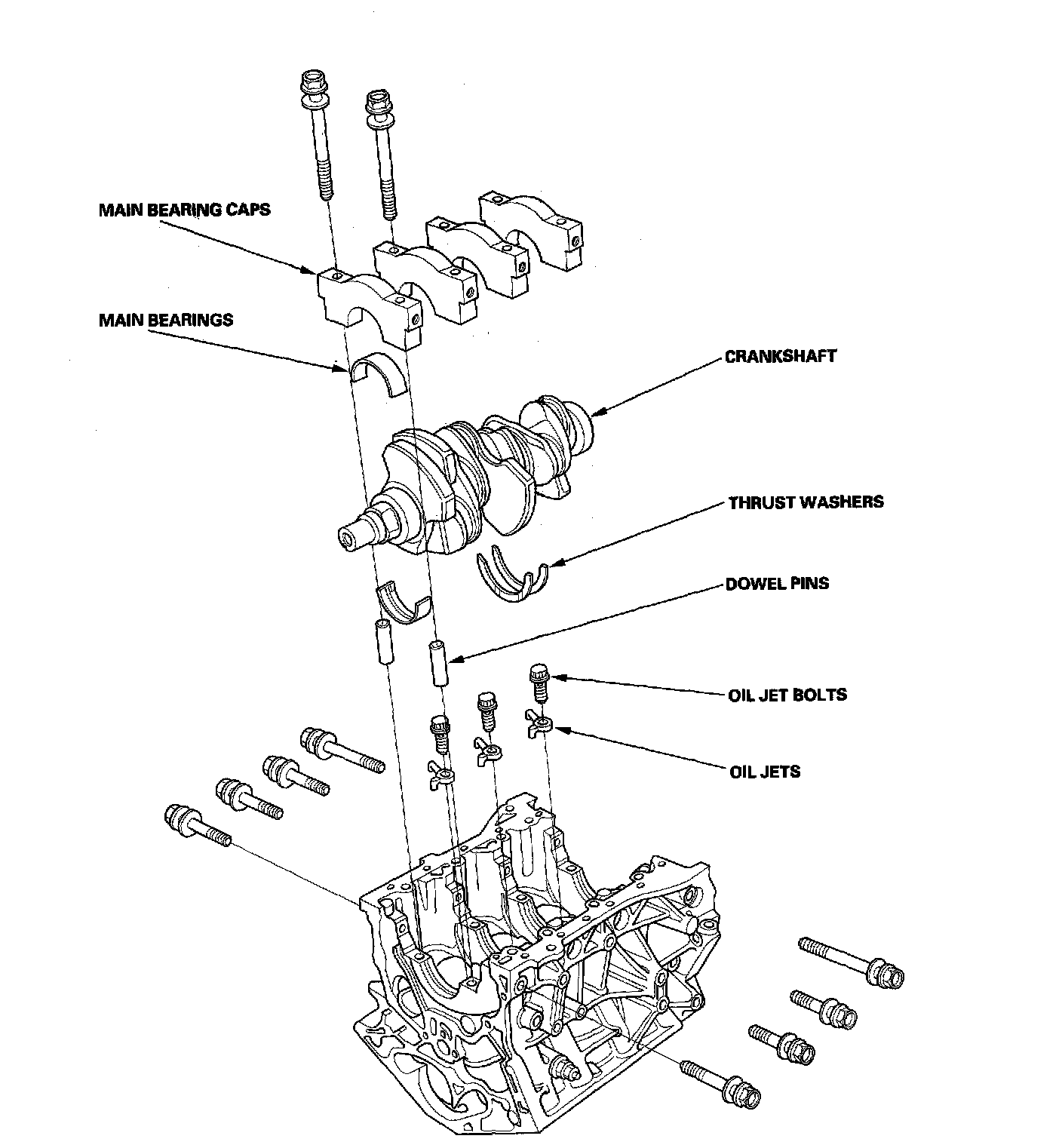

J35A7 Engine Component Location Index:
J35A7 Engine Component Location Index (continued):
