Seat Position Sensor Sub-Harness (VAN And LX Models)
Seat Position Sensor Sub-Harness (VAN And LX Models)

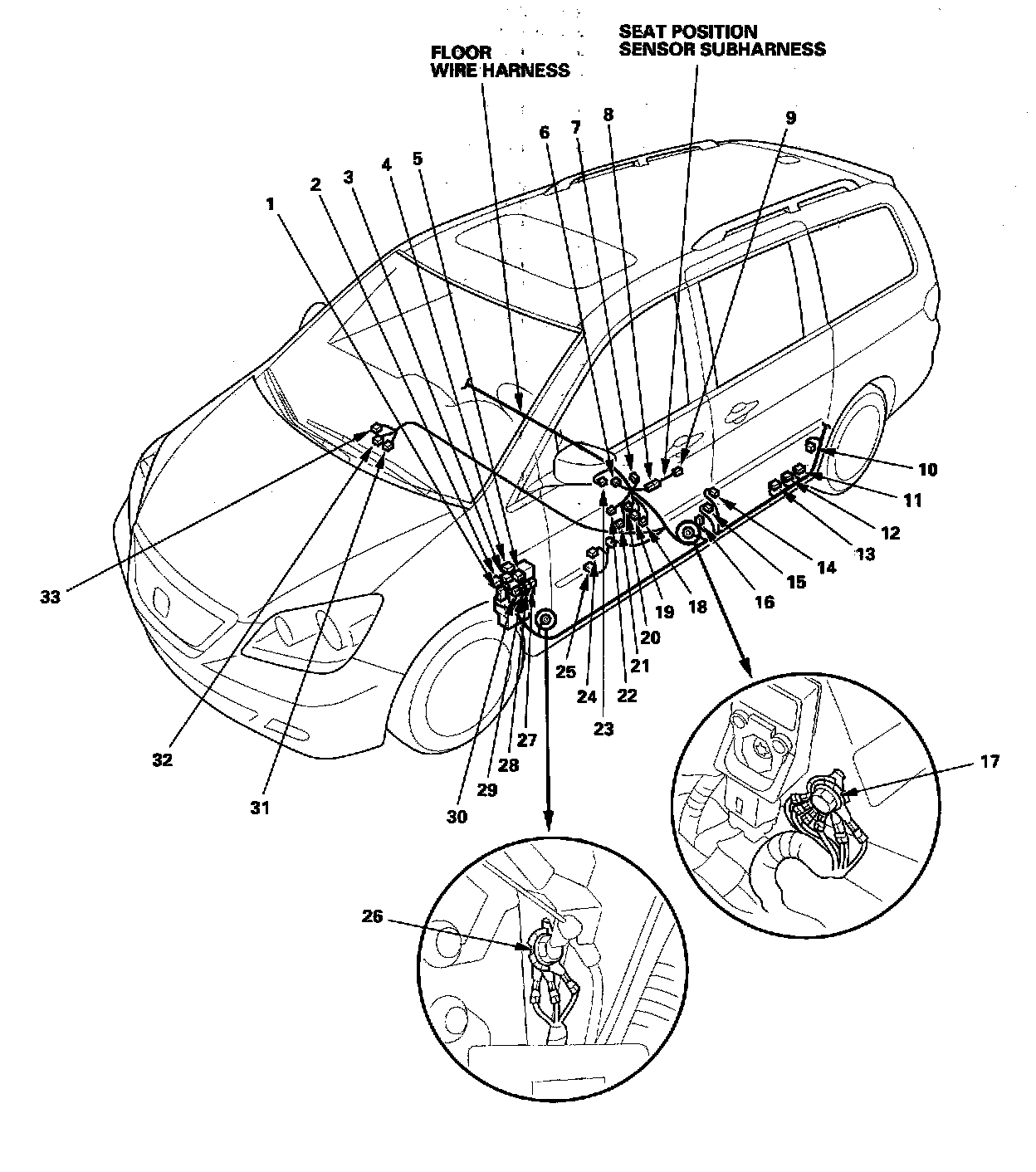

Harness Location View:

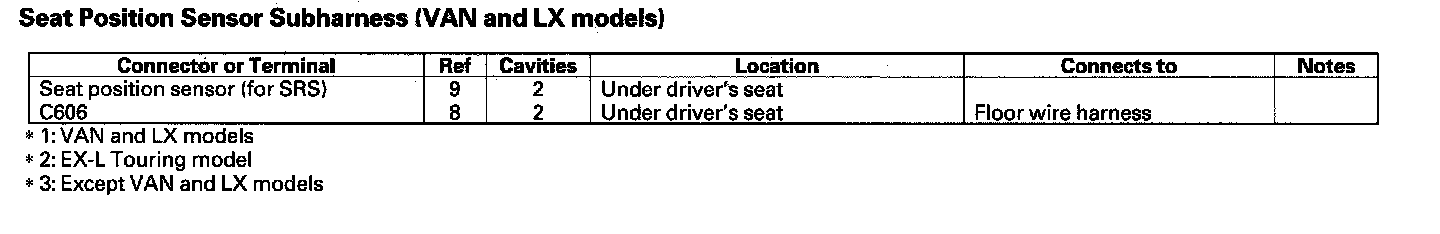

Seat Position Sensor Subharness (VAN And LX Models):
