Blower Motor: Locations

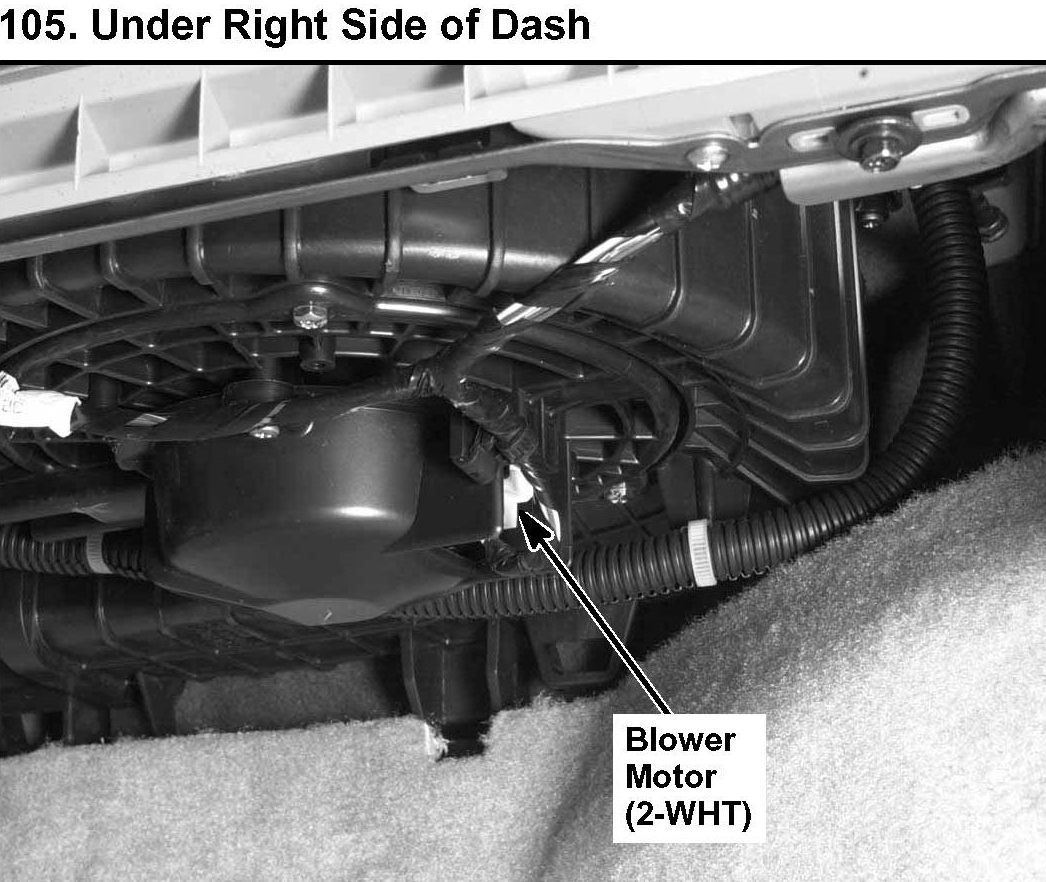

105. Under Right Side of Dash:

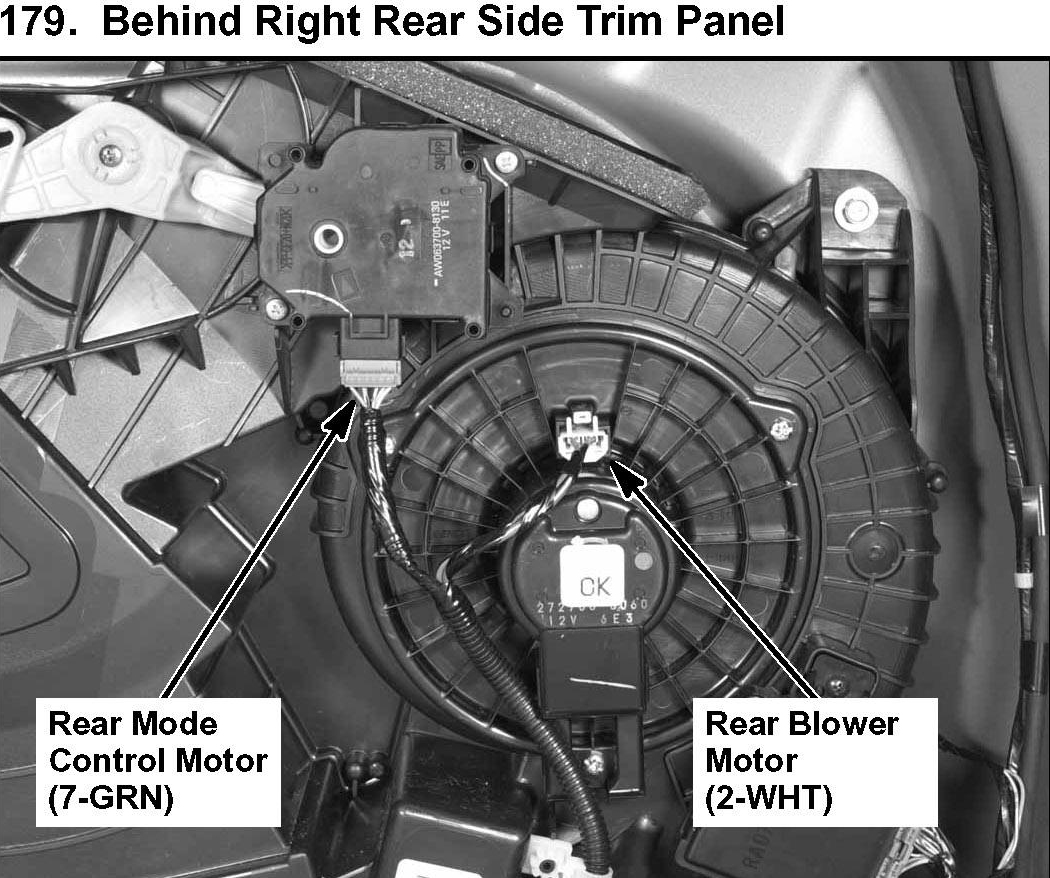

179. Behind Right Rear Side Trim Panel:



Climate Control - Component Location Index:



Rear Air Conditioning - Component Location Index:



Heating/Air Conditioning - Component Location Index:
