Heating and Air Conditioning: Locations

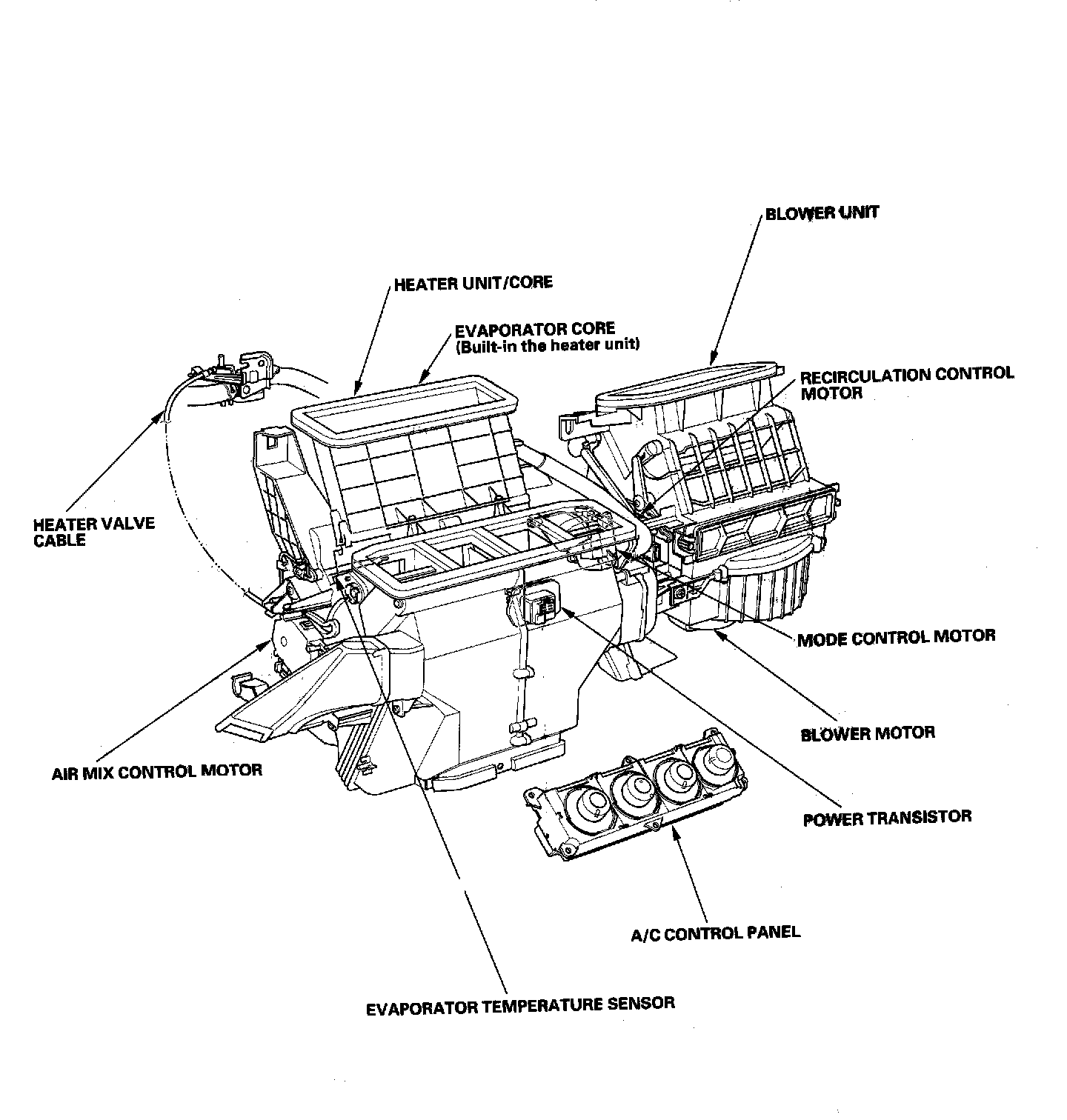

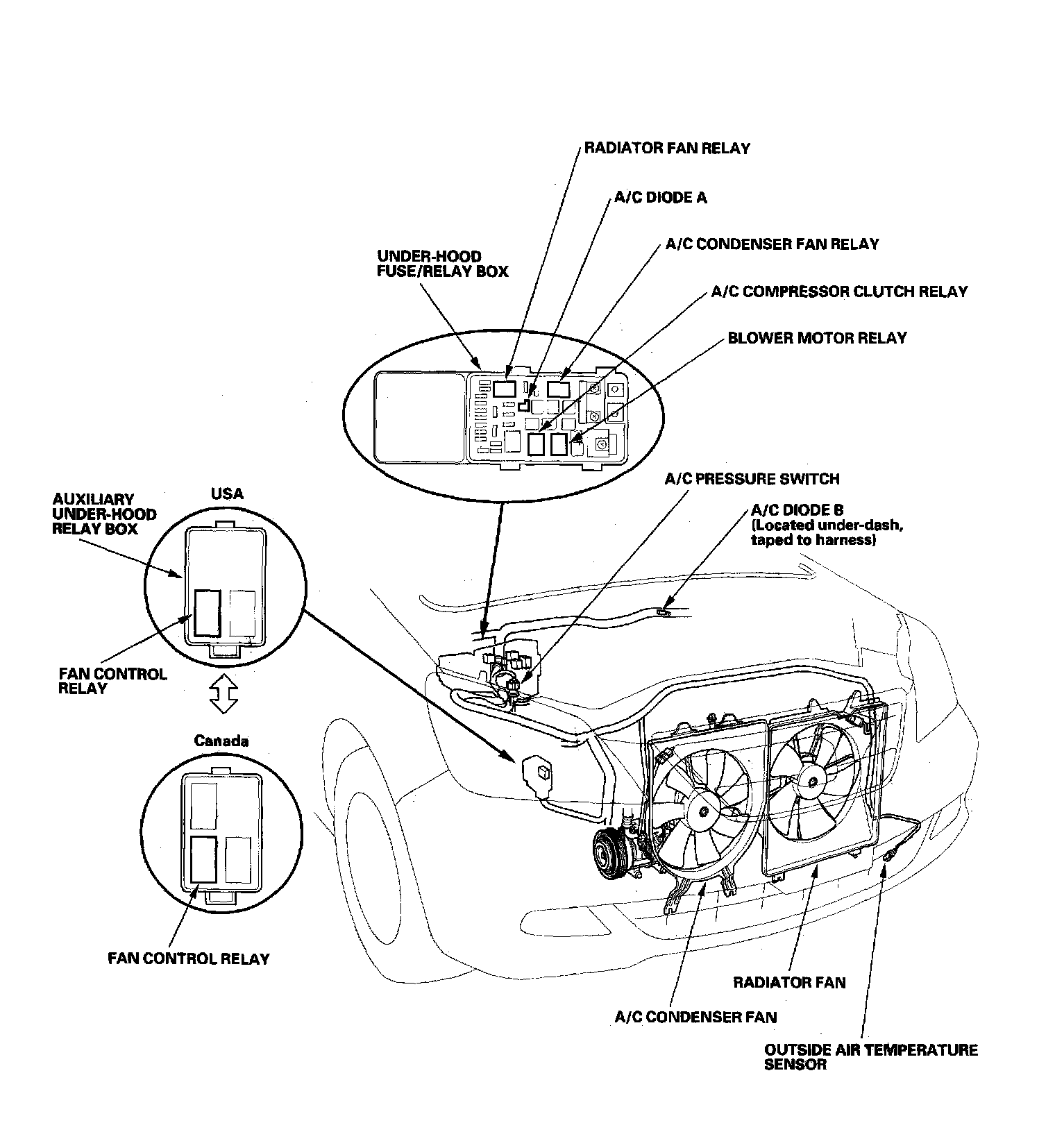

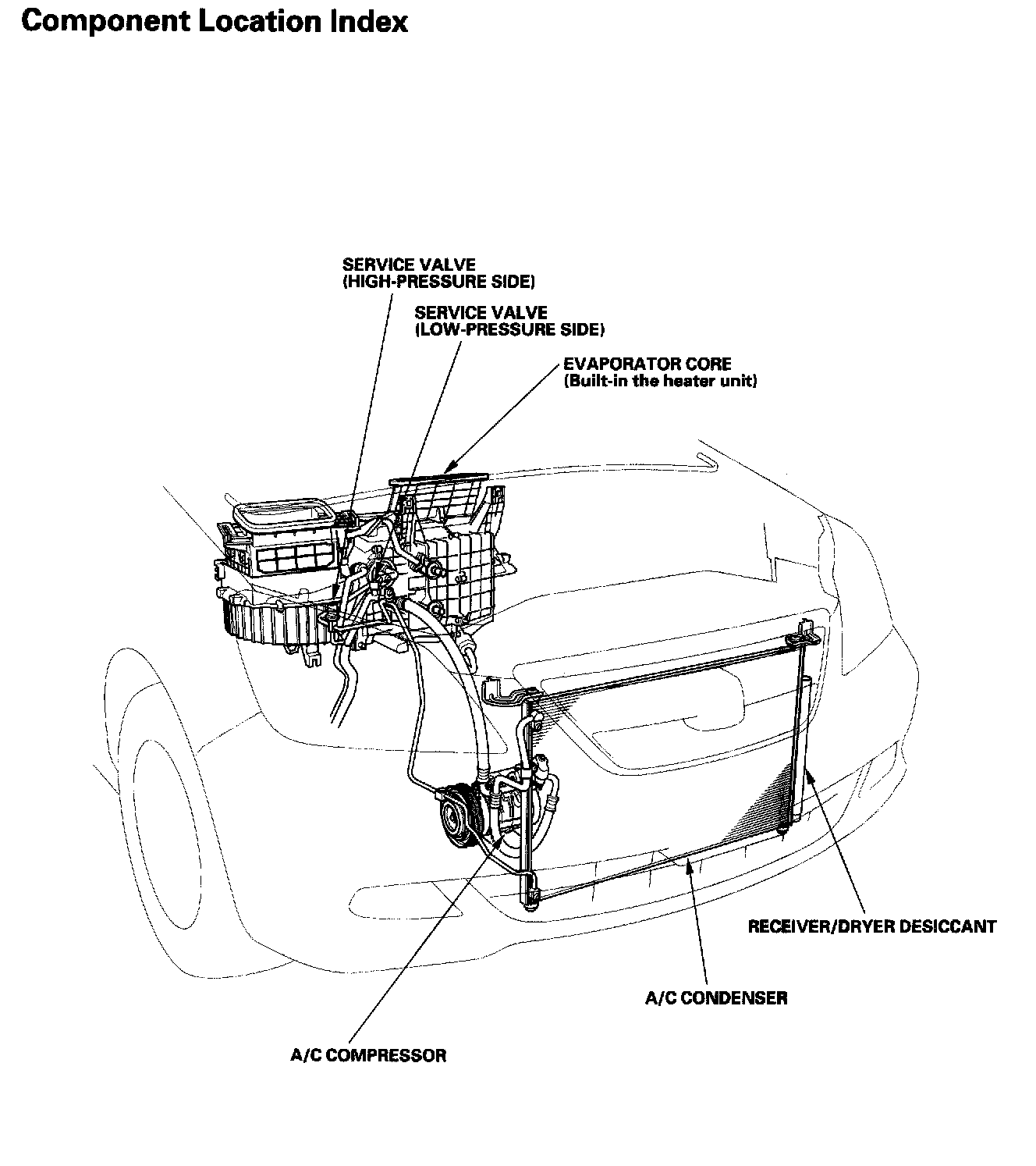

Heating/Air Conditioning - Component Location Index:

Heating/Air Conditioning - Component Location Index:

Heating/Air Conditioning - Component Location Index:

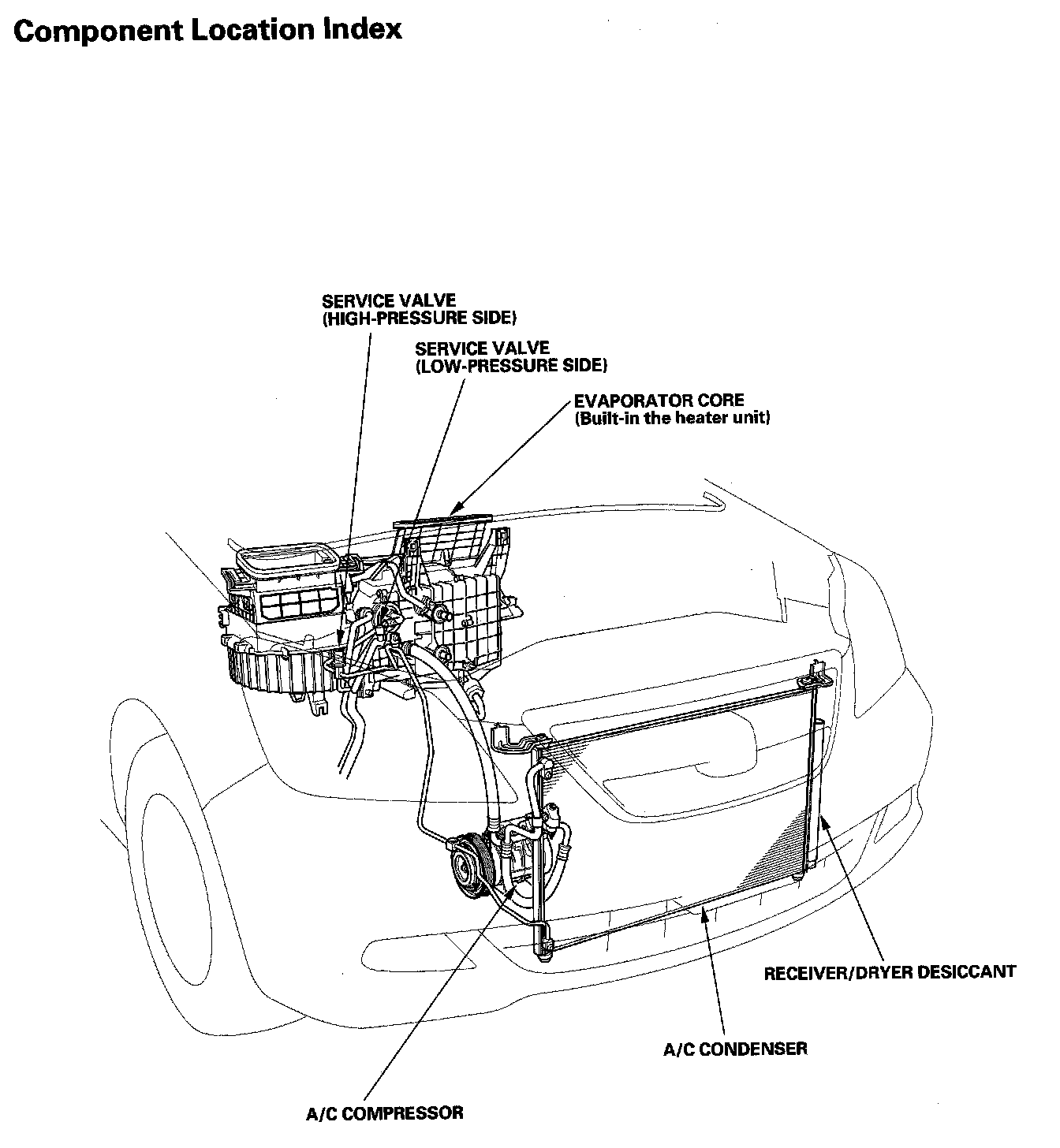

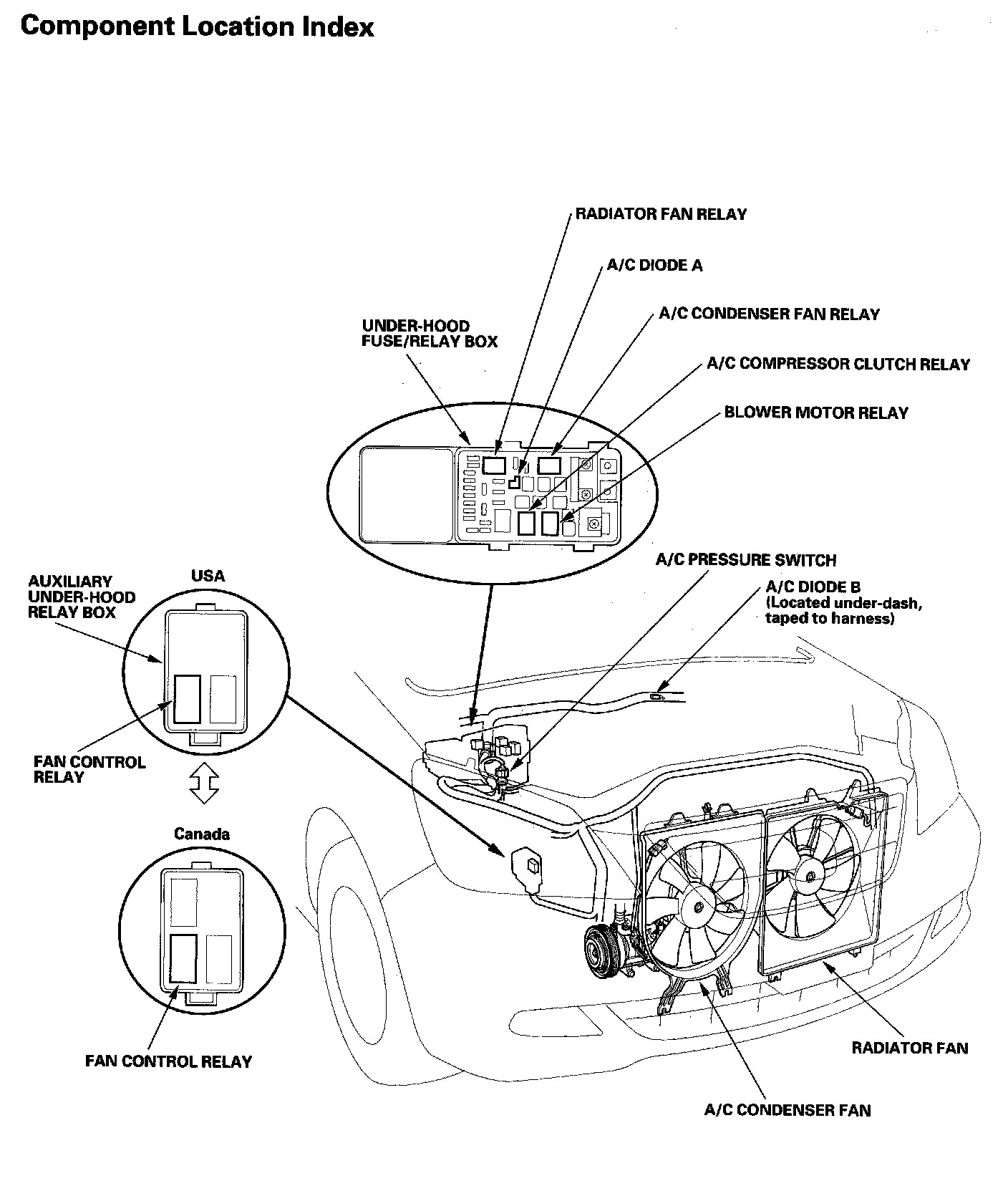

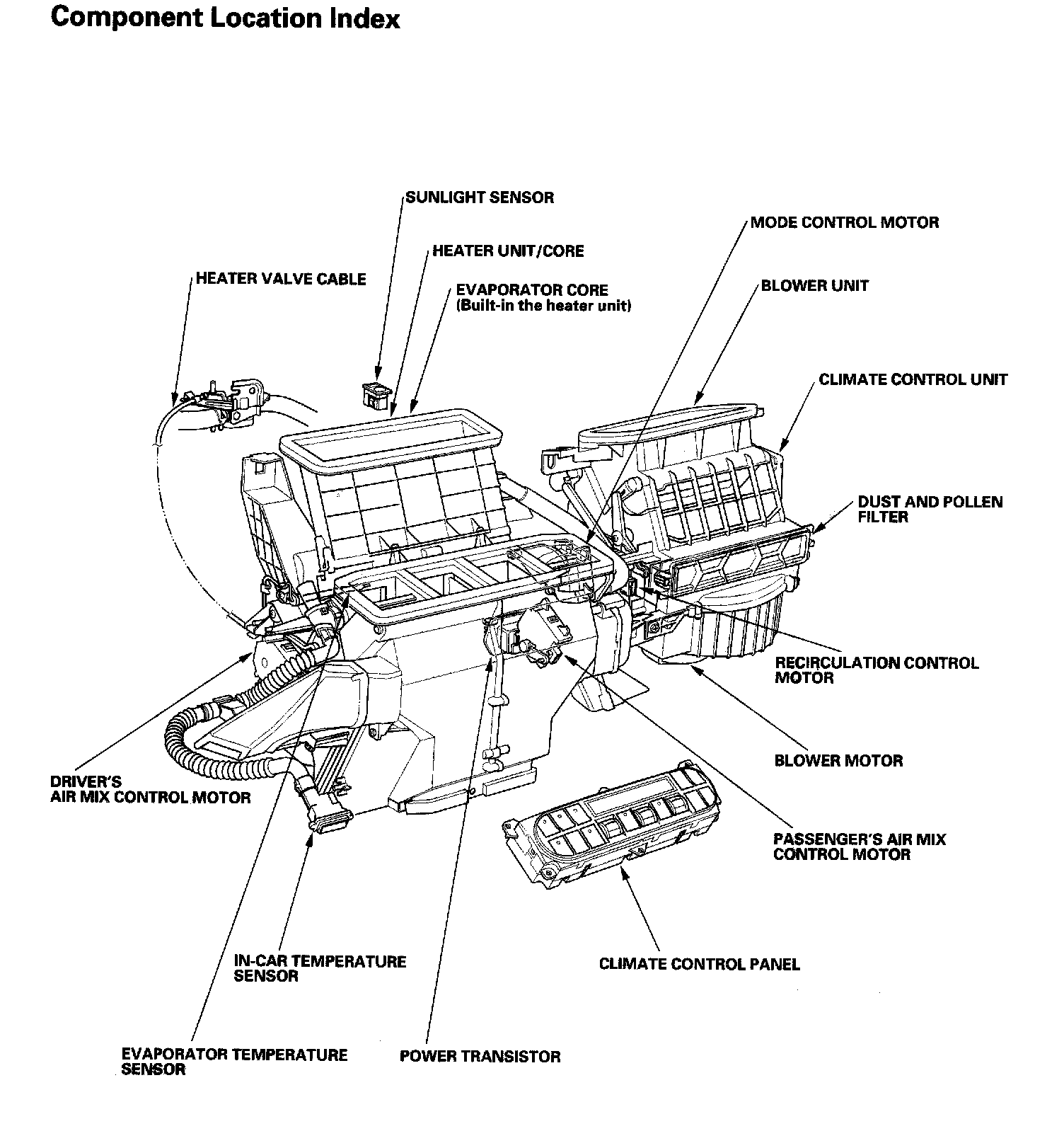

Climate Control - Component Location Index:

Climate Control - Component Location Index:

Climate Control - Component Location Index:

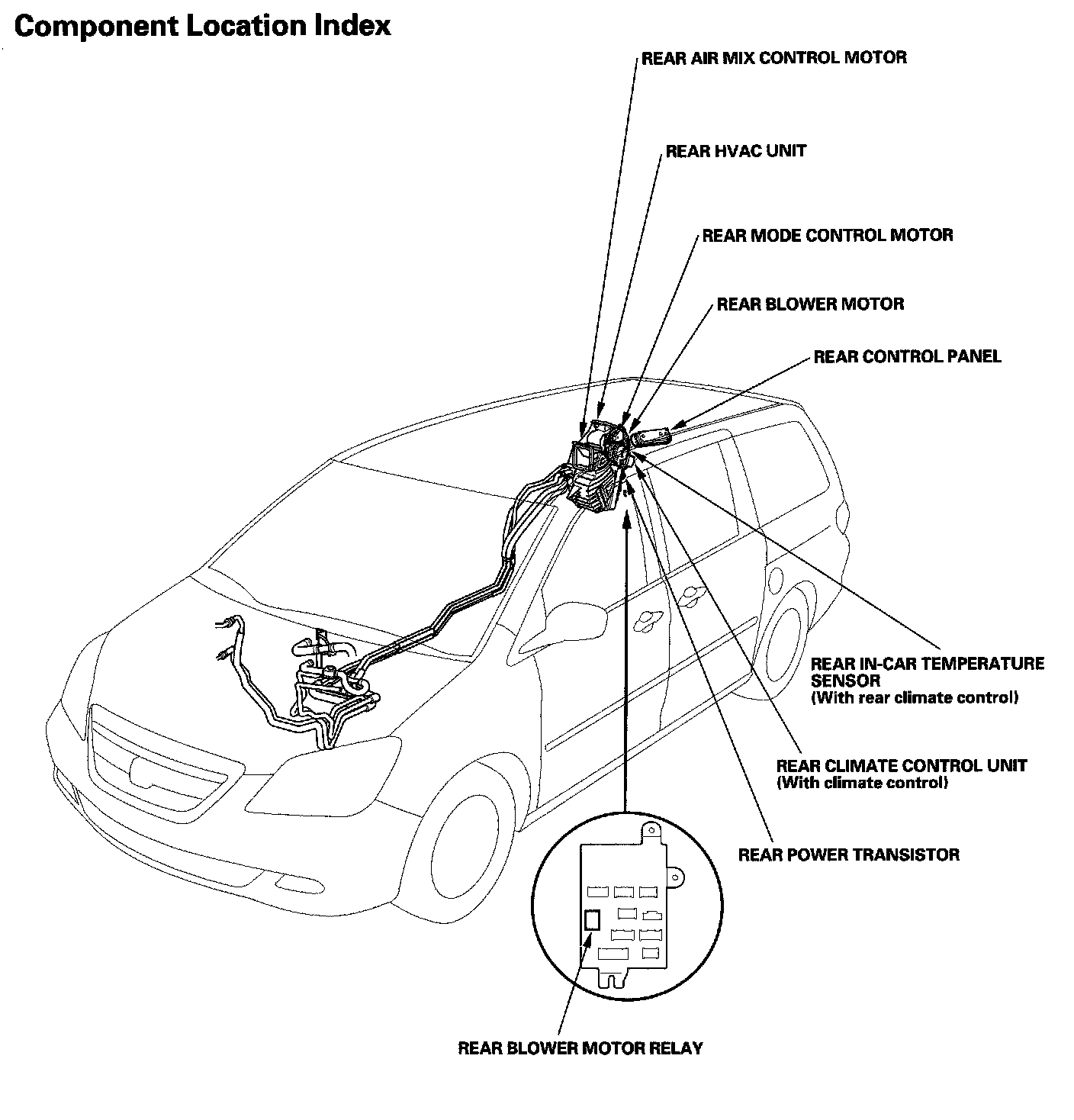

Rear Air Conditioning - Component Location Index:
