Cargo Lamp: Service and Repair

Cargo Area Light Test/Replacement

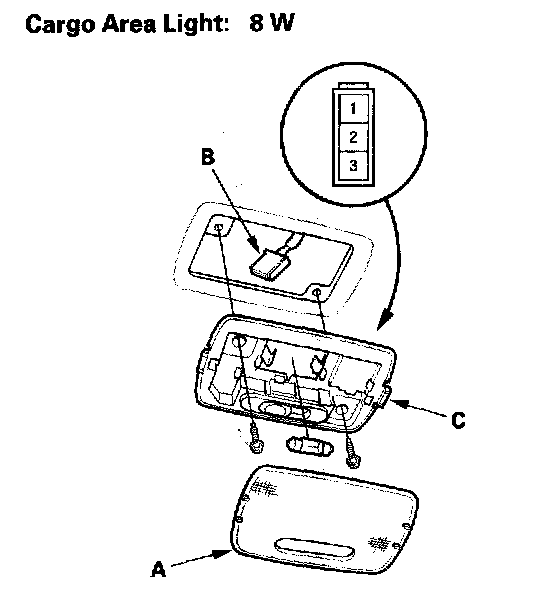

1. Turn the light switch OFF.




2. Carefully pry off the lens (A) with a small screwdriver.
3. Remove the two mounting screws.
4. Disconnect the 3P connector (B) from the housing (C).
5. Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals with the switch in the MIDDLE position.
- There should be continuity between the No.2 and No.3 (Body ground) terminals with the switch in the ON position.

6. Install in the reverse order of removal.
