Fog/Driving Lamp: Service and Repair

Fog Light Replacement

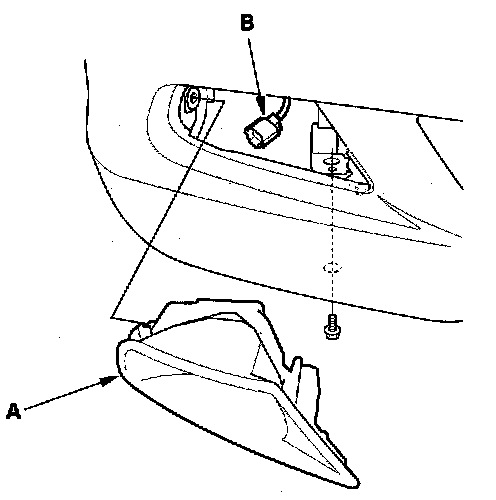

1. Remove the bolt from the fog light (A).
2. Disconnect the 2P connector (B) from the light.

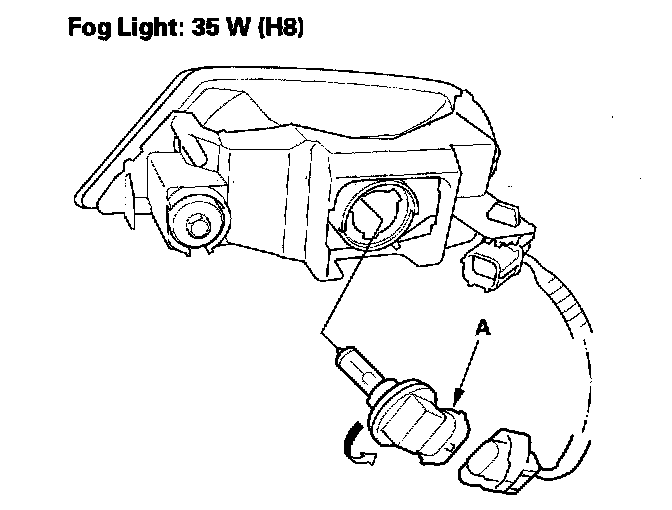

3. Turn the bulb socket (A) 45 degrees counterclockwise to remove it from the housing.
4. Install the fog light in the reverse order of removal.
5. After replacement, adjust the fog lights to local requirements.
