Entry Light Control System Circuit Diagram
Entry Light Control System Circuit Diagram

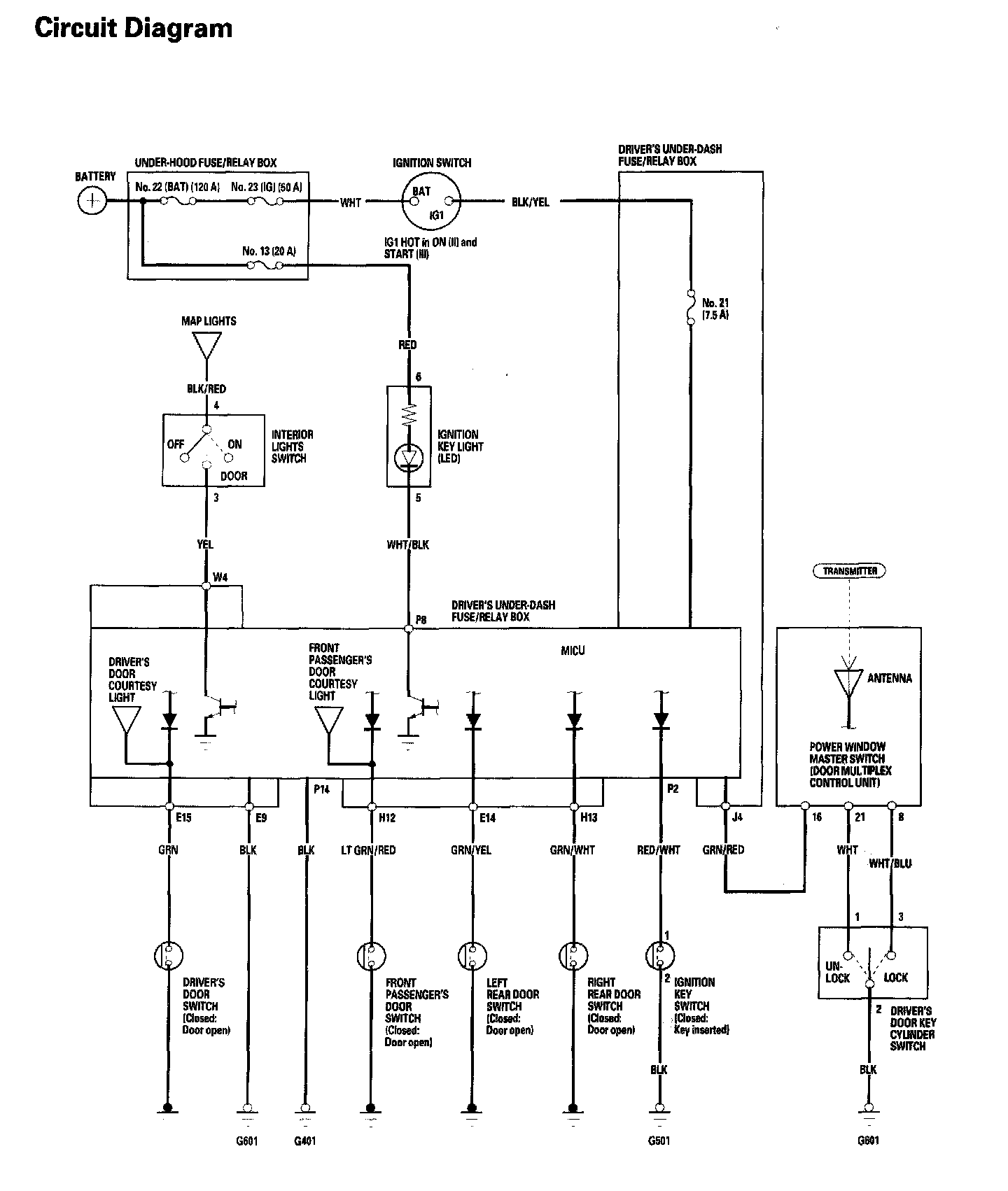

Entry Lights Control System - Circuit Diagram:
