Rear Individual Map Light Test/Replacement

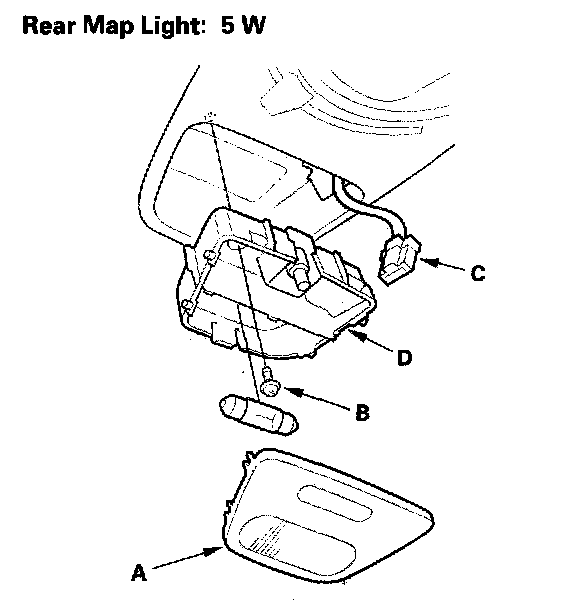

1. Carefully pry off the lens (A) with a small screwdriver.
2. Remove the mounting screw (B).
3. Disconnect the 3P connector (C) from the housing (D).
4. Check for continuity between the terminals.
- There should be continuity between the No.2 and No.3 terminals with the switch ON.
- There should be continuity between the No.1 and No.2 terminals with the switch OFF.

5. If the continuity is not as specified, check the bulb. If the bulb are OK, replace the light.
