License Plate Light Sub-Harness
License Plate Light Sub-Harness

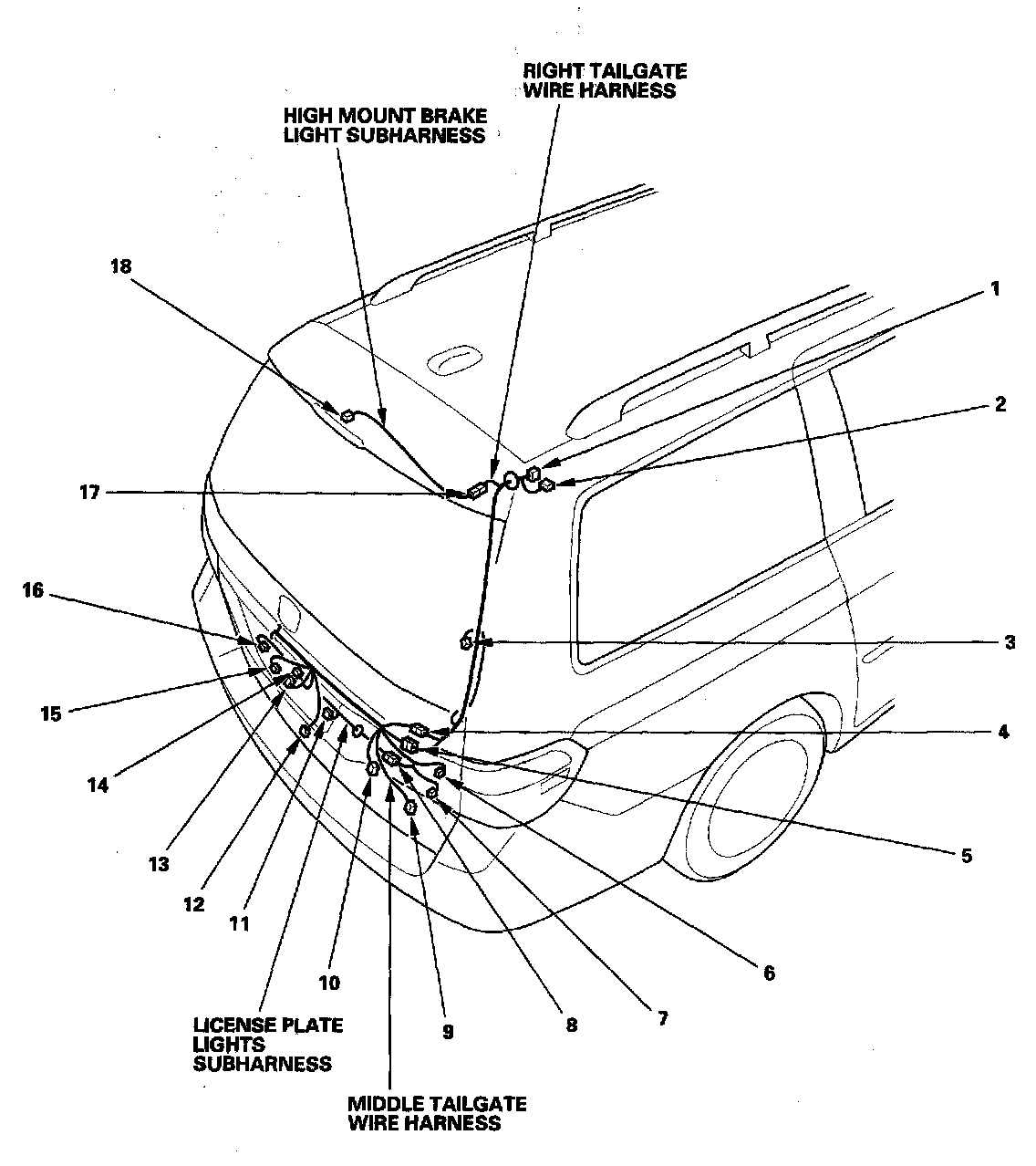

Harness Location View:

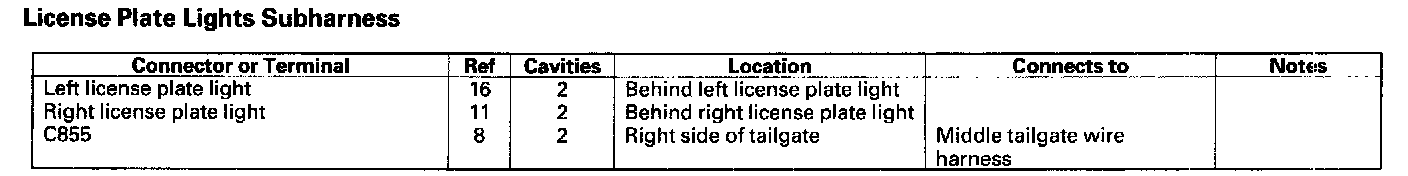

License Plate Lights Subharness:
Harness Location View:

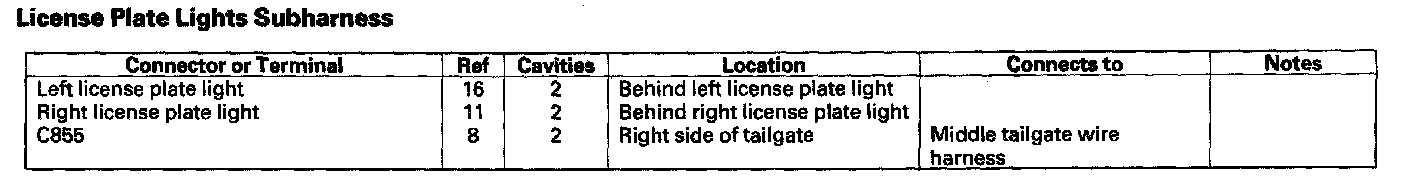

License Plate Lights Subharness:
Harness Location View:

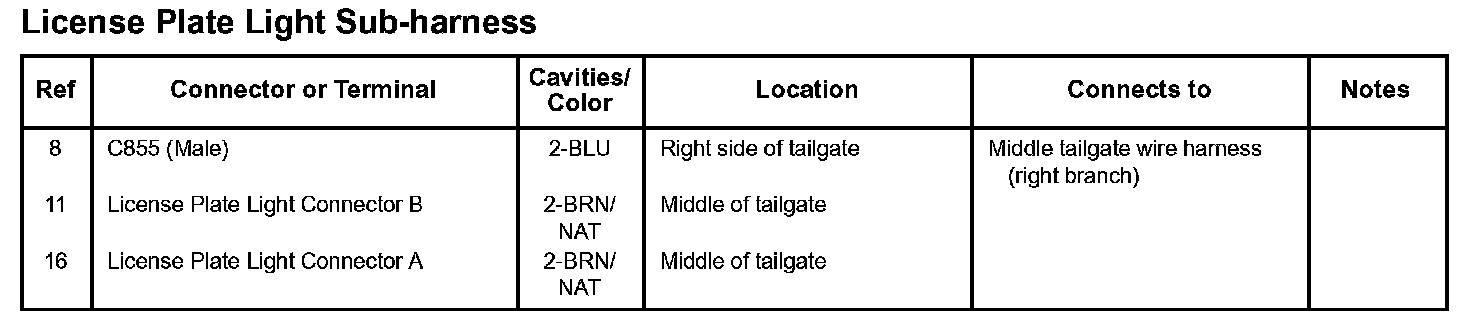

License Plate Light Sub-harness:
