Auxiliary Power Outlet: Locations

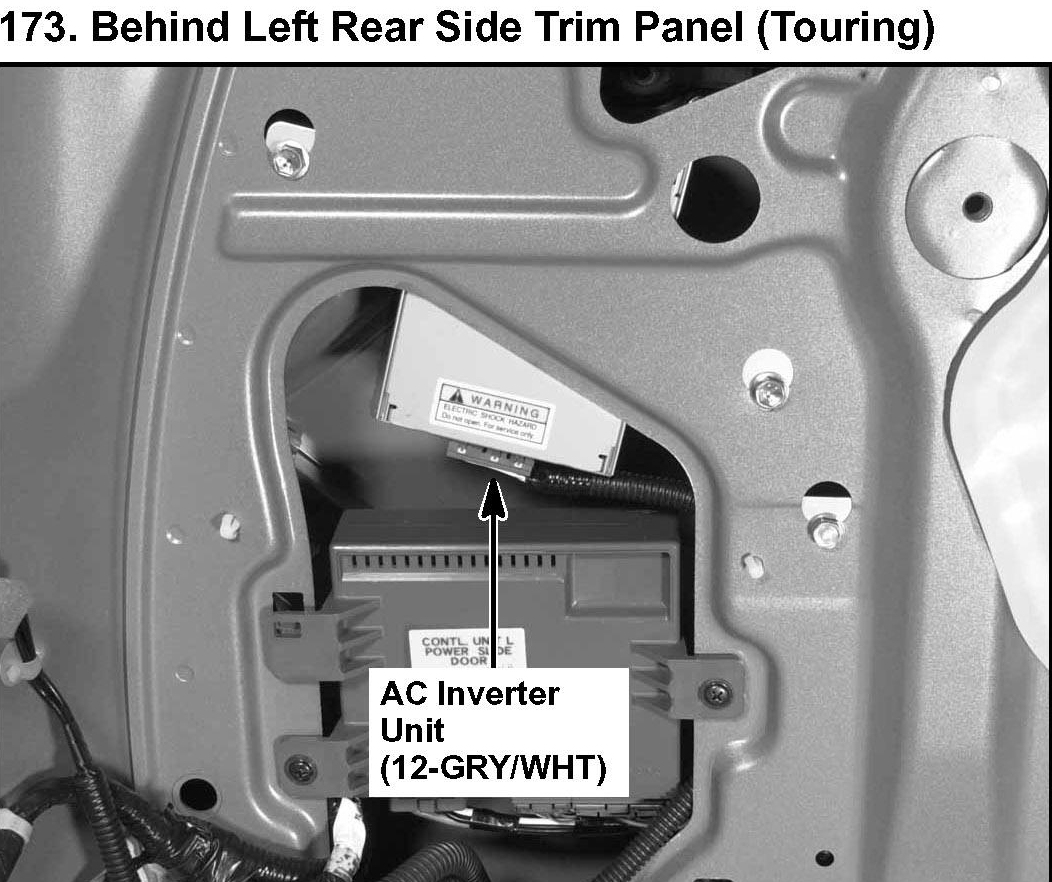

173. Behind Left Rear Side Trim Panel (Touring):

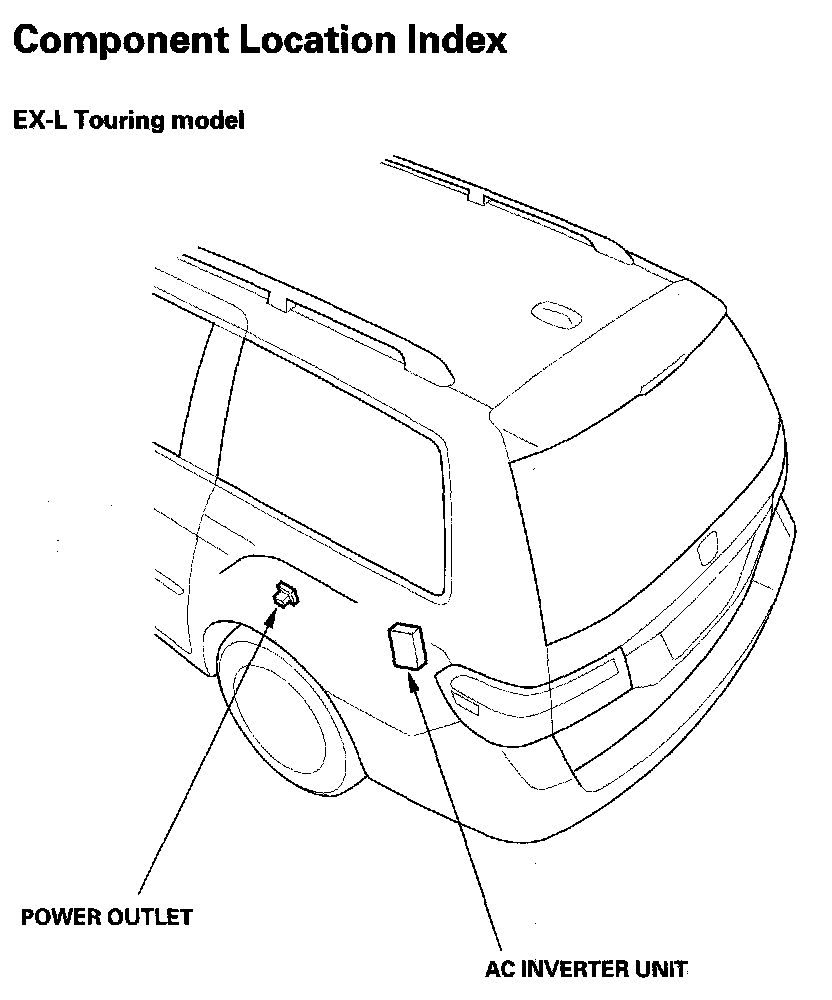

Accessory Power Sockets - Component Location Index:



AC Power Outlet - Component Location Index:
