Power Outlet Replacement
Power Outlet ReplacementEX-L Touring model
1. Remove the left rear side trim panel.

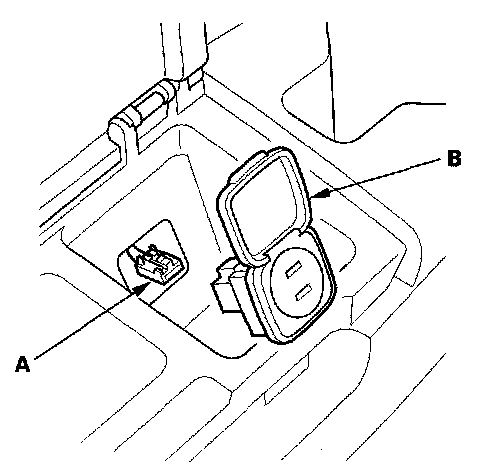

2. Disconnect the 3P connector (A) from the power outlet (B).
3. Remove the power outlet.
4. Install it in the reverse order of removal.
EX-L Touring model
1. Remove the left rear side trim panel.
2. Disconnect the 3P connector (A) from the power outlet (B).
3. Remove the power outlet.
4. Install it in the reverse order of removal.
