Driver's Under-Dash Fuse/Relay Box

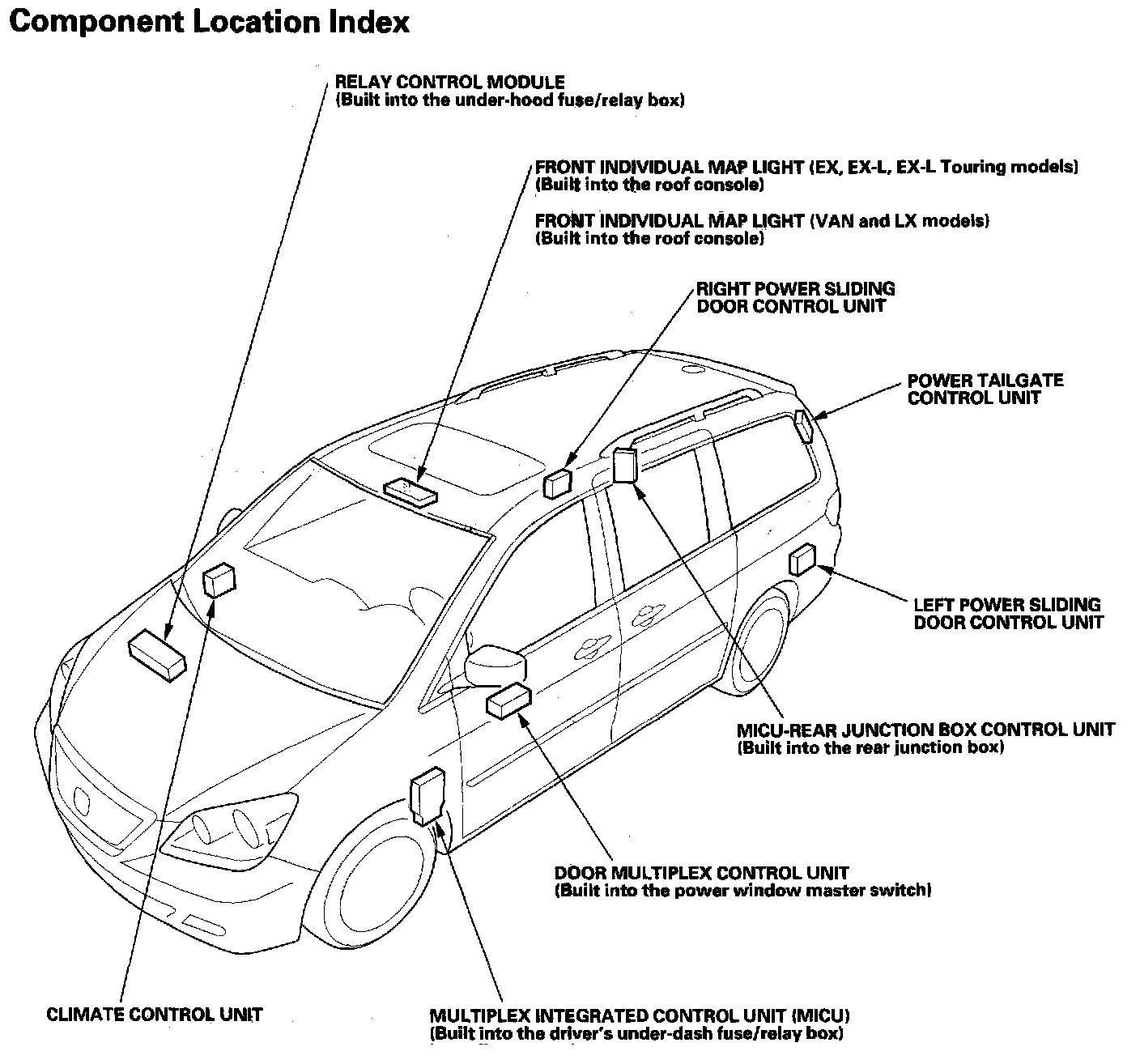

Multiplex Integrated Control System - Component Location Index:

Power Windows - Component Location Index:

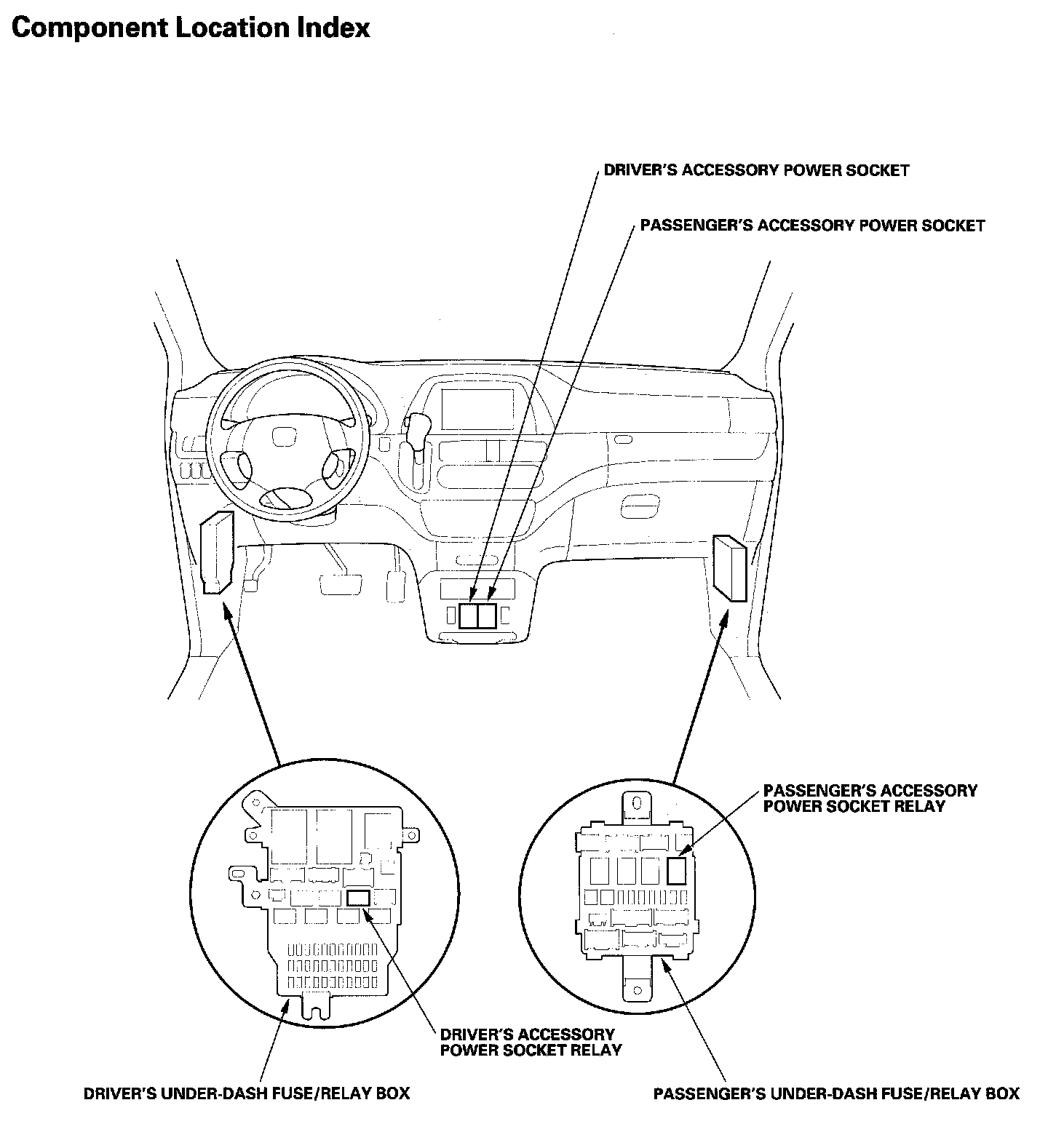

Accessory Power Sockets - Component Location Index:

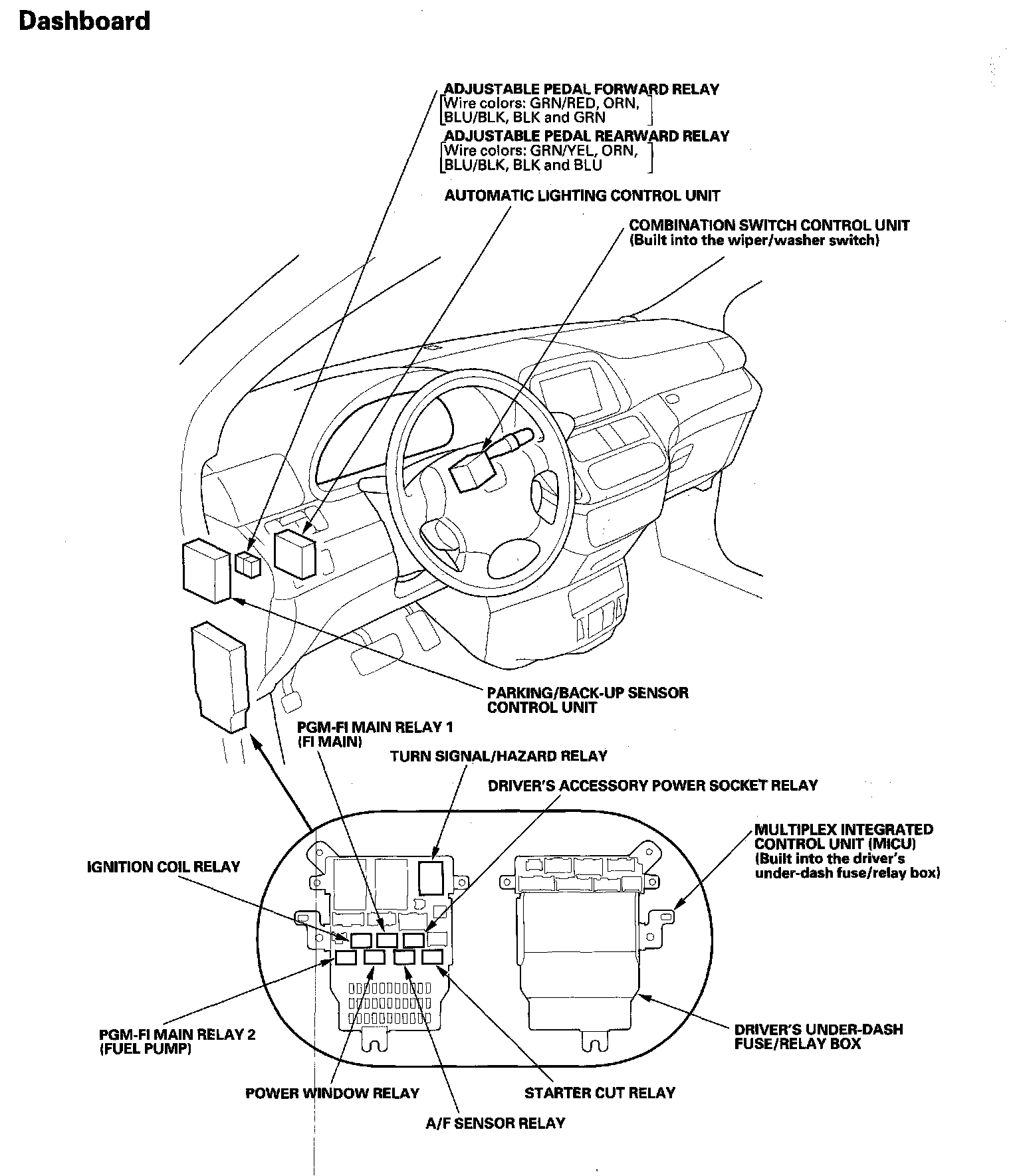

Relay And Control Unit Locations - Dashboard:

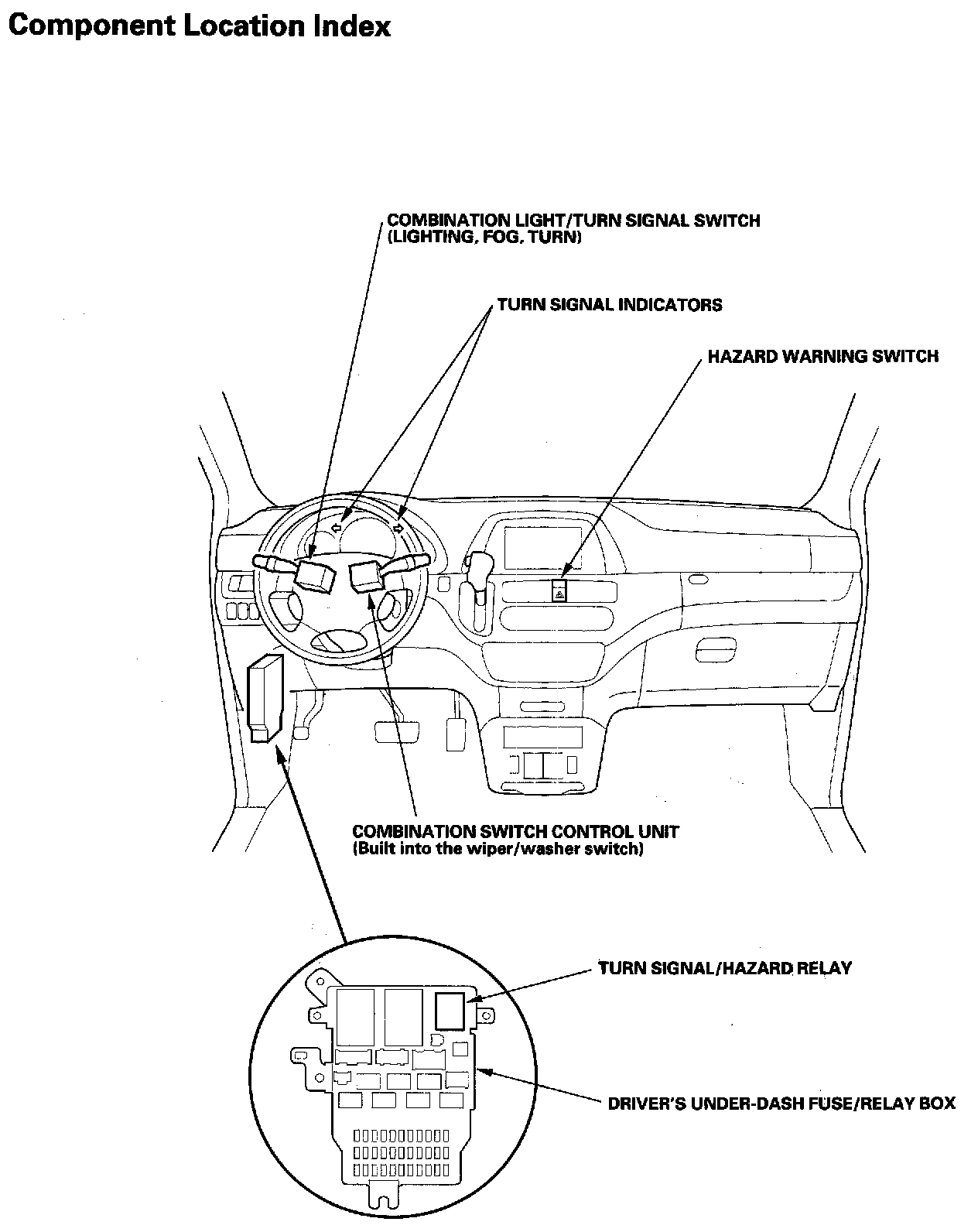

Turn Signal/Hazard Flasher - Component Location Index:

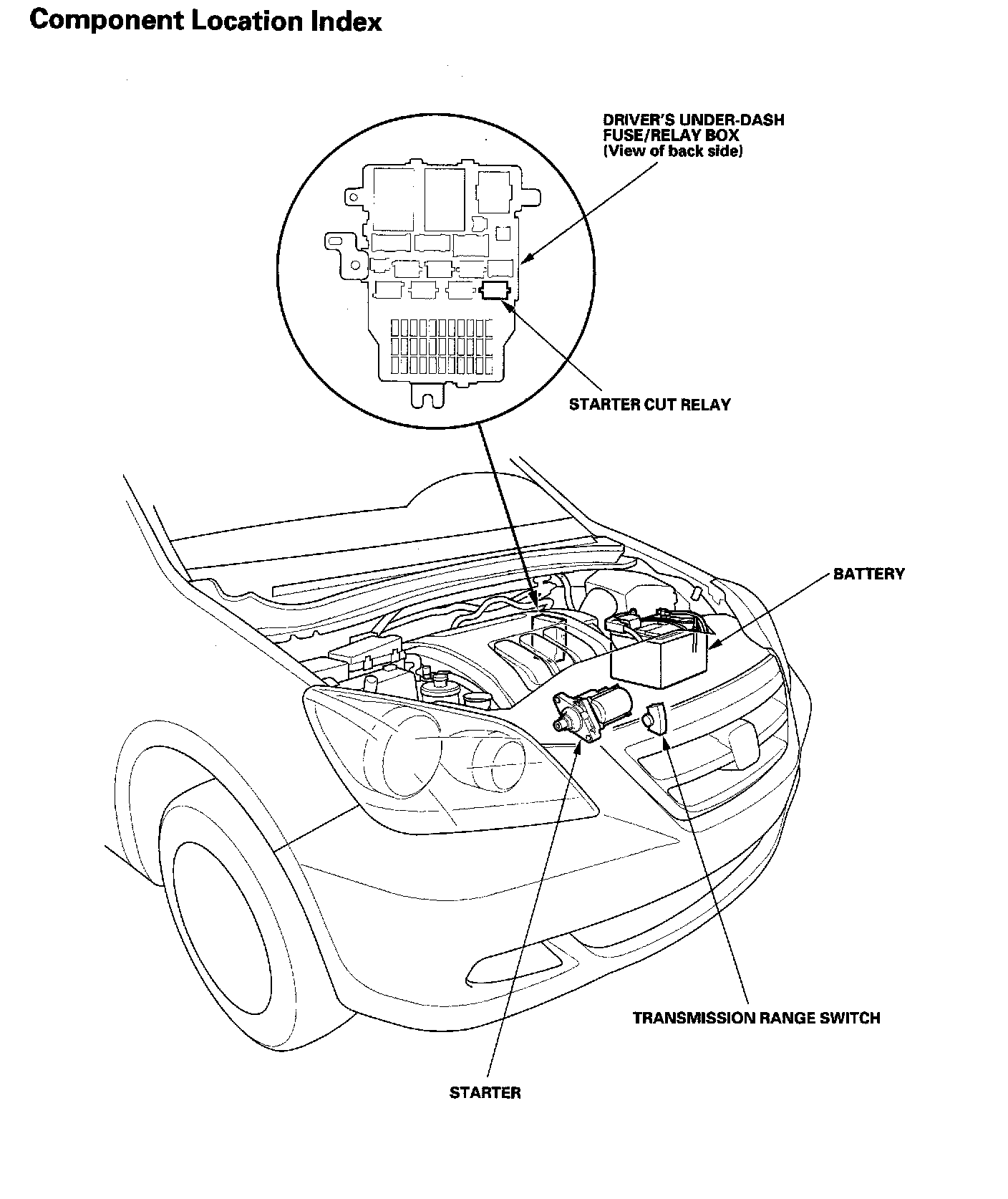

Starting System - Component Location Index:
