Variable Cylinder Management (VCM) System

EOP Sensor Removal/Installation

1. Remove the intake manifold cover.

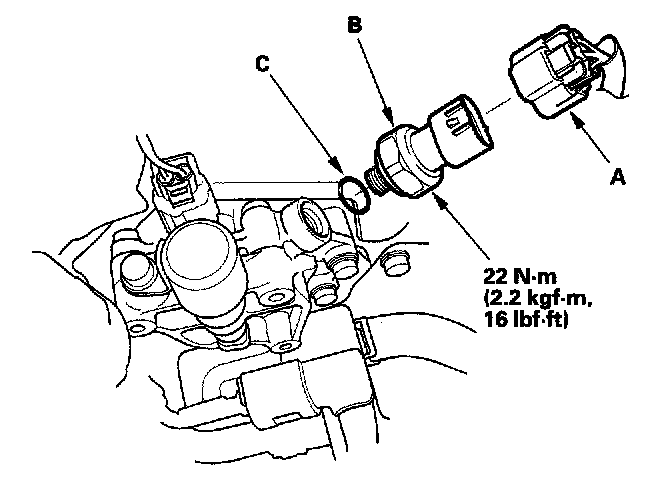

2. Remove the EOP sensor 3P connector (A).
3. Remove the EOP sensor (B).
4. Install the EOP sensor in the reverse order of removal with a new O-ring (C).
