Shift Solenoid Valve C Test

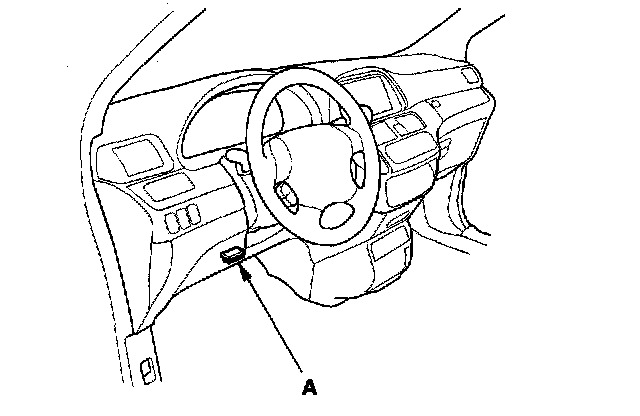

Shift Solenoid Valve C Test1. Connect the HDS to the DLC (A).
2. Choose Shift Solenoid C in Miscellaneous Test Menu on the HDS.
3. Check that the shift solenoid valve C operates with the HDS. A clicking sound should be heard.
^ If a clicking sound is heard, the valve is OK.
^ If no clicking sound is heard, go to step 4.
4. Make sure you have the anti-theft codes for the radio and navigation system, then write down the customer's audio presets.
5. Disconnect the negative cable from the battery first, then disconnect the positive cable.
6. Remove the battery hold-down bracket, then remove the battery cover, battery, and battery tray.
7. Remove the intake air duct and air cleaner housing.
8. Loosen the two bolts securing the rear of the battery base, and remove the two bolts securing the front of the base, then remove the battery base.

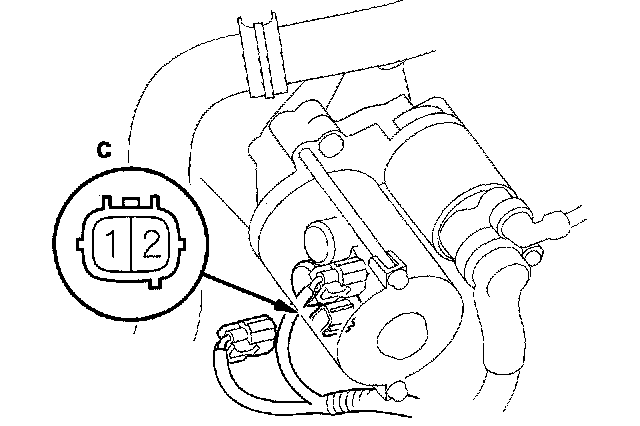

9. Disconnect shift solenoid valve C connector.
10. Measure shift solenoid valve C resistance at the solenoid valve connector terminals.
Standard: 12 - 25 ohms
^ Replace shift solenoid valve C if the resistance is out of standard.
^ If the resistance is within the standard, go to step 11.
11. Connect the battery negative terminal to shift solenoid valve C connector terminal No. 1, and connect the battery positive terminal to the terminal No. 2. A clicking sound should be heard.
12. Replace shift solenoid valve C if no clicking sound is heard.
13. Install the battery base, then install the air cleaner housing and intake air duct.
14. Install the battery tray, battery, and battery cover, then secure the battery with its hold-down bracket.
15. Clean the battery posts and cable terminals with sandpaper, then assemble them and apply grease to prevent corrosion.
16. Enter the audio and navigation anti-theft codes, then enter the customer's audio presets, and set the clock.
