Driver's Under-Dash Fuse/Relay Box
Driver's Under-Dash Fuse/Relay Box

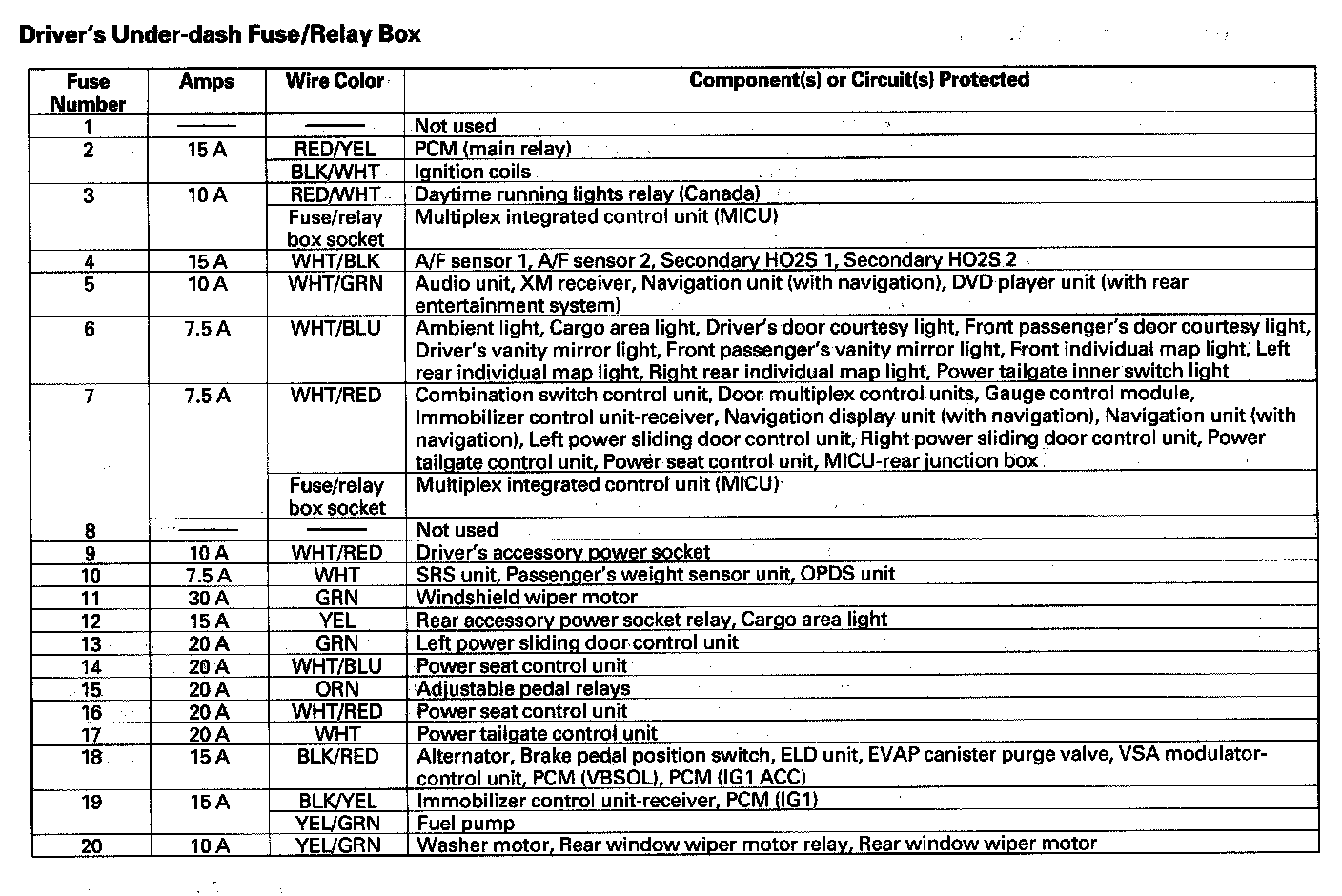

Driver's Under-dash Fuse/relay Box Part 1:
Driver's Under-dash Fuse/relay Box Part 2:
