Removal and Installation
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the customer's audio presets. Make sure the ignition switch is OFF.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable.
3. Remove the battery and the battery base.

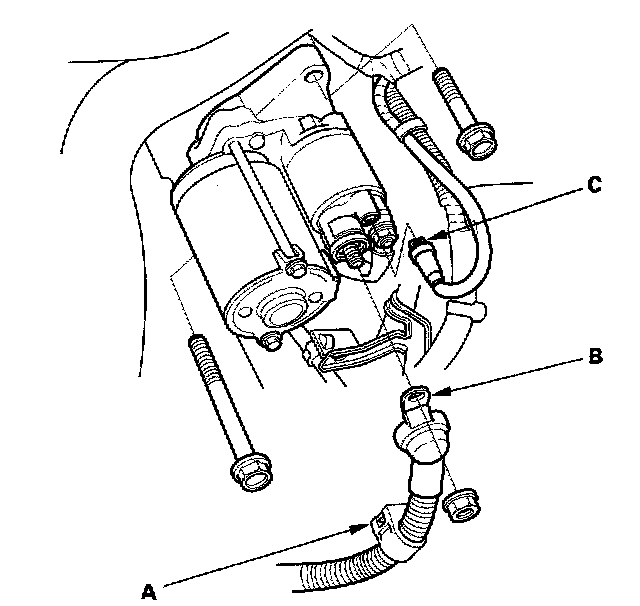

4. Remove the harness clamp (A).
5. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from the S terminal.
6. Remove the two bolts holding the starter, then remove the starter.
Installation

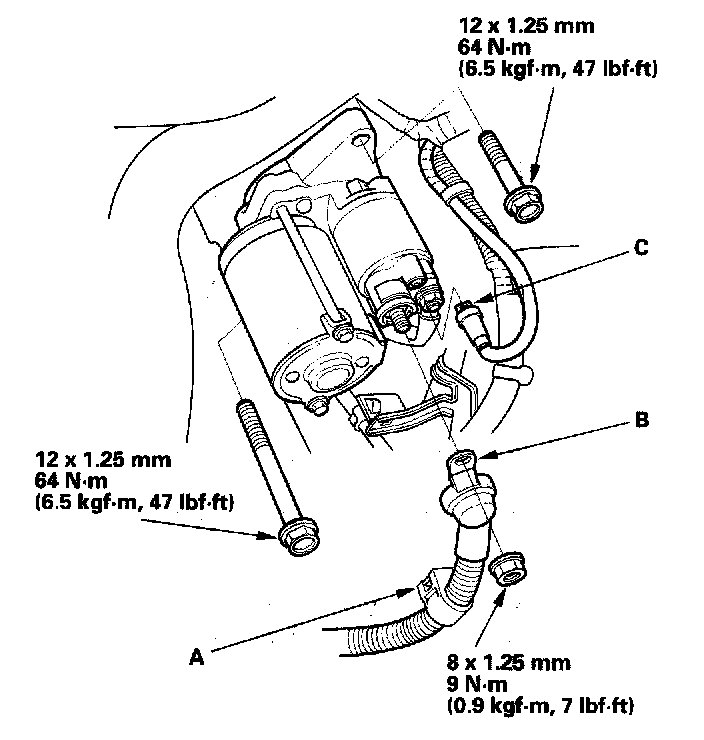

1. Install the starter, then install the harness clamp (A), connect the starter cable (B) to the B terminal and the BLK/WHT wire (C) to the S terminal. Make sure the crimped side of the starter cable ring terminal is facing out.
2. Install the battery base and the battery.
3. Connect the positive cable to the battery first, then connect the negative cable.
4. Start the engine to make sure the starter works properly.
5. Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
6. Set the clock.
