Front Fender Fairing

Front Fender Fairing Replacement

1. Remove the front inner fender as necessary.

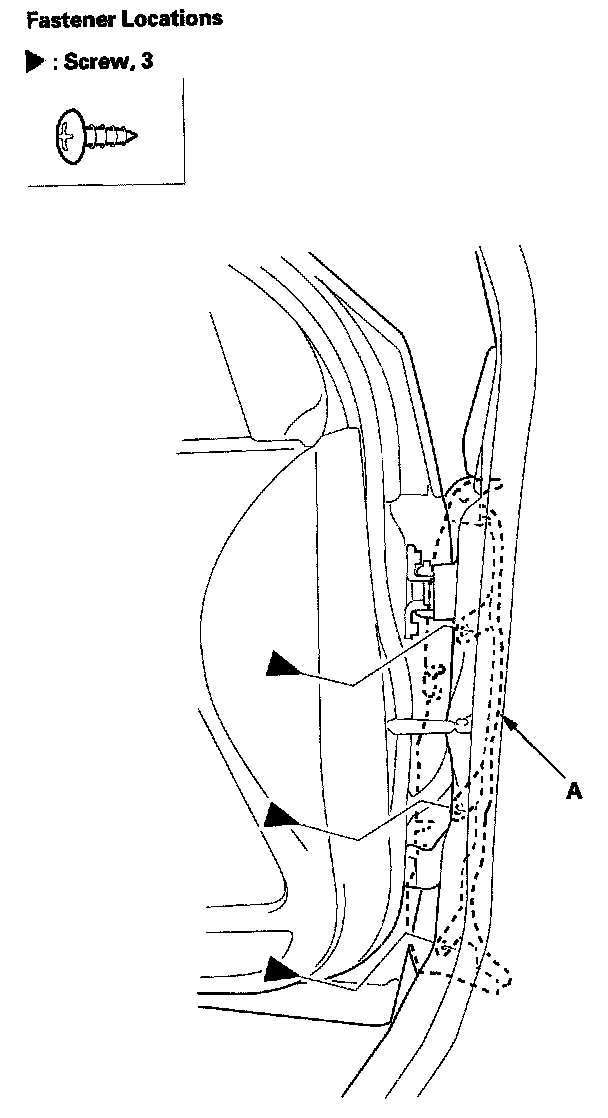

2. Open the front door, and from inside the door, remove the screws securing the front fender fairing (A).

3. From the wheel arch, release the hooks (A, B) from the front fender, then remove the front fender fairing (C).
4. Install the fender fairing in the reverse order of removal, and make sure the hooks are installed to the front fender properly.
