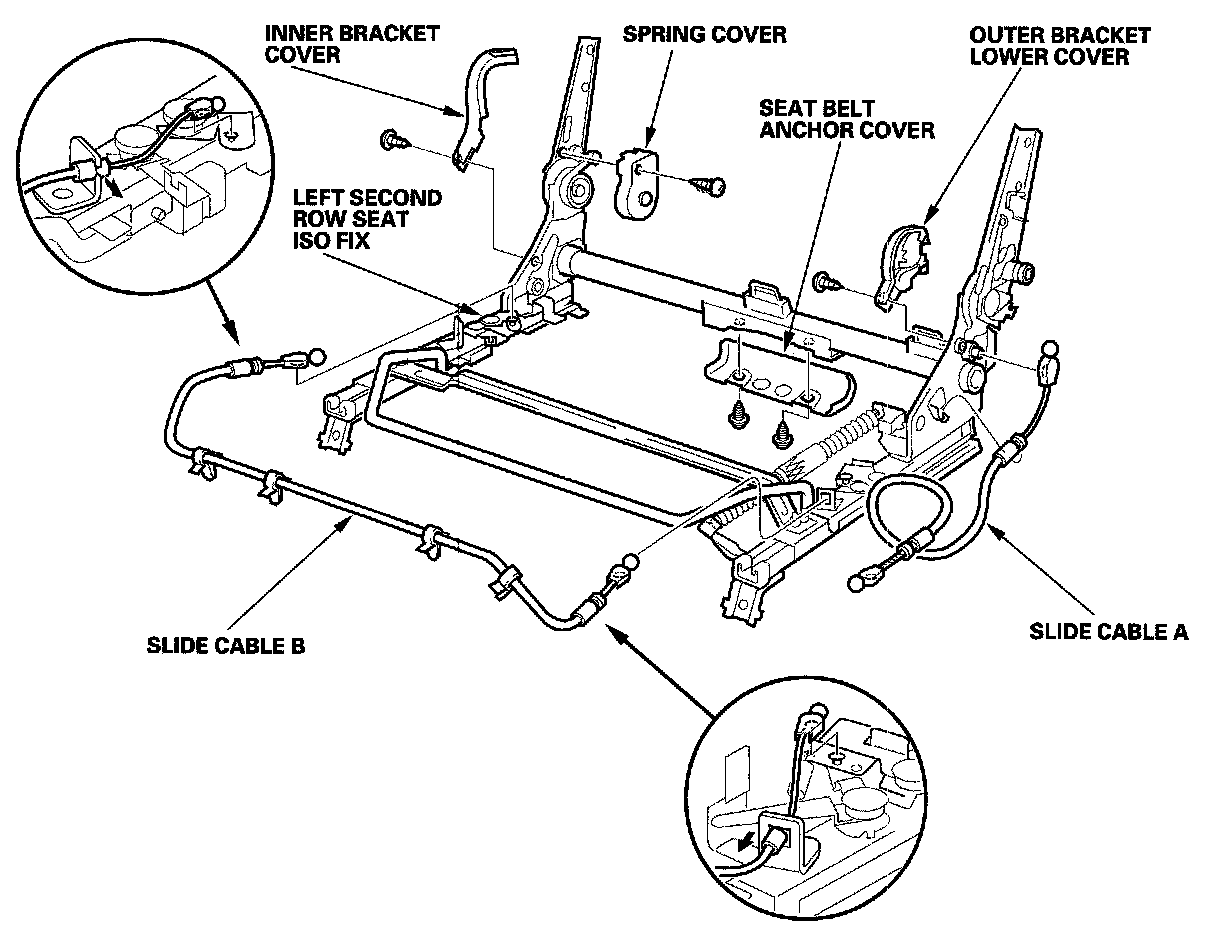

Left Second Row Seat Linkage Disassembly/Reassembly
Left Second Row Seat Linkage Disassembly/Reassembly NOTE: -
Take care not to bend the slide cable.
-
Replace the push nut with a new one.
-
Apply multipurpose grease to the sliding portions.
-
Make sure the slide cable is connected securely, and if necessary, adjust the cable.
