View 26-50: 34

34. Accessory Power Socket, Rear (except EX-L RES (DVD)):



148. C404 (EX-L: RES (DVD)):



178. Power Outlet (EX-L: RES (DVD)):



200. Radio Remote Switch (EX, EX-L; EX-L: RES (DVD)):



285. A/C Inverter Unit (EX-L: RES (DVD)):

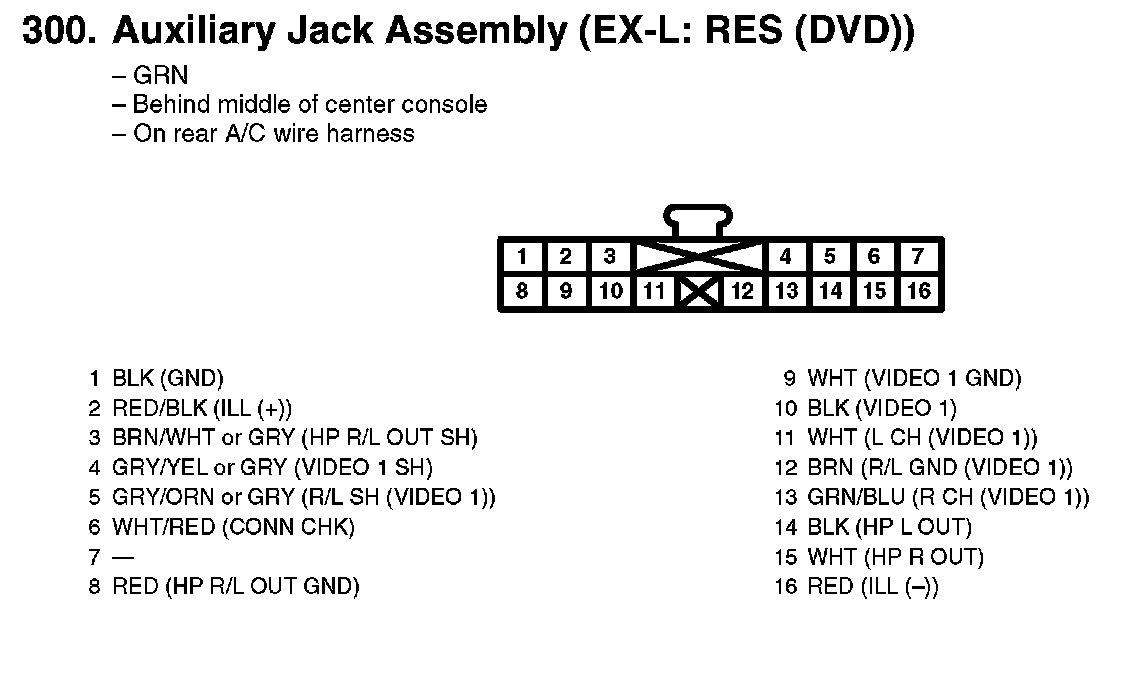

300. Auxiliary Jack Assembly (EX-L: RES (DVD)):



303. C552 (EX-L: RES (DVD)):



322. Rear Controller And Screen (EX-L: RES (DVD)):



332. DVD Player Unit:
