Electronic Throttle Actuator Relay
Electronic Throttle Actuator Relay

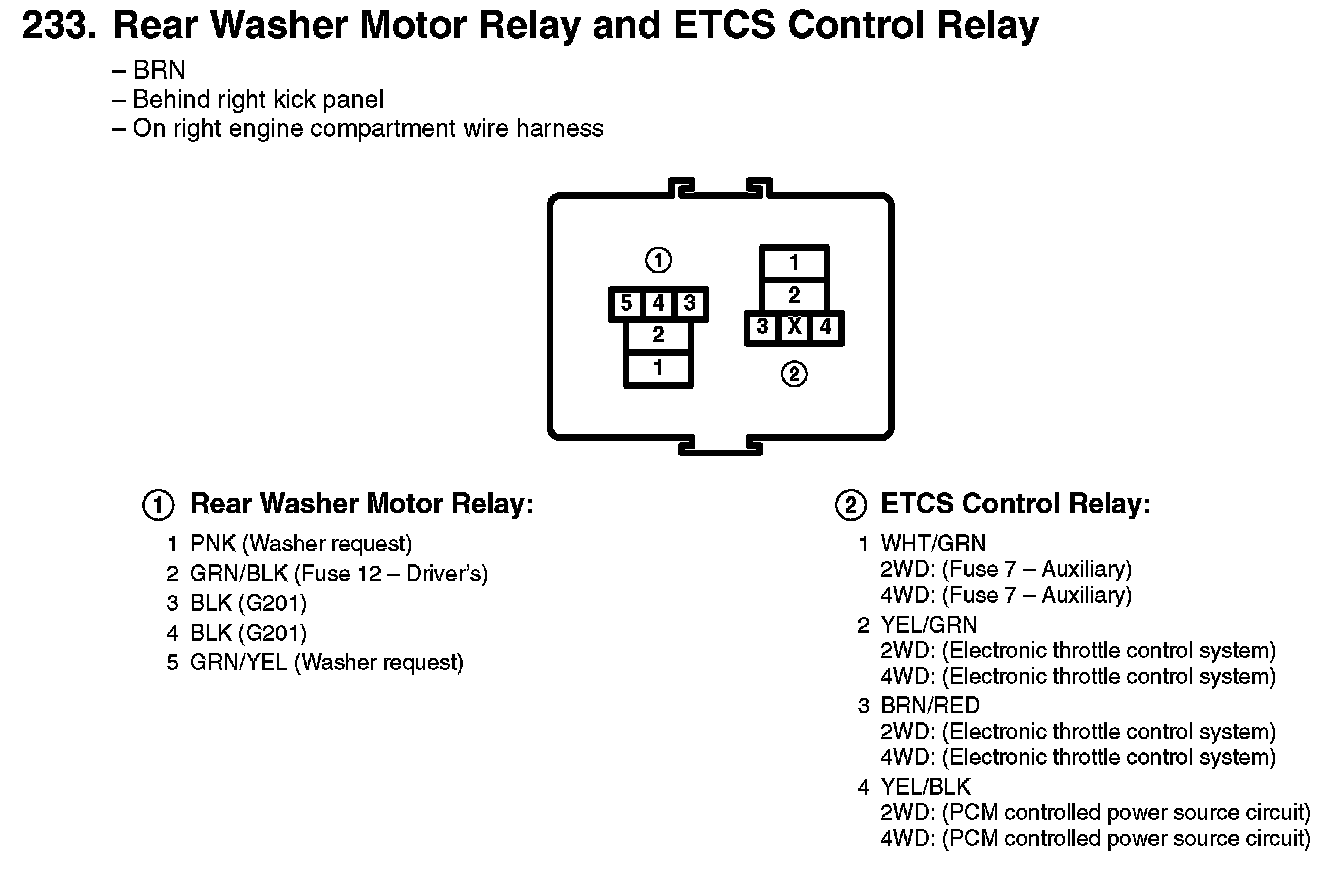

233. Rear Washer Motor Relay And ETCS Control Relay:
