Heated Glass Element
Heated Glass Element

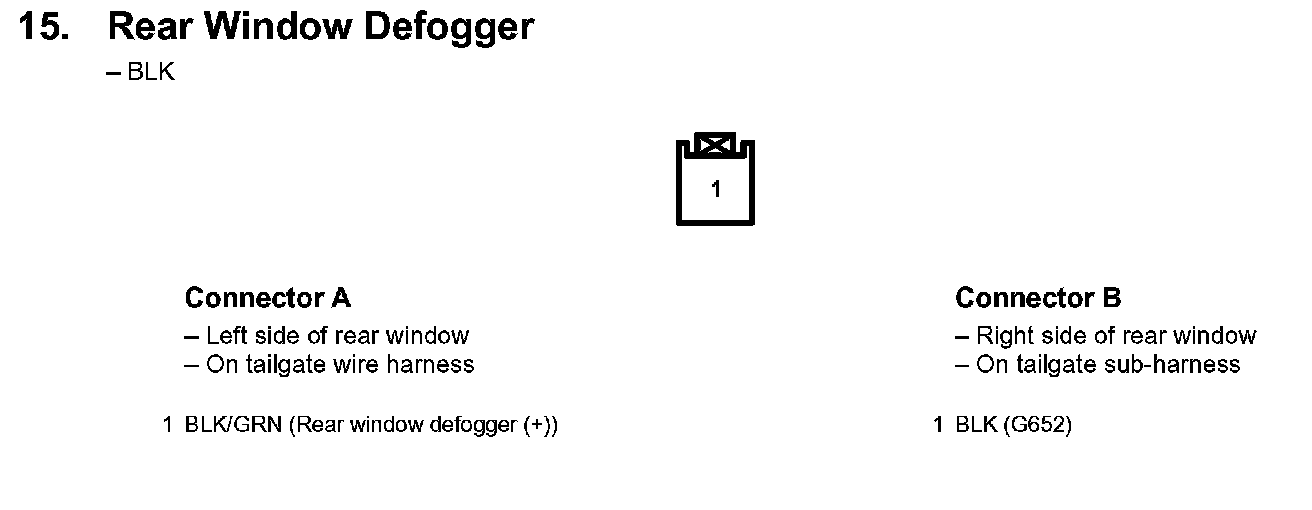

15. Rear Window Defogger:

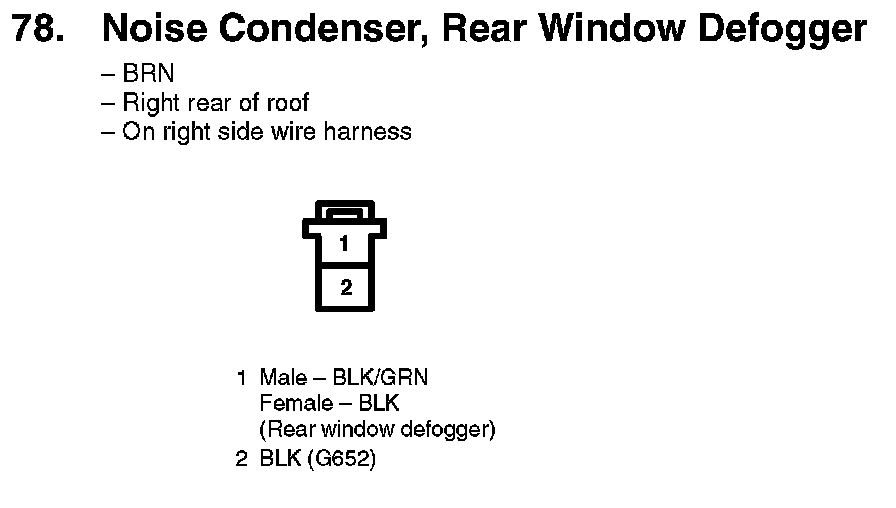

78. Noise Condenser, Rear Window Defogger:
