Oxygen Sensor
Oxygen Sensor

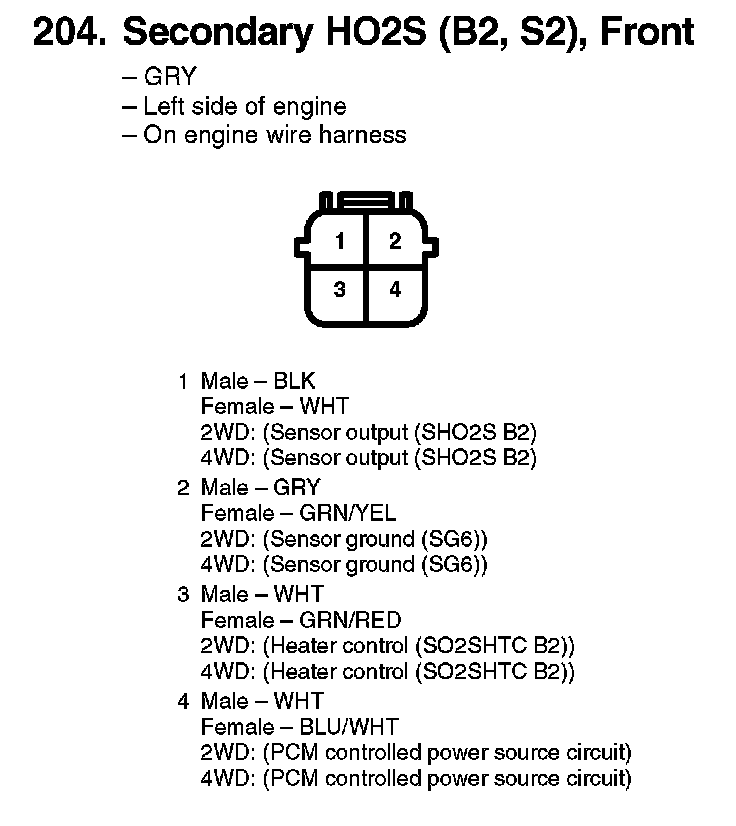

204. Secondary H02S (B2, S2), Front:
205. Secondary H02S (B1, S2), Rear:
277. A/F Sensor (B1,S1), Rear:
278. A/F Sensor (B2, S1), Front:
