Power Door Lock Actuator
Power Door Lock Actuator

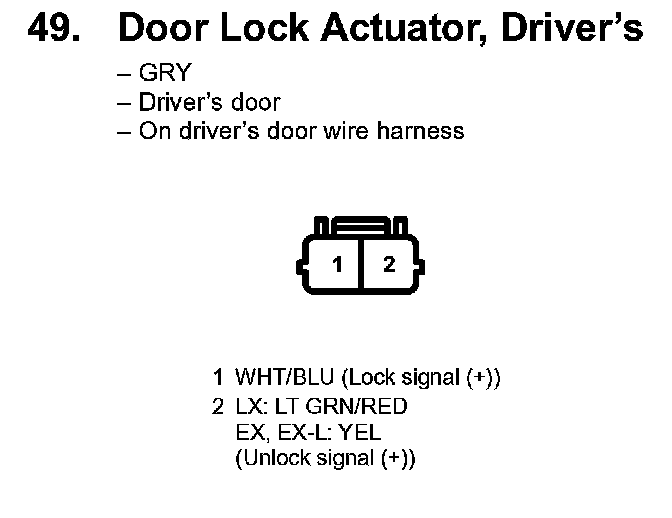

49. Door Lock Actuator, Driver's:
50. Door Lock Actuator, Front Passenger's:
51. Door Lock Actuator, Left Rear:
52. Door Lock Actuator, Right Rear:
