Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T
172. Input Shaft (Mainshaft) Speed Sensor:

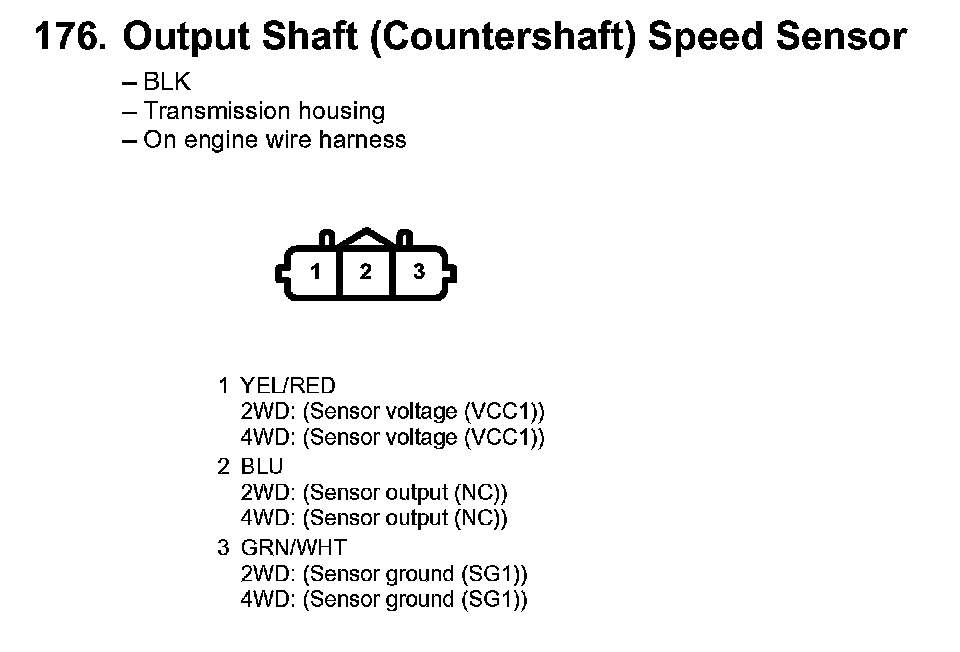

176. Output Shaft (Countershaft) Speed Sensor:
