Standards and Service Limits

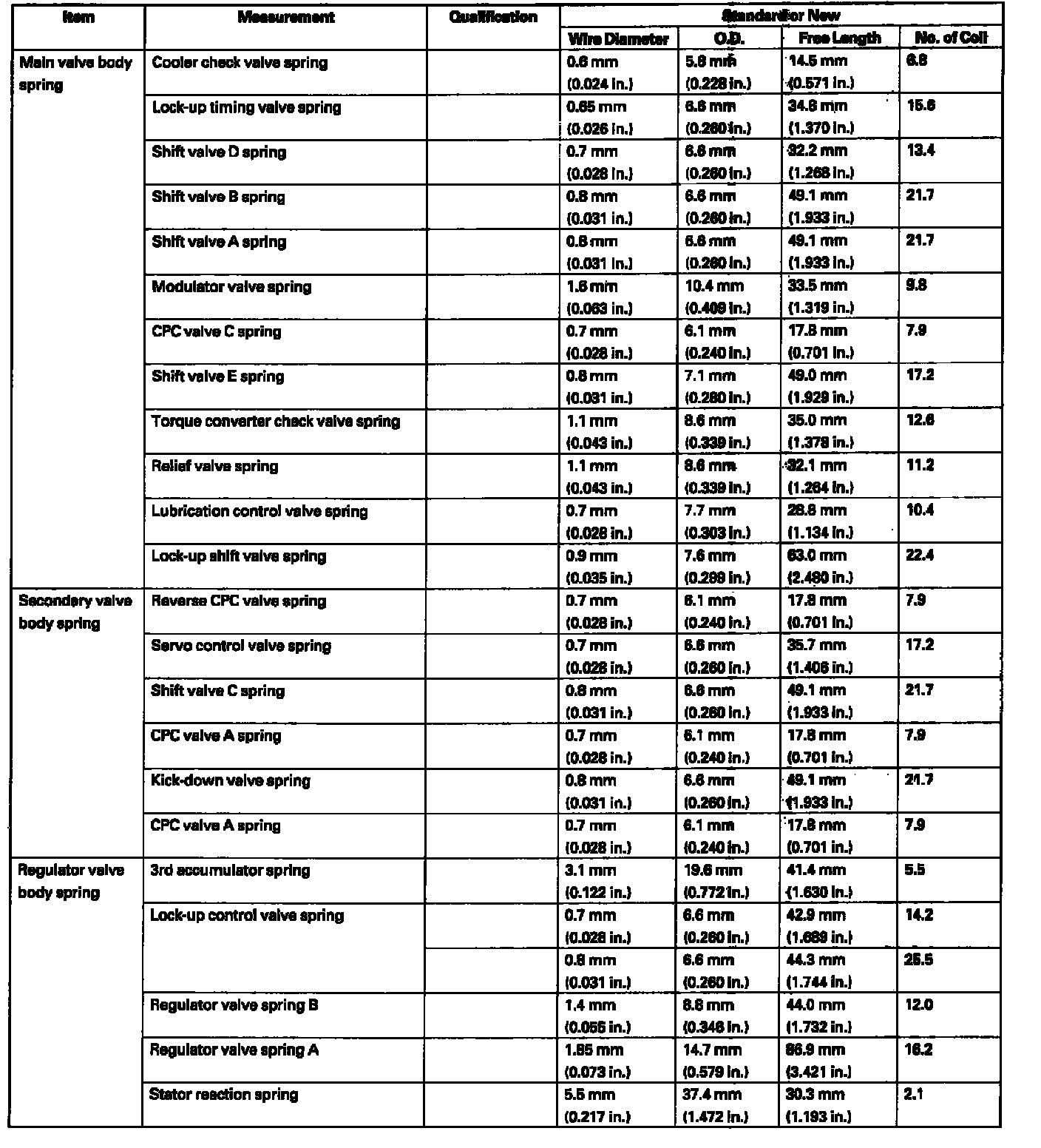

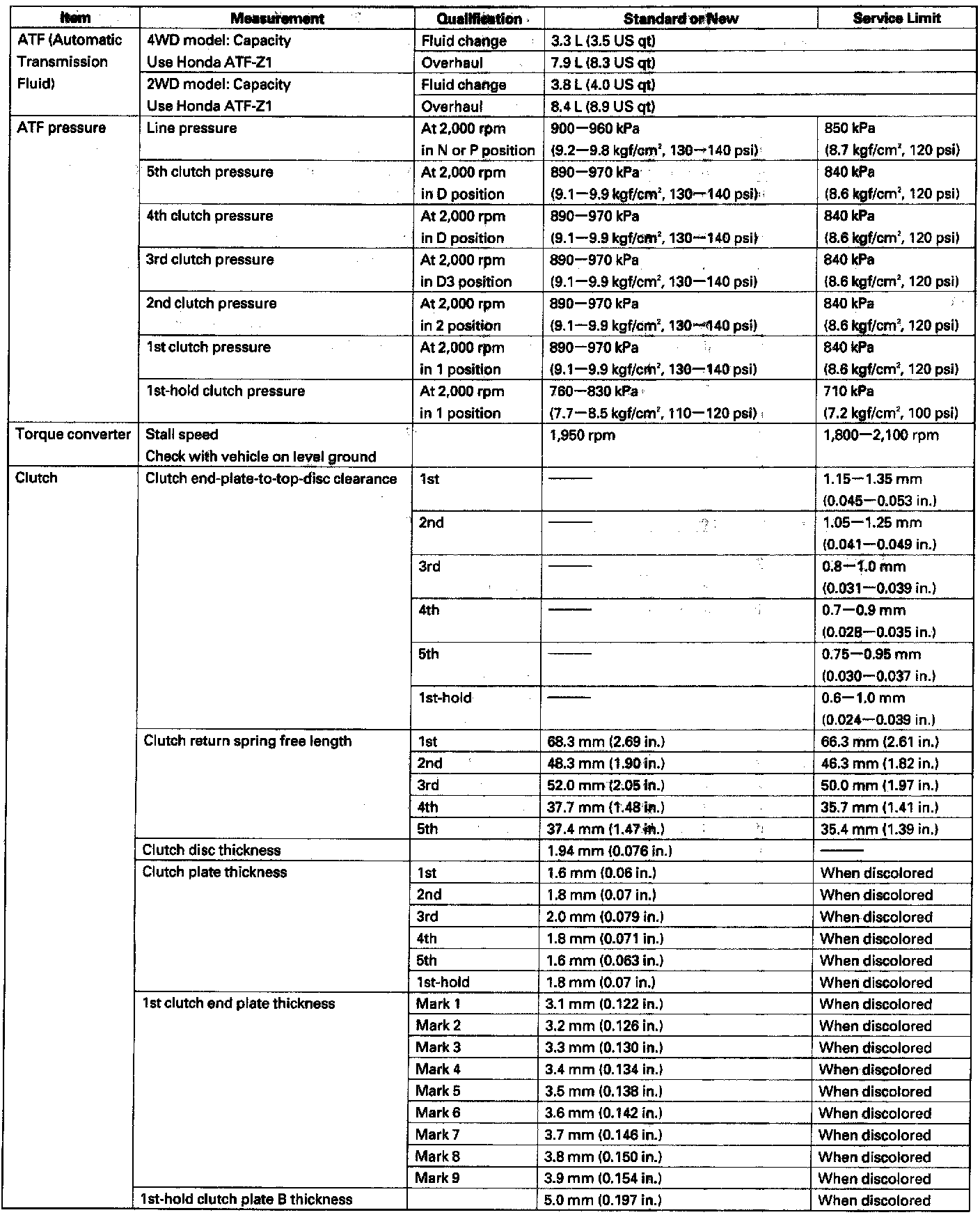

Automatic Transmission and A/T Differential:

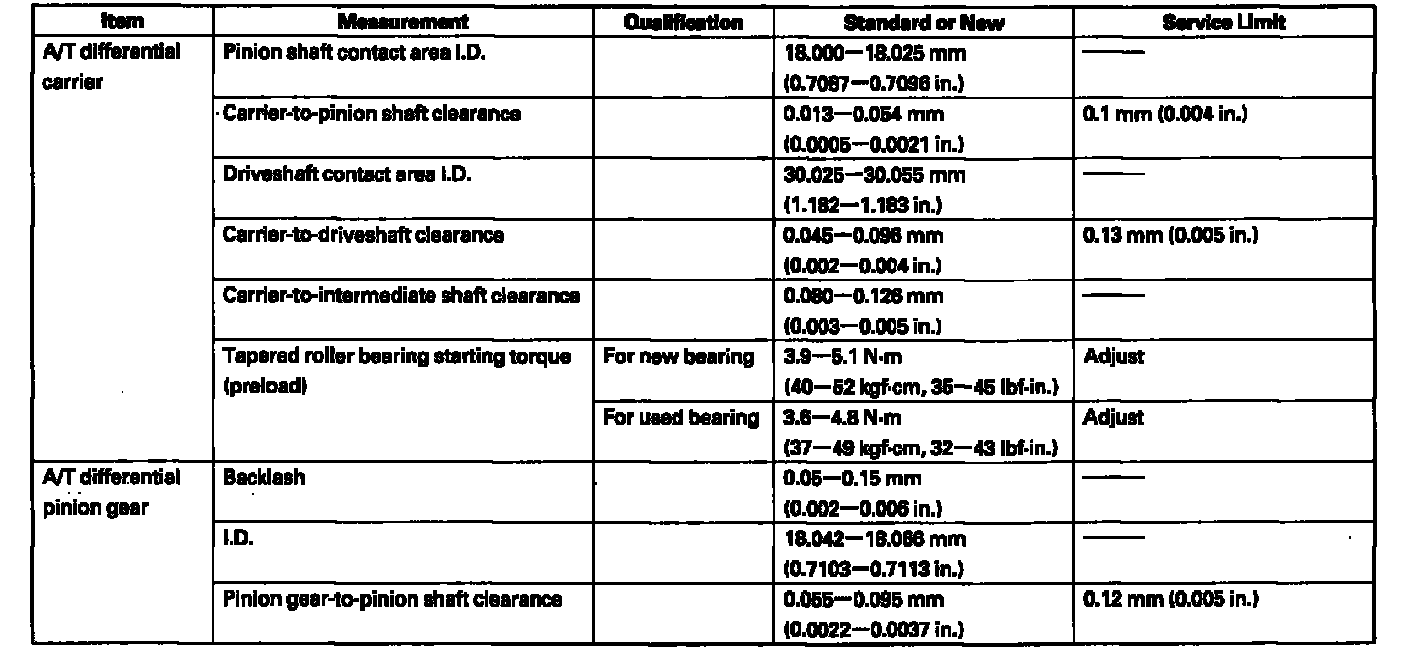

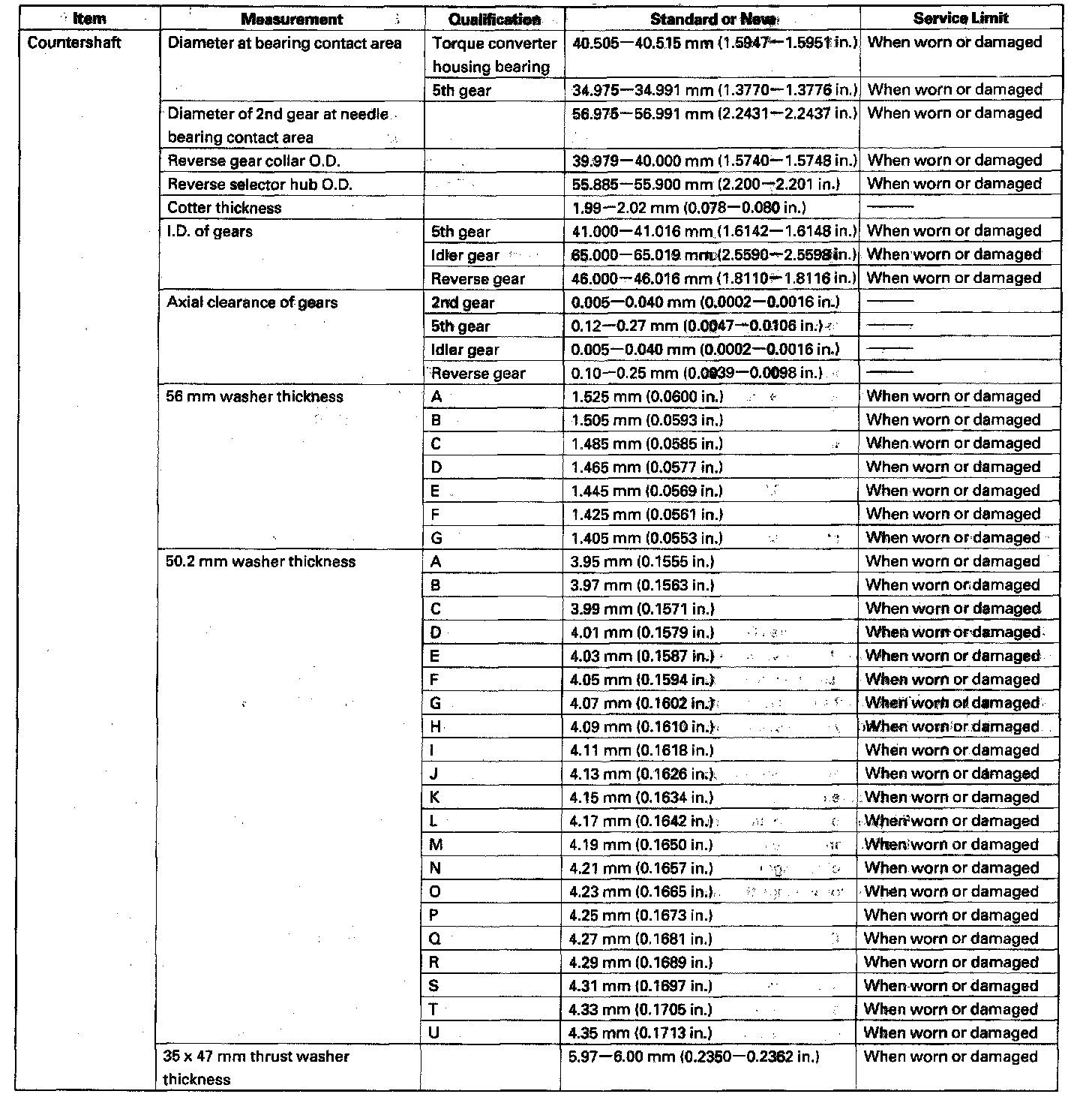

Automatic Transmission and A/T Differential:

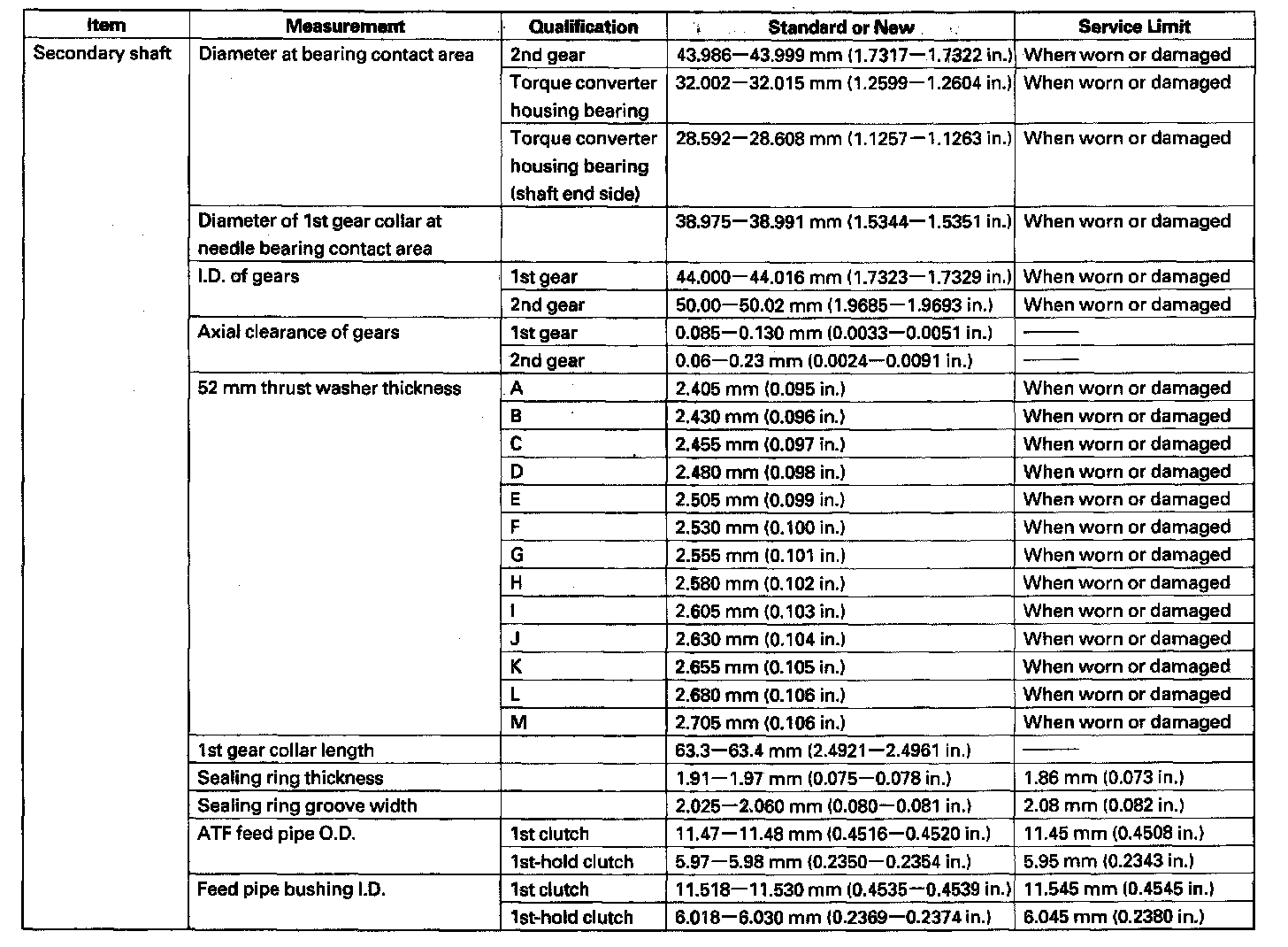

Automatic Transmission and A/T Differential:

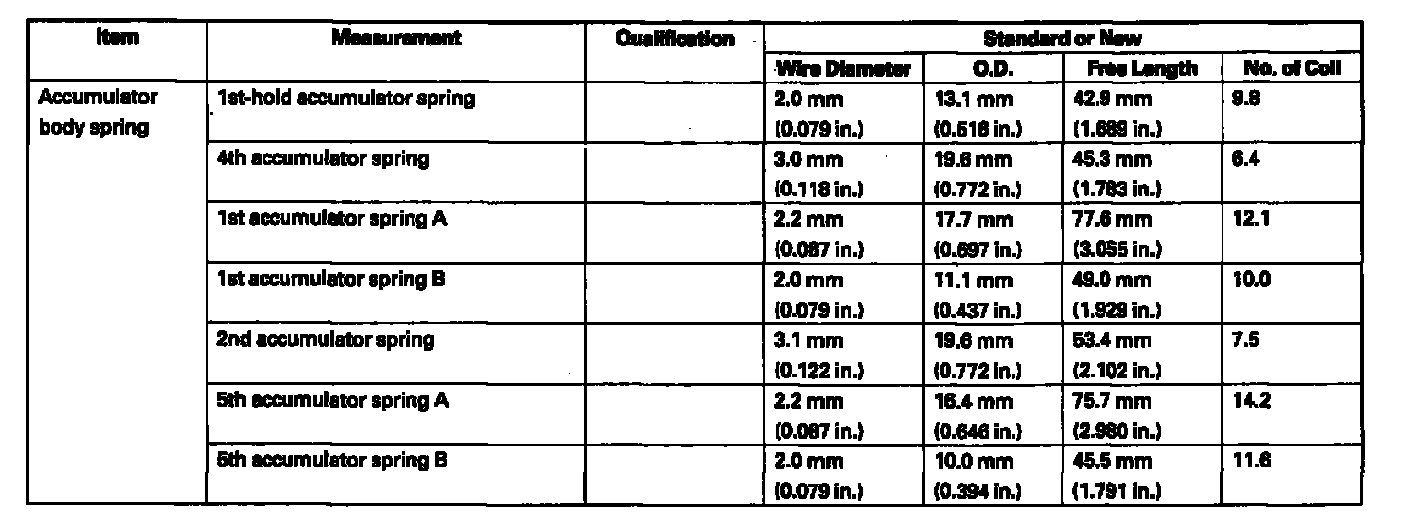

Automatic Transmission and A/T Differential:

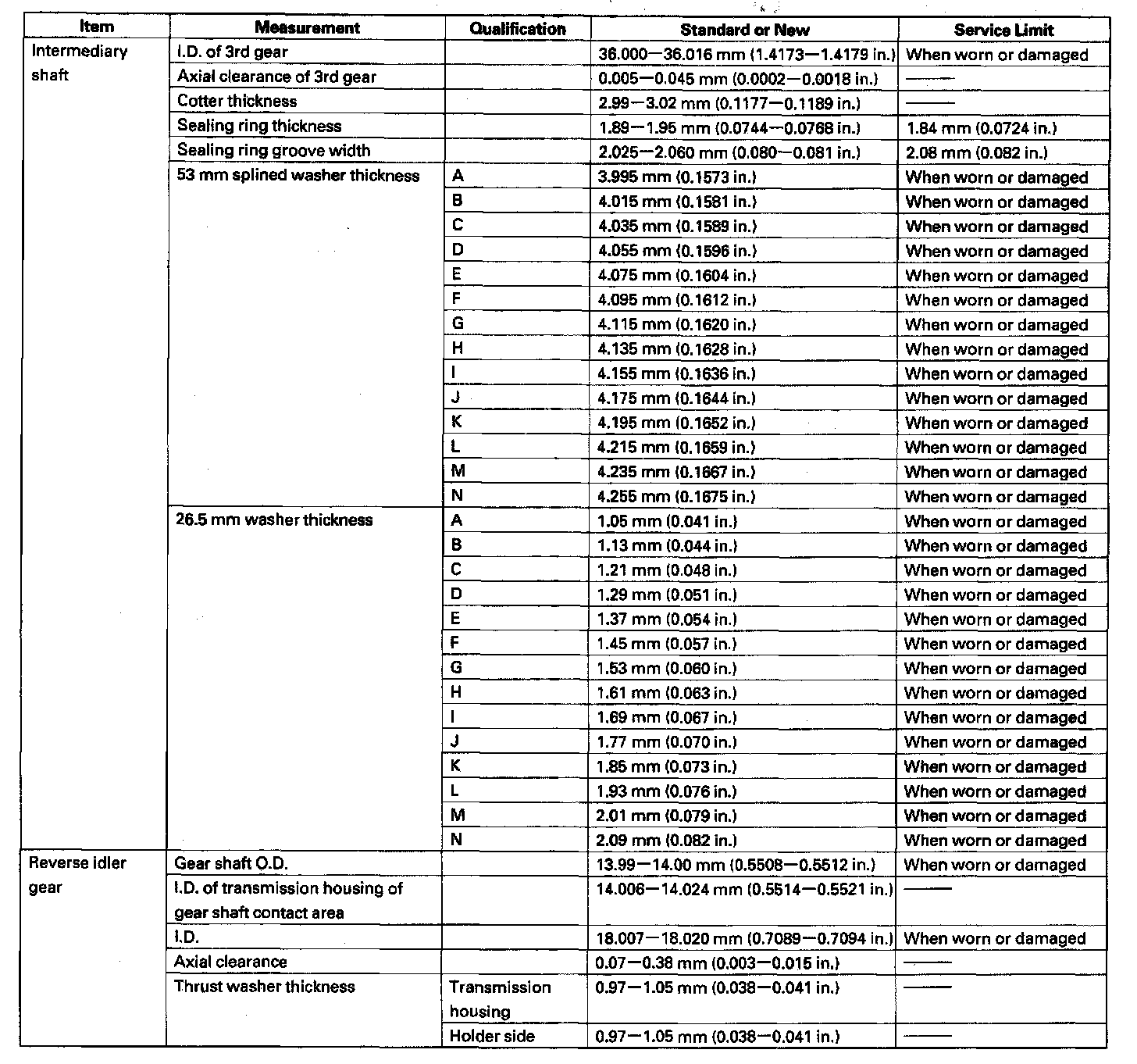

Automatic Transmission and A/T Differential:

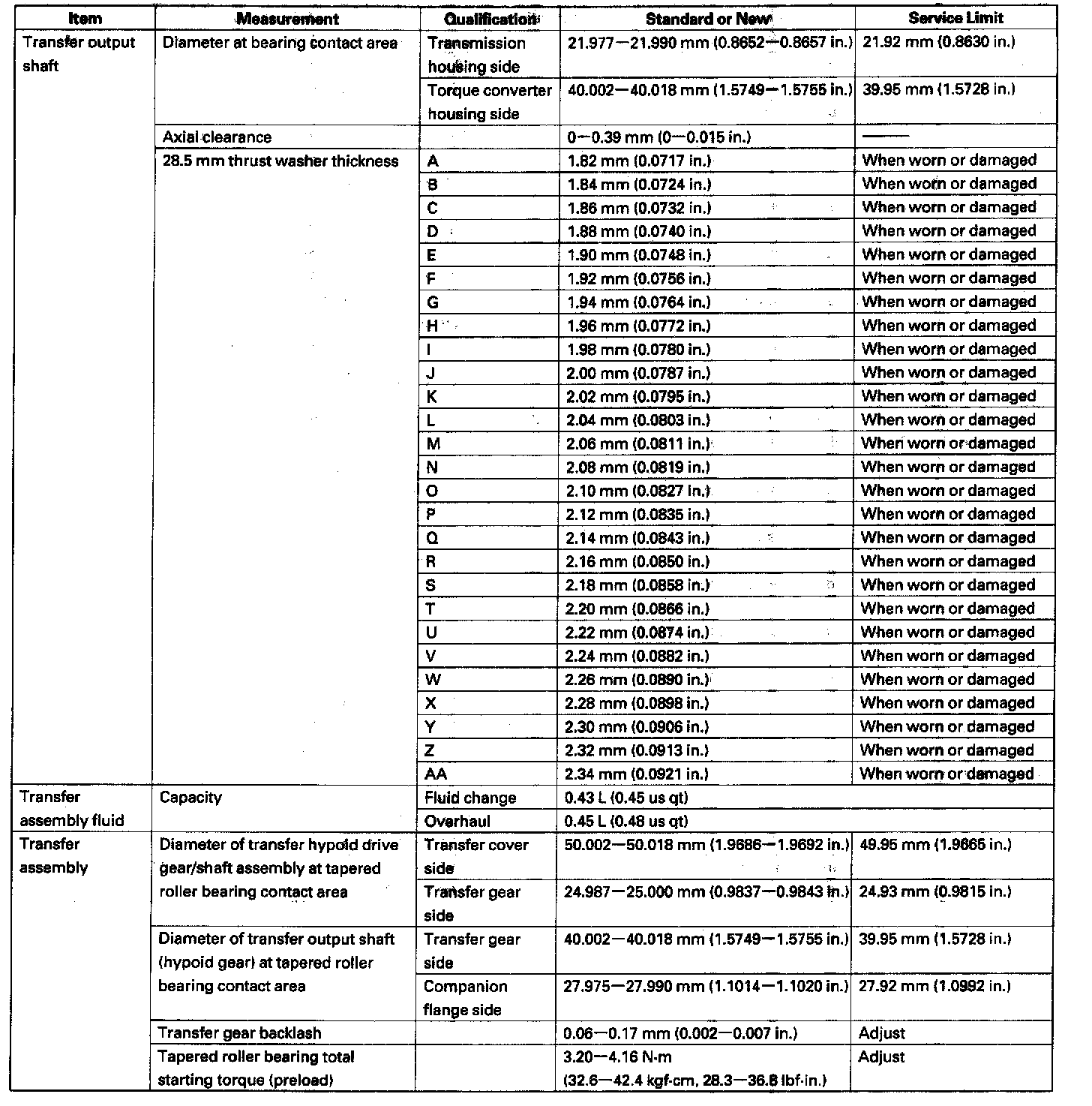

Automatic Transmission and A/T Differential:

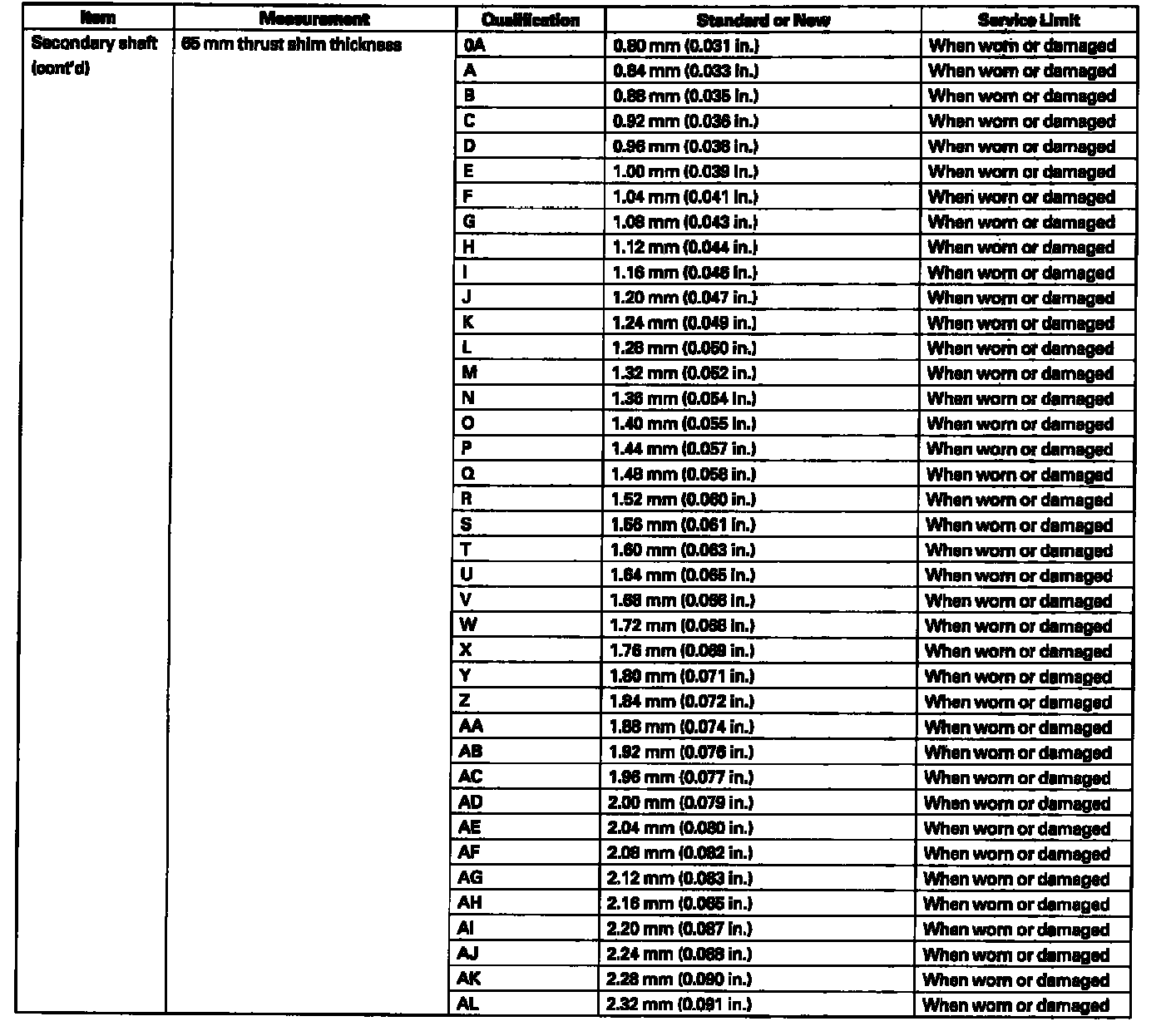

Automatic Transmission and A/T Differential:

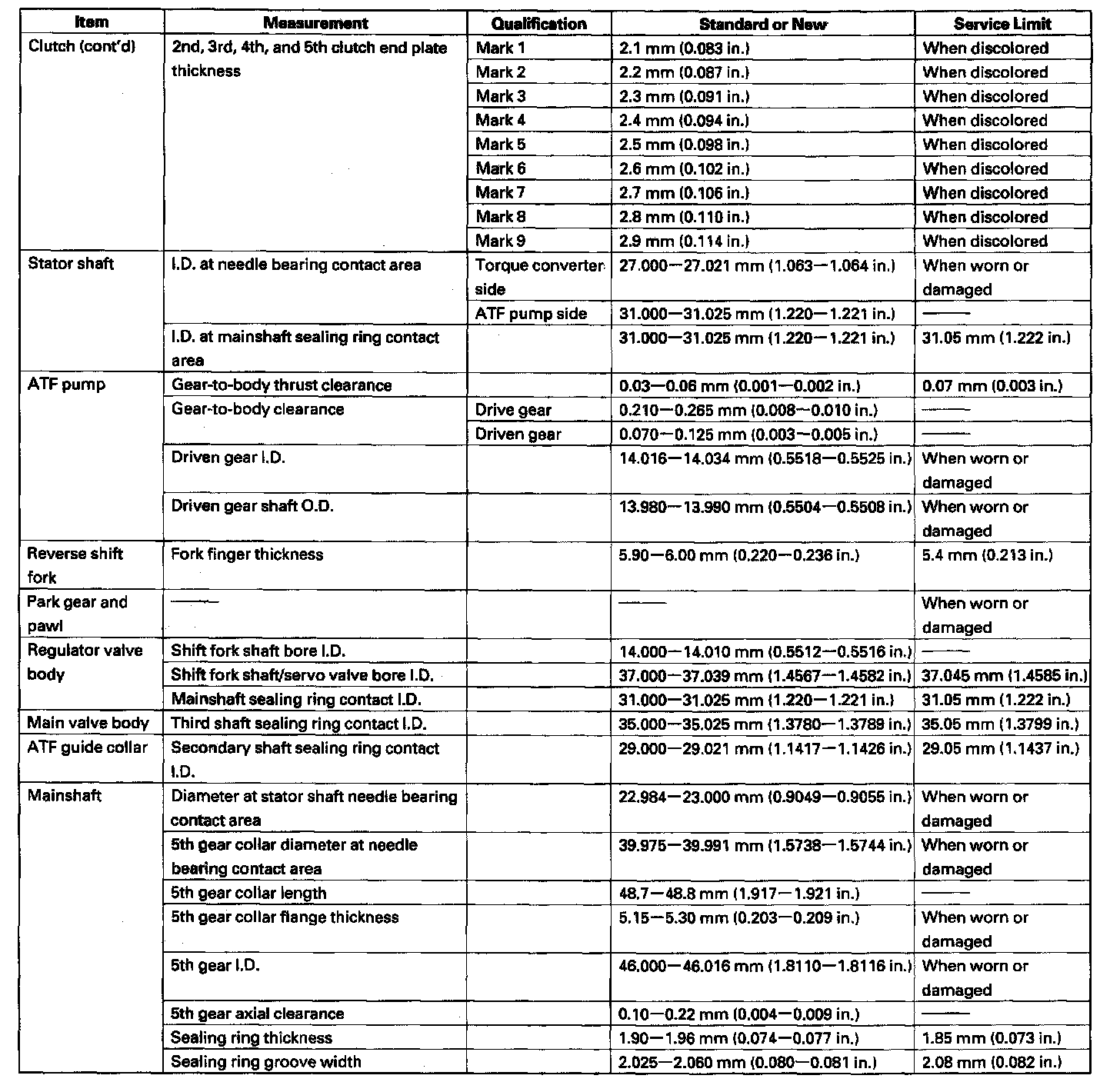

Automatic Transmission and A/T Differential:



Automatic Transmission and A/T Differential:



Automatic Transmission and A/T Differential:
