Four Wheel Drive Selector Relay
Four Wheel Drive Selector Relay

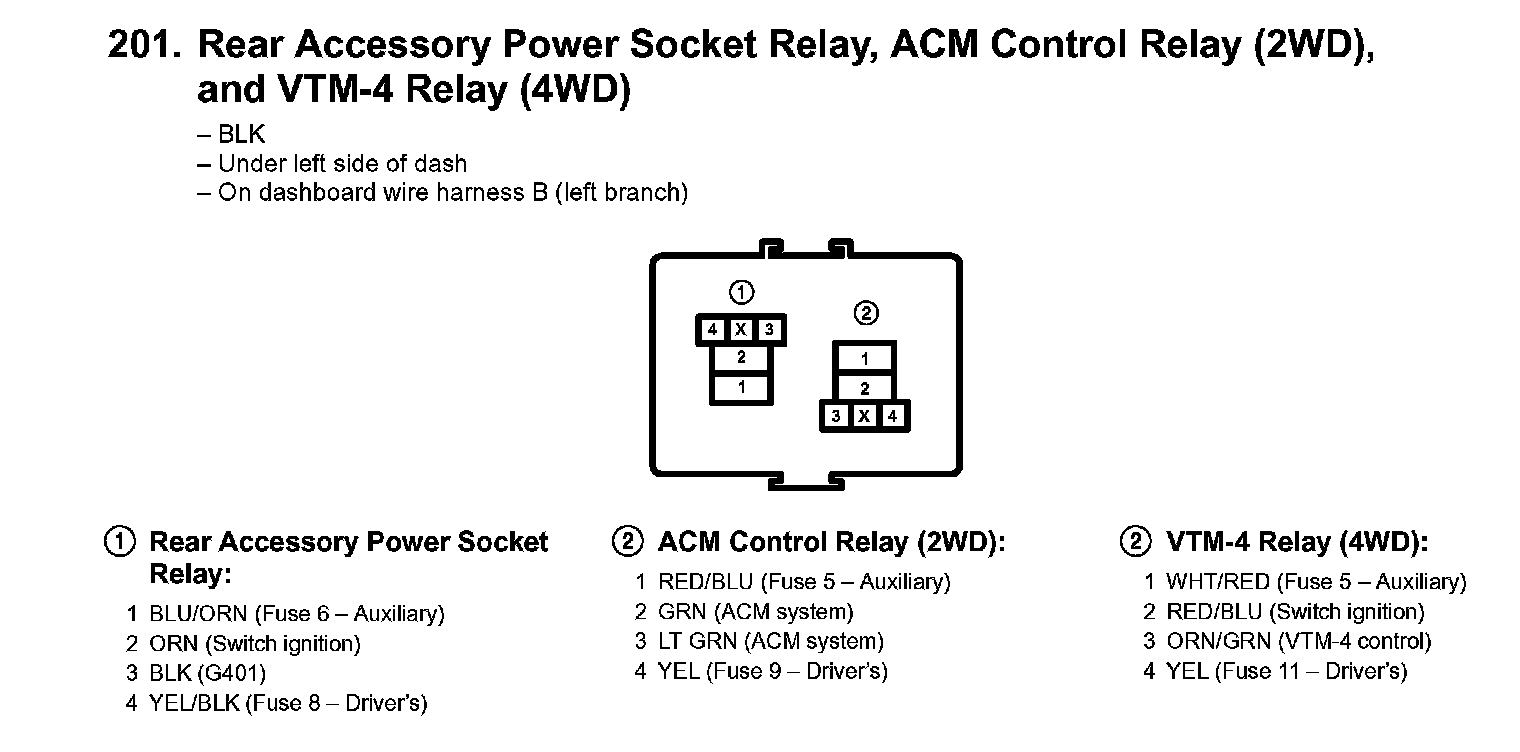

201. Rear Accessory Power Socket Relay, ACM Control Relay (2WD), And VTM-4 Relay (4WD):
