Four Wheel Drive Selector Switch
Four Wheel Drive Selector Switch

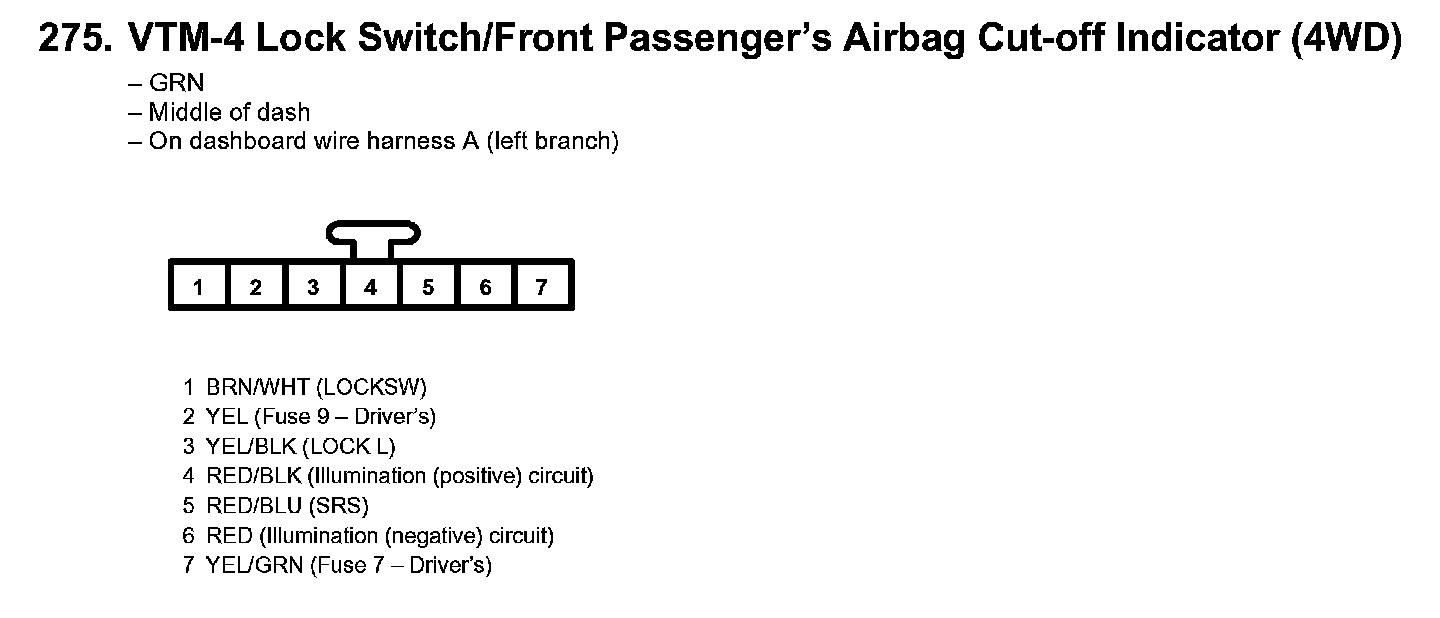

275. VTM-4 Lock Switch/Front Passenger's Airbag Cut-off Indicator (4WD):
