Power Window Motor
>>
Rear Door Window Motor
Rear Door Window Motor

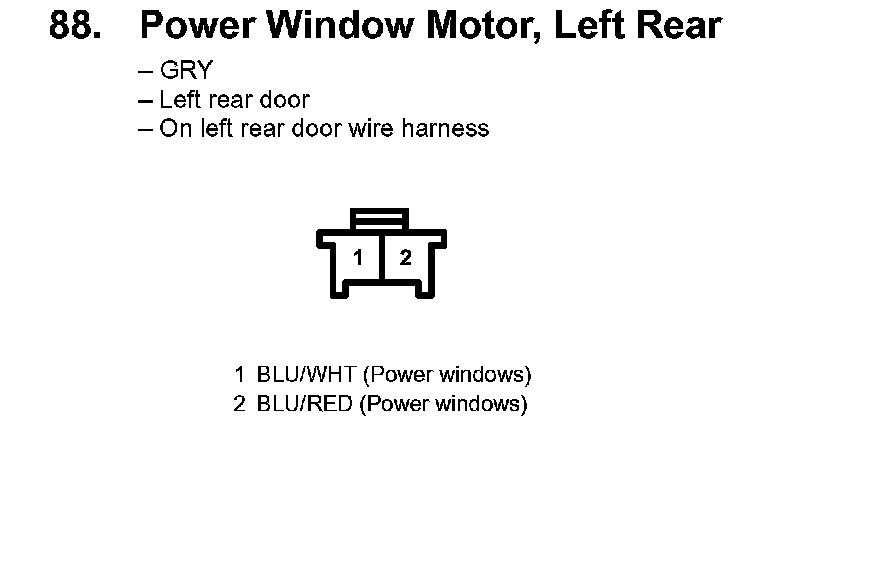

88. Power Window Motor, Left Rear:

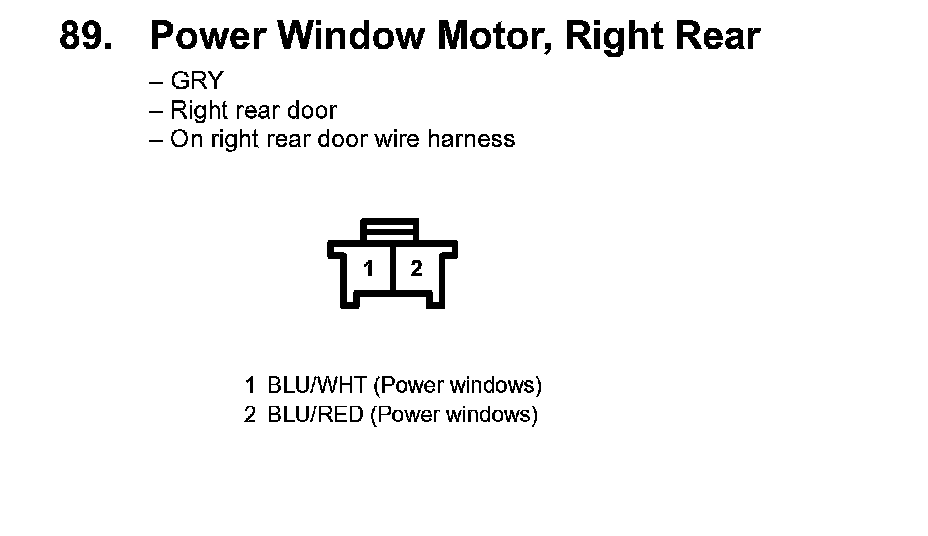

89. Power Window Motor, Right Rear:
