System Diagram

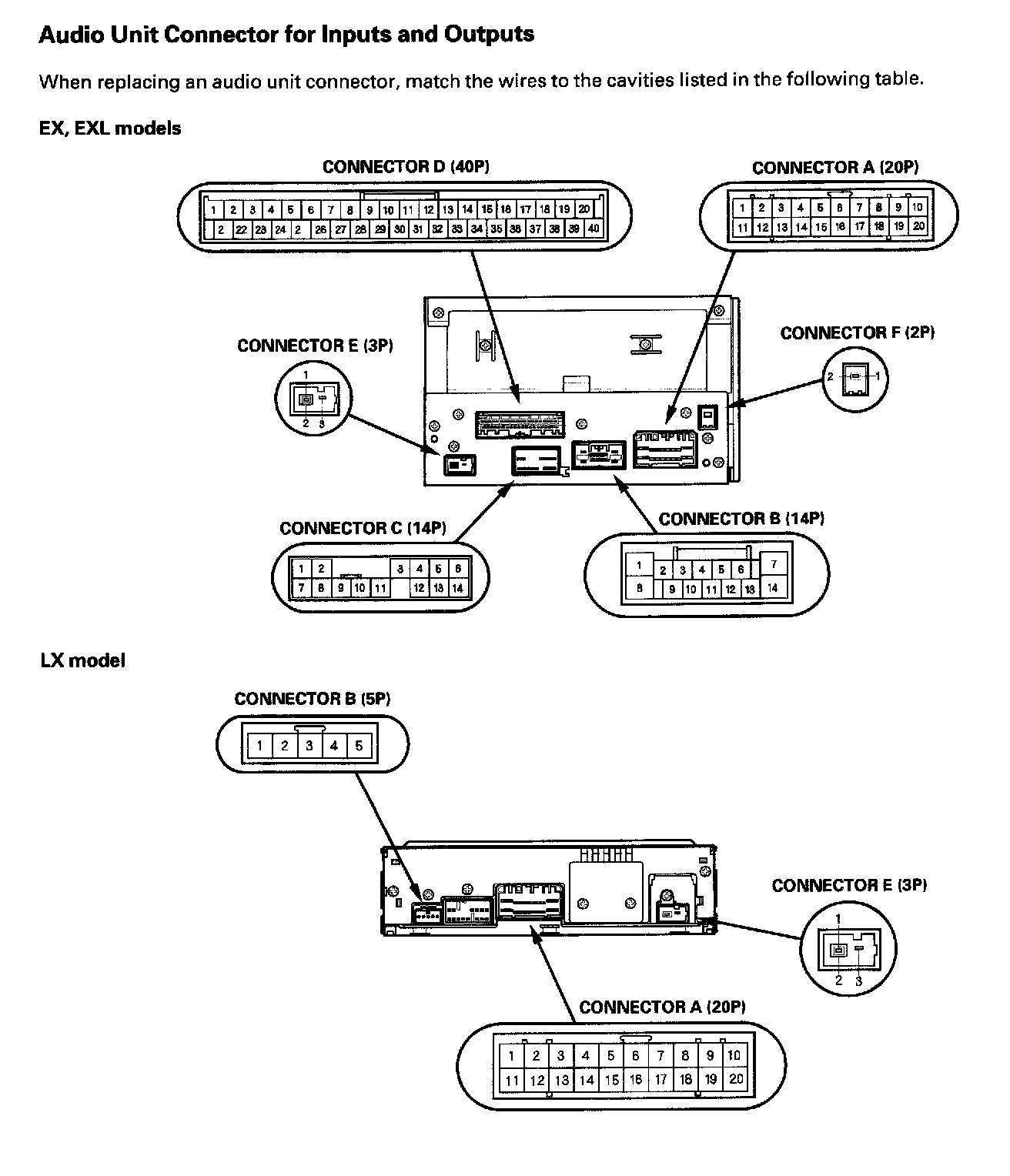

Audio Unit Connector For Inputs And Outputs Part 1:

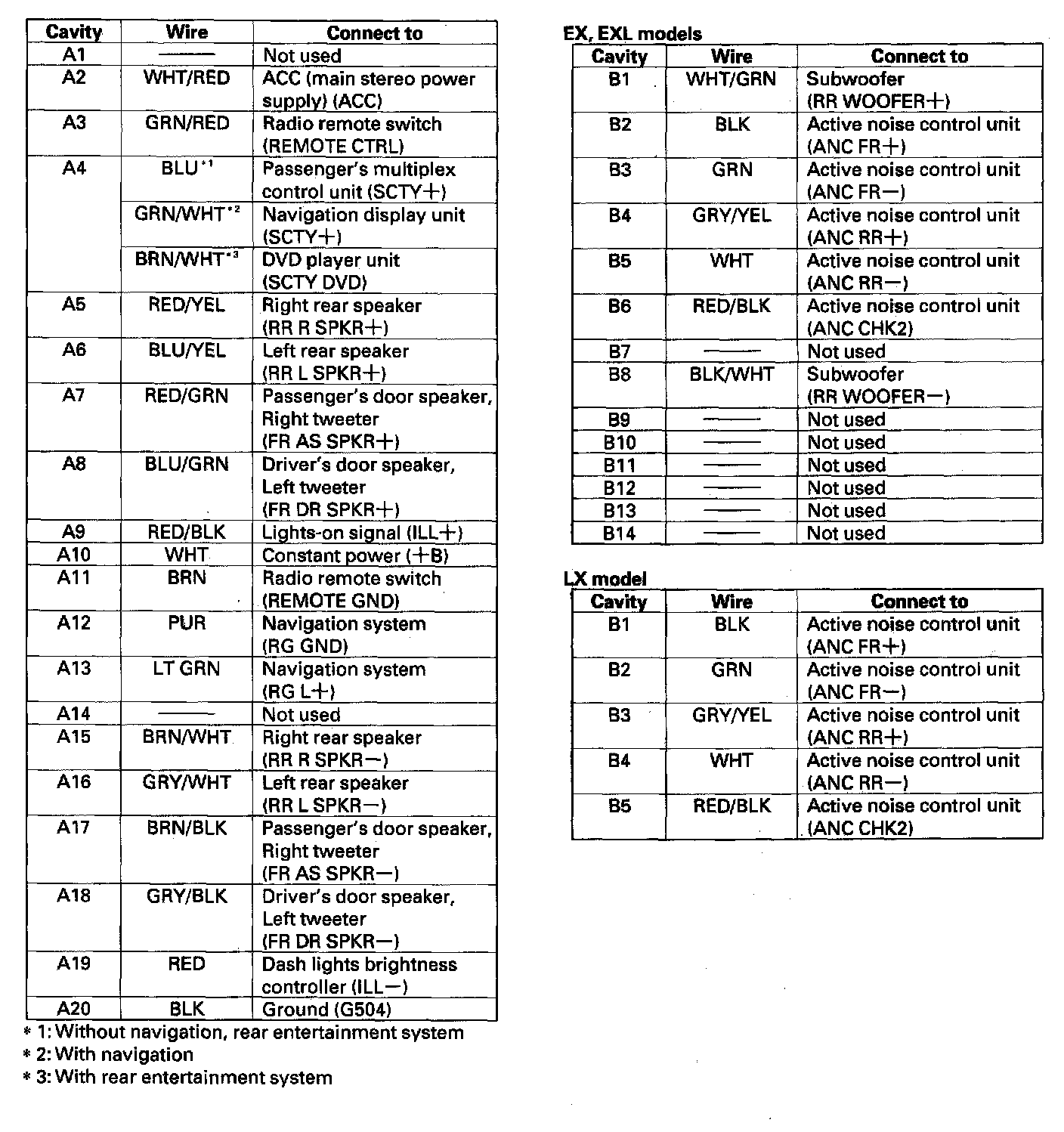

Audio Unit Connector For Inputs And Outputs Part 2:

Audio Unit Connector For Inputs And Outputs Part 3:

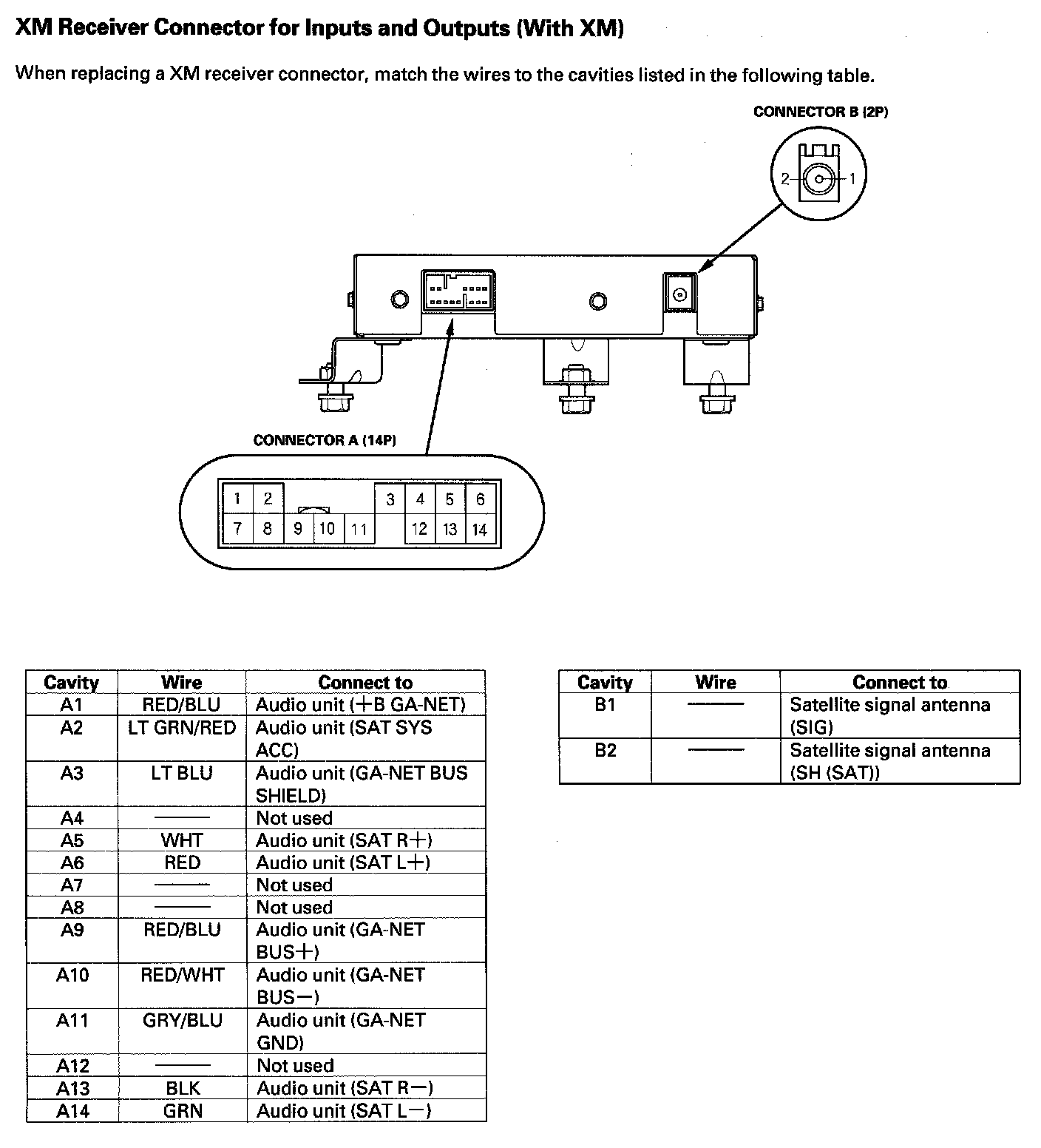

XM Receiver Connector For Inputs And Outputs [With XM]:

329. Audio Unit:

329. Audio Unit:

329. Audio Unit:

349. XM Receiver:
