Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector

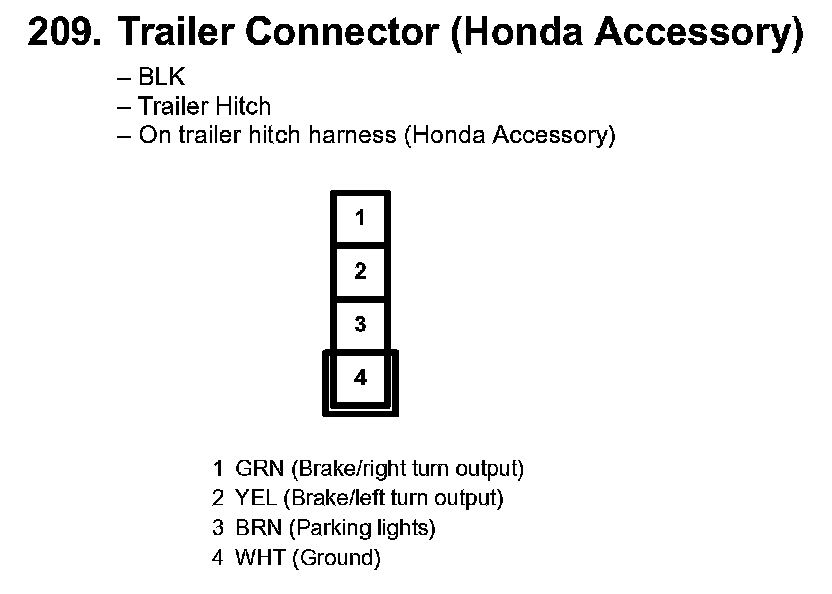

209. Trailer Connector(Honda Accessory):
