Power Steering Pump
Power Steering Pump

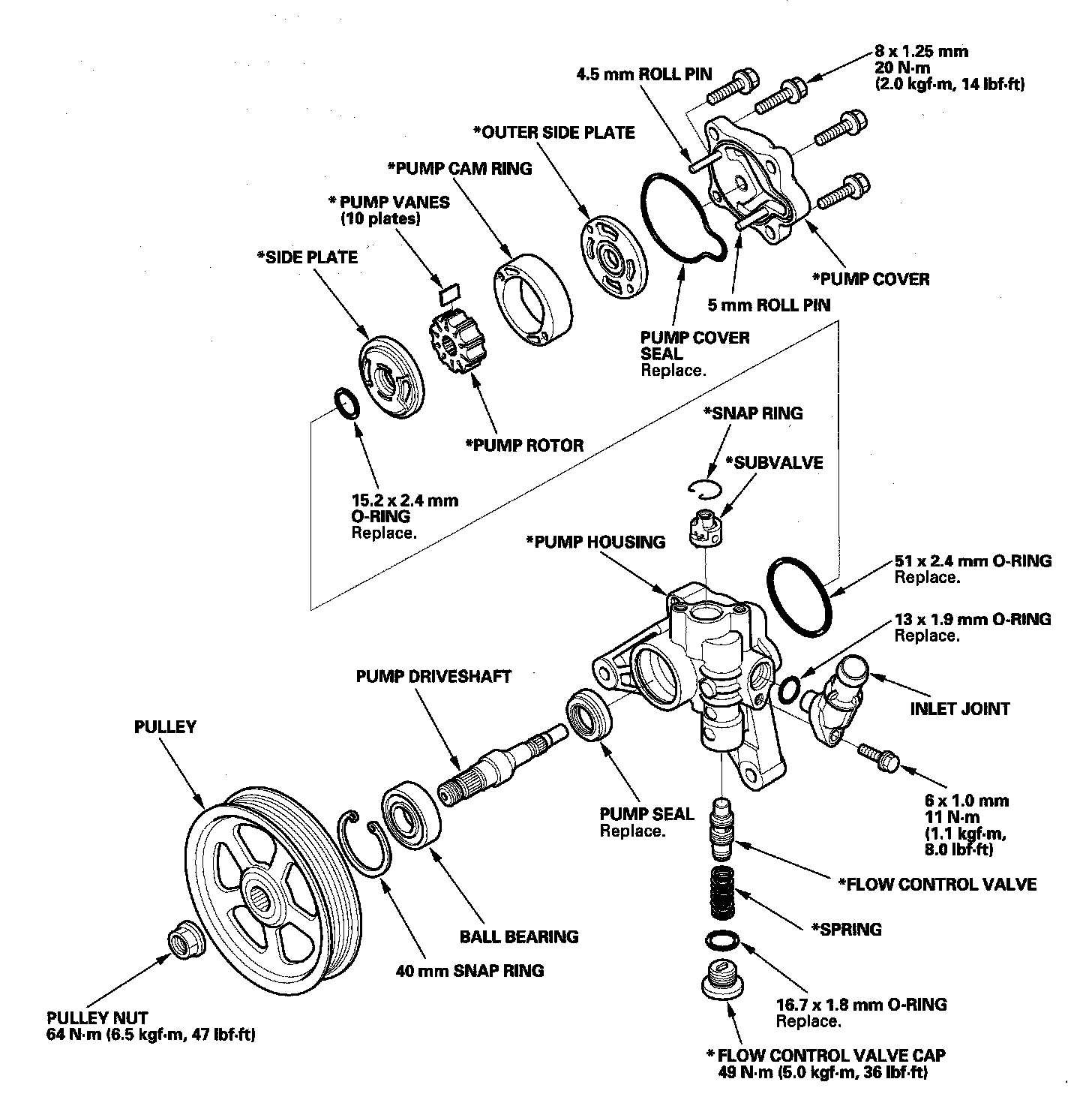

Exploded View
Replace the pump as an assembly if the parts indicated with asterisk (*) are worn or damaged.
Pump:
