Backup Lamp: Service and Repair

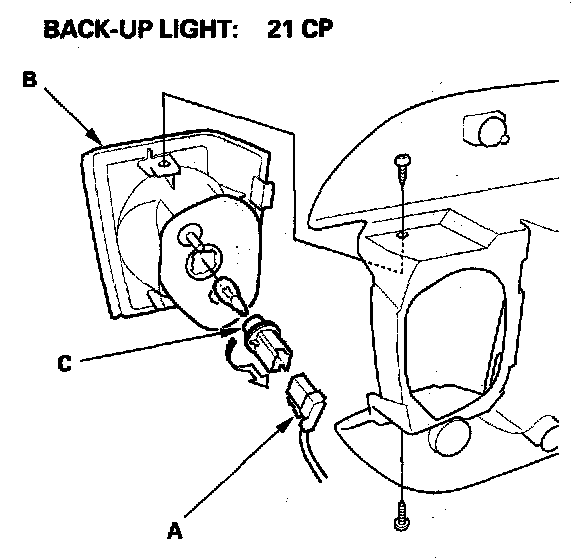

Back-up Light-Replacement

1. Open the tailgate and remove the maintenance lids from the tailgate.




2. Disconnect the 2P connector (A) from the back-Up light (B).
3. Turn the bulb socket (C) 45 degrees counterclockwise to remove it from the housing.
4. Remove the rear license plate trim.
5. Remove the two screws and the back-up light.
