Rear Individual Map Light Test
Rear Individual Map Light Test 1.
Turn the light switch OFF.
2.

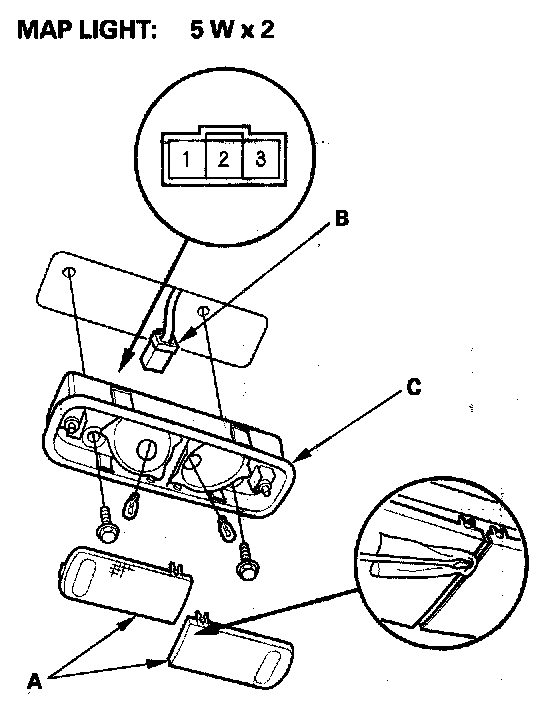

Carefully pry off the lenses (A) with a small screwdriver.
3.
Remove the two mounting screws.
4.
Disconnect the 3P connector (B) from the housing (C).
5.

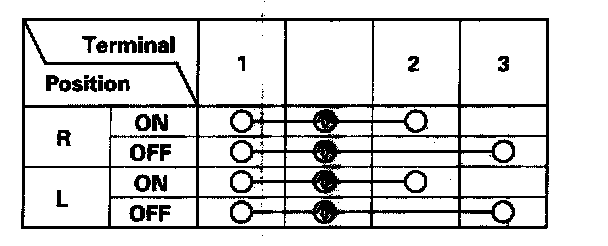

Check for continuity between the terminals in each switch position according to the table.
6.
Install in the reverse order of removal.
