Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>

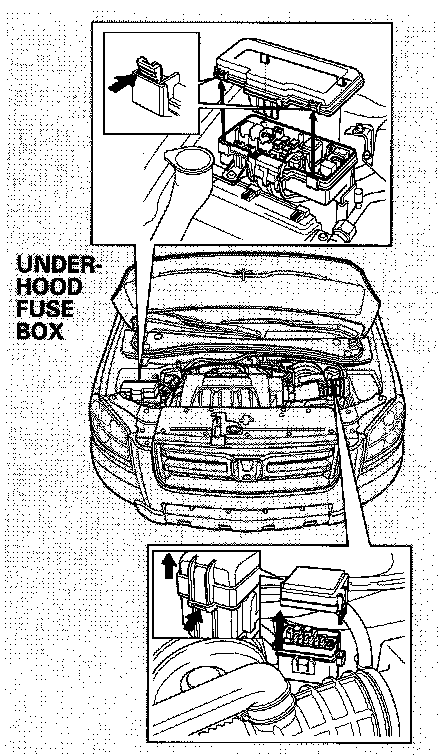

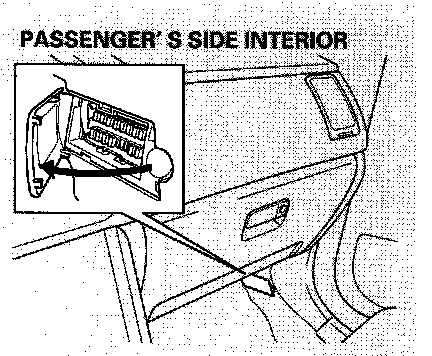

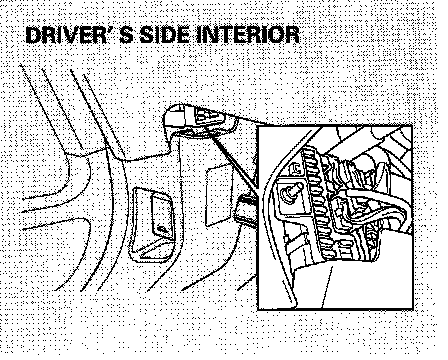

Locations
>>
Component Locations
>>
Maintenance Data
Maintenance Data
Locations

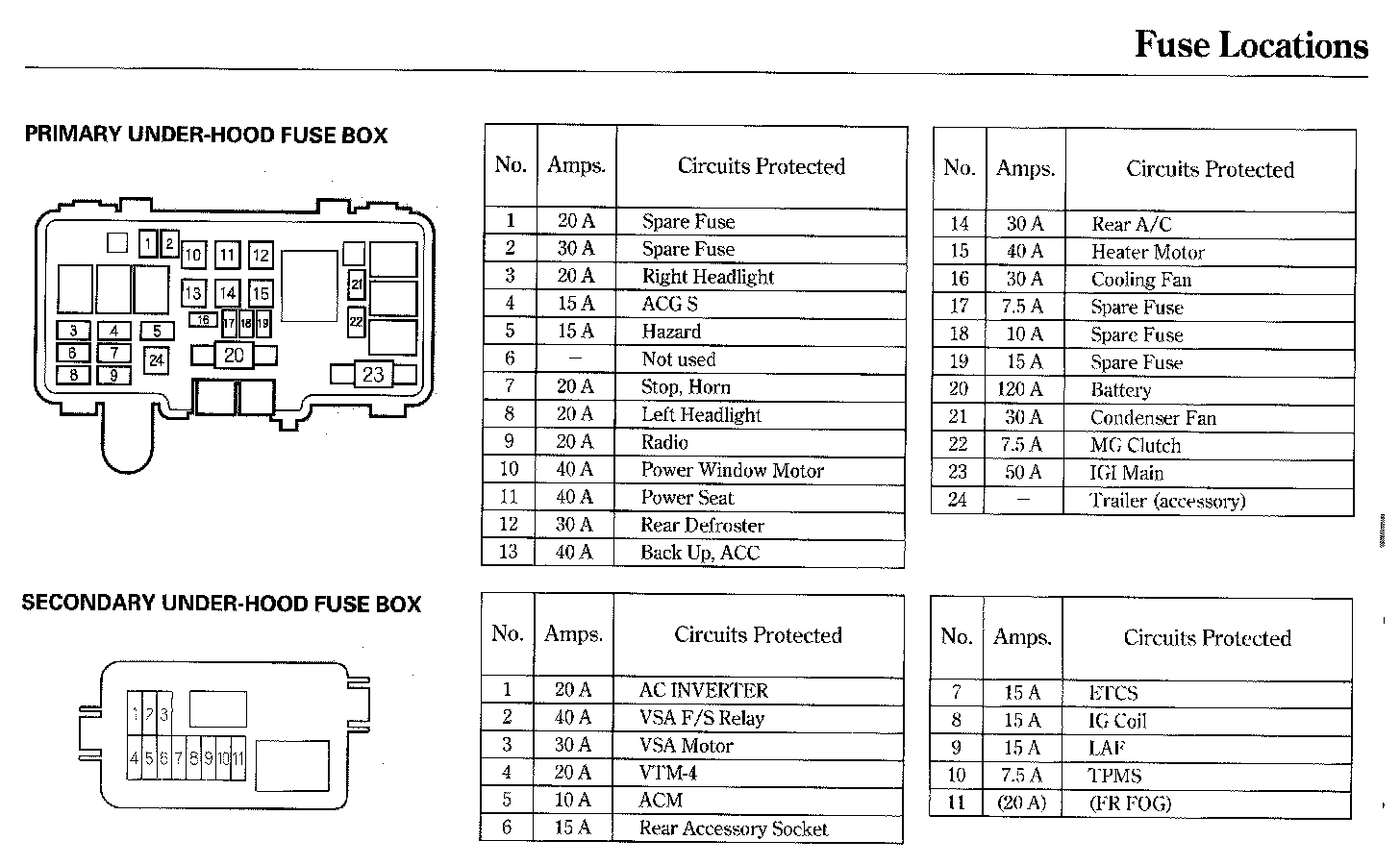

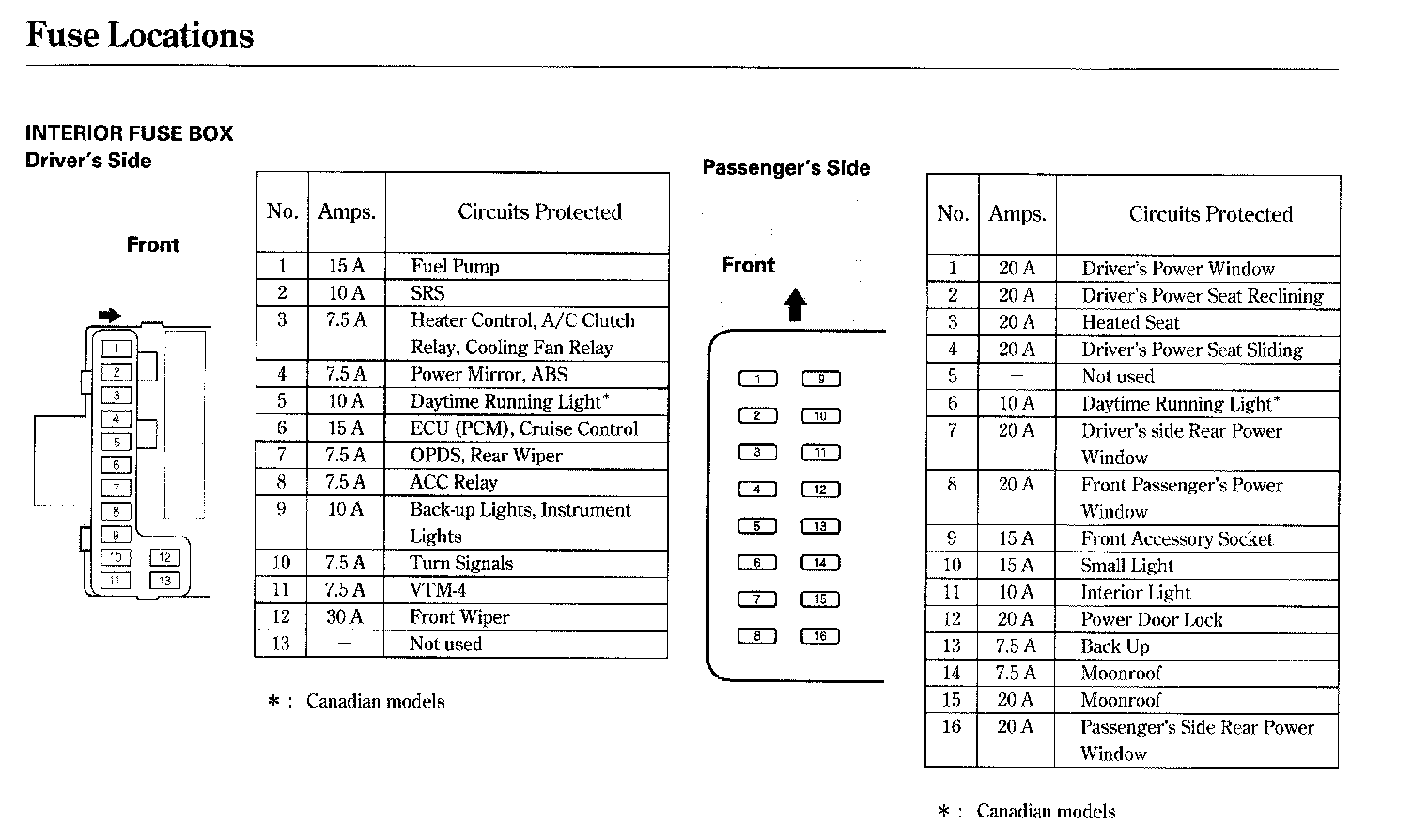

Fuse Details
