Fluid Line/Hose: Service and Repair

ATF Cooler Outlet Hose Replacement

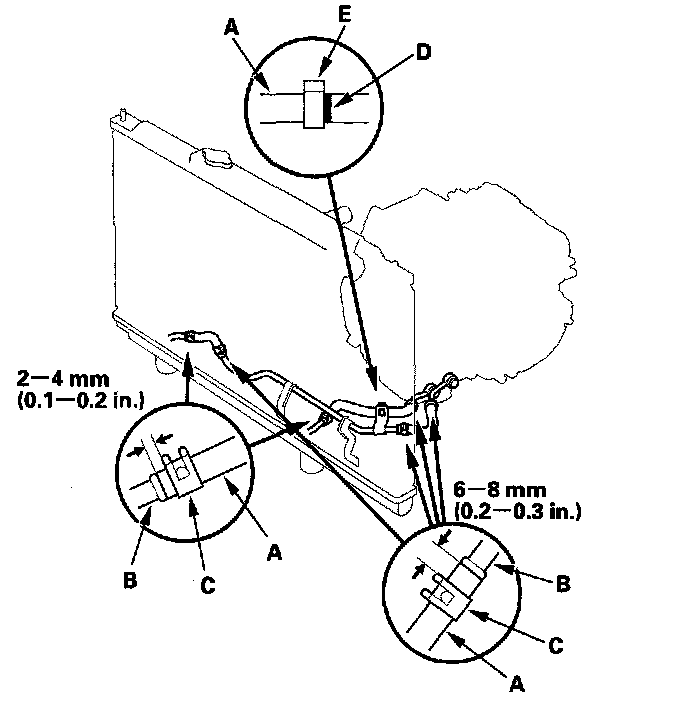

1. Connect the cooler hoses (A) to the ATF cooler lines (B) and ATF cooler, and secure them with the clips (C).
2. Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
