Shift Lever Installation

Shift Lever Installation
SRS components are located in this area. Review the SRS component locations, and the precautions and procedures in the SRS before performing repairs or service.





1. Install the shift lever assembly (A) on the steering column, and install the harness clamp (B).
2. Connect the shift lock solenoid connector (C) and park pin switch connector (D).

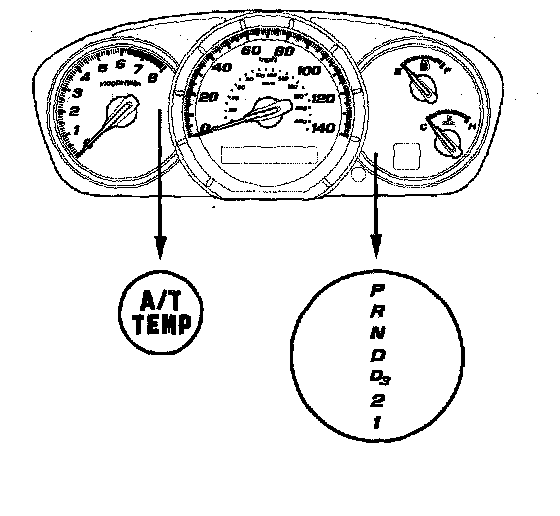

3. Turn the ignition switch ON (II), and verify that the R position indicator comes on.

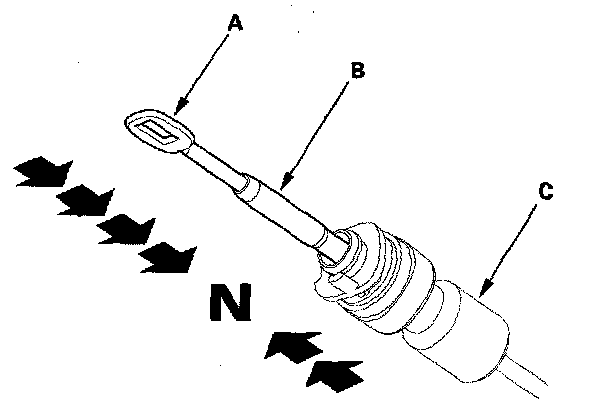

4. If necessary, push the shift cable (A) until it stops, then release it. Pull the shift cable back two steps so that the shift position is in N. Do not hold the shift cable guide (B) and damper (C) to adjust the shift position.
5. Turn the ignition switch OFF.





6. Place the shift lever in the N position, then insert a 6.0 mm (0.24 inch) pin (A) through the positioning hole (B) on the detent plate, and into the positioning hole (C) on the control bracket. The shift lever is secured in the N position.





7. Align the socket holder (A) on the shift cable (B) with the slot in the socket holder bracket (C), then slide the holder into the bracket. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fining (G) at the bottom of the stud. Rotate the holder a quarter turn to secure the shift cable. Do not install the shift cable by twisting the shift cable guide (H) and damper (I).

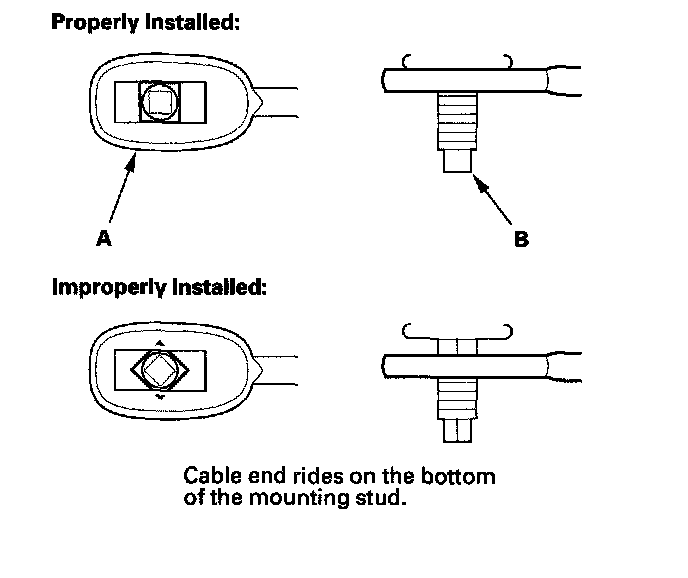

8. Verify that the shift cable end (A) is properly installed on the mounting stud (B).





9. If improperly installed, remove the shift cable from the socket holder bracket, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the socket holder bracket.
10. Install and tighten the nut.
11. Remove the 6.0 mm (0.24 inch) pin that was installed to hold the shift lever.
12. Move the shift lever to each position, and verify that the A/T gear position indicator follows the transmission range switch.
13. Install the instrument panel.
14. Install the steering column upper and lower covers.
