Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor Position Sensor >> Locations

Power Seat Motor Position Sensor: Locations

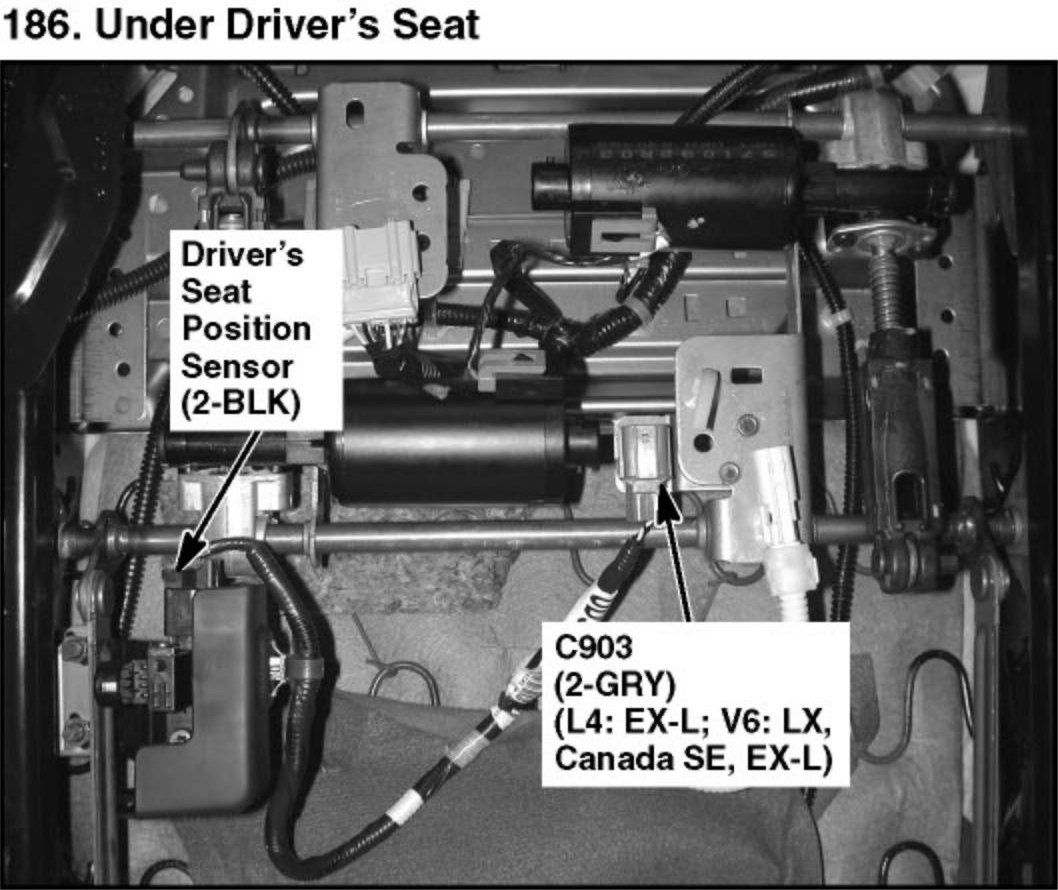

186. Under Driver's Seat:



SRS Component Location Index:
