Trunk / Liftgate Switch: Locations

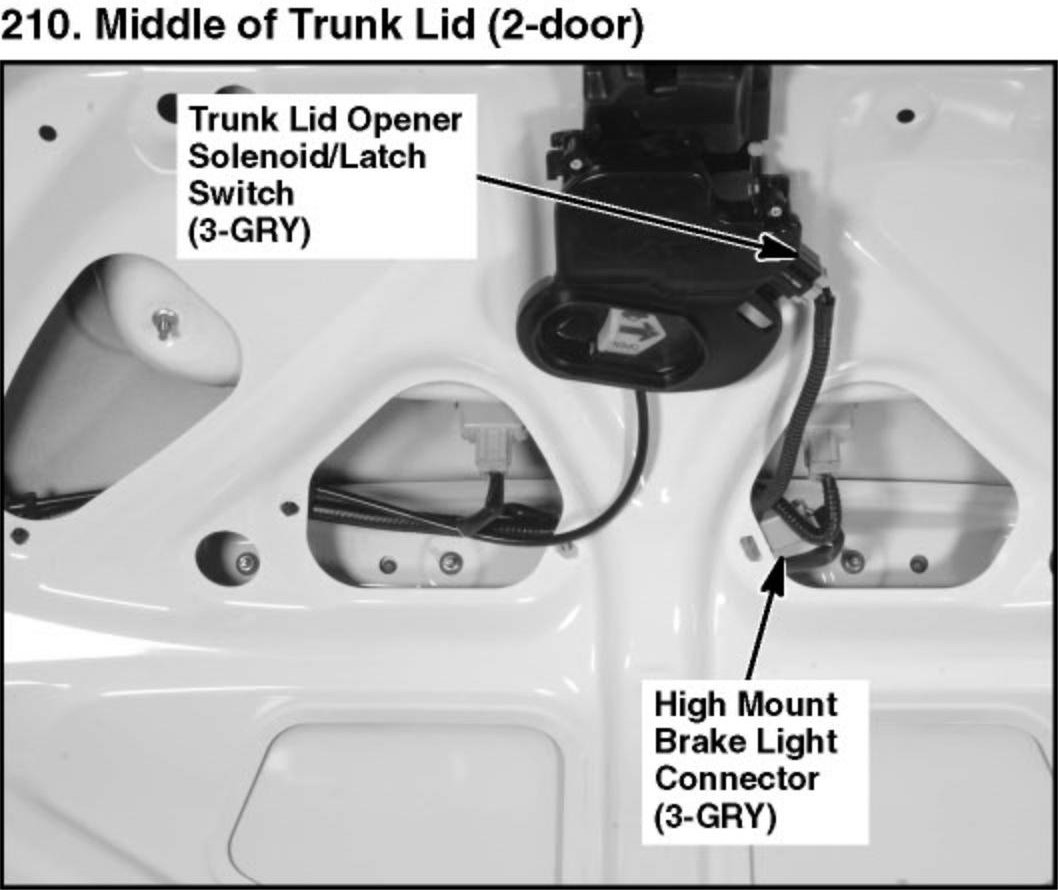

210. Middle of Trunk Lid (2-door):

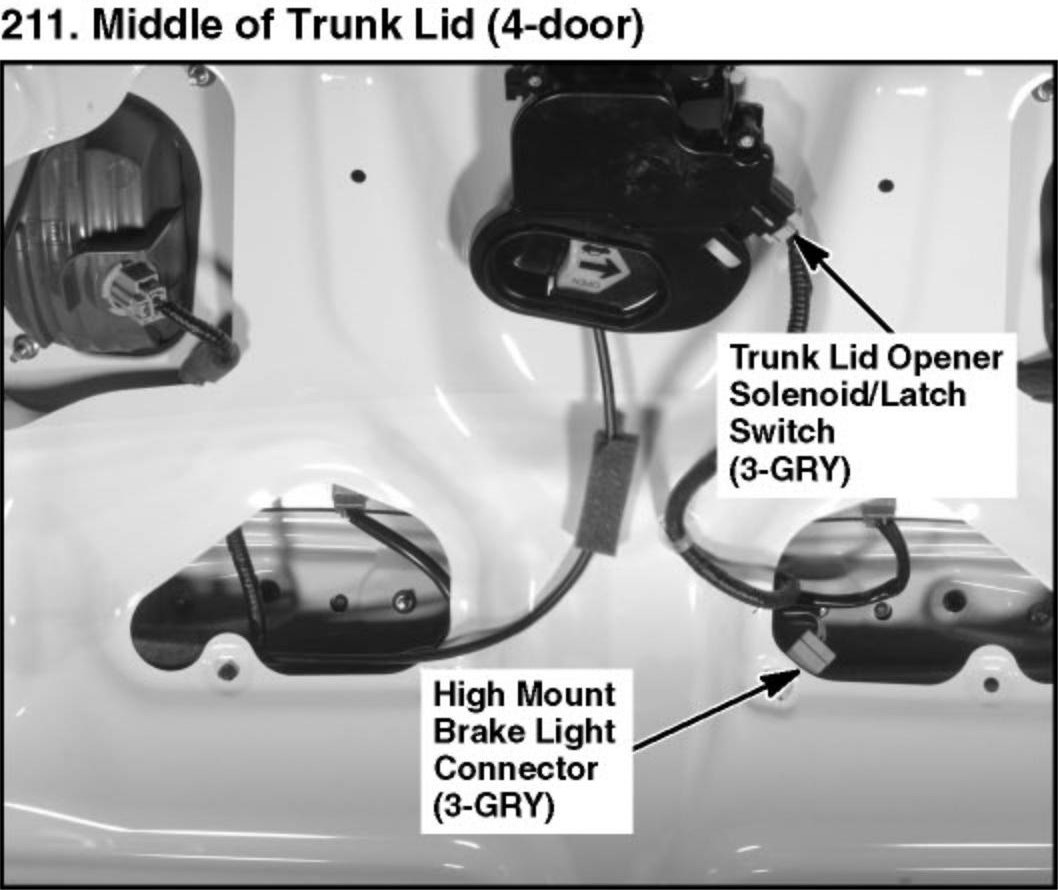

211. Middle of Trunk Lid (4-door):

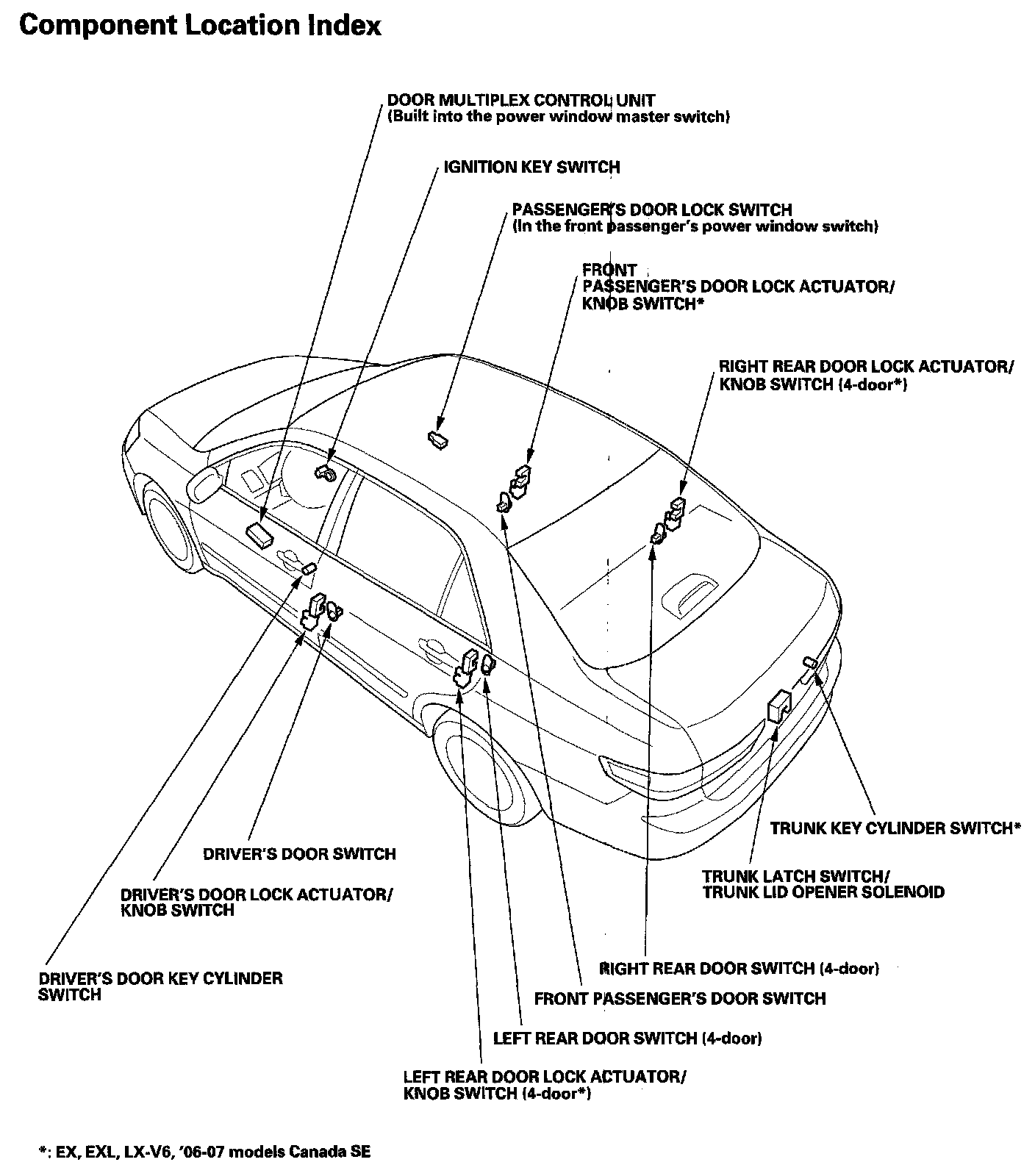

Keyless/Power Door Locks/Security System Component Location Index:

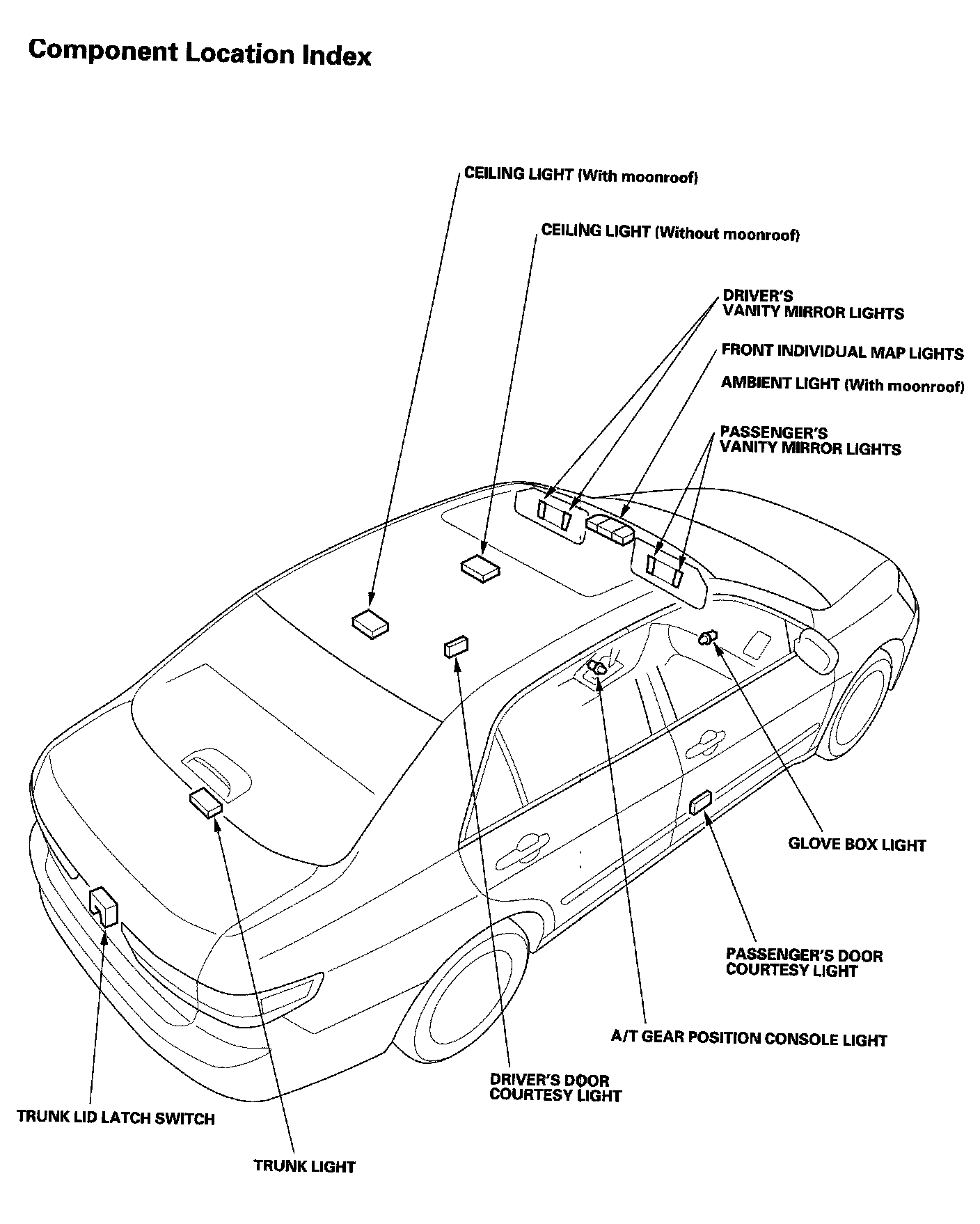

Interior Lights Component Location Index:
