Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Roof Wire Harness (4-door)

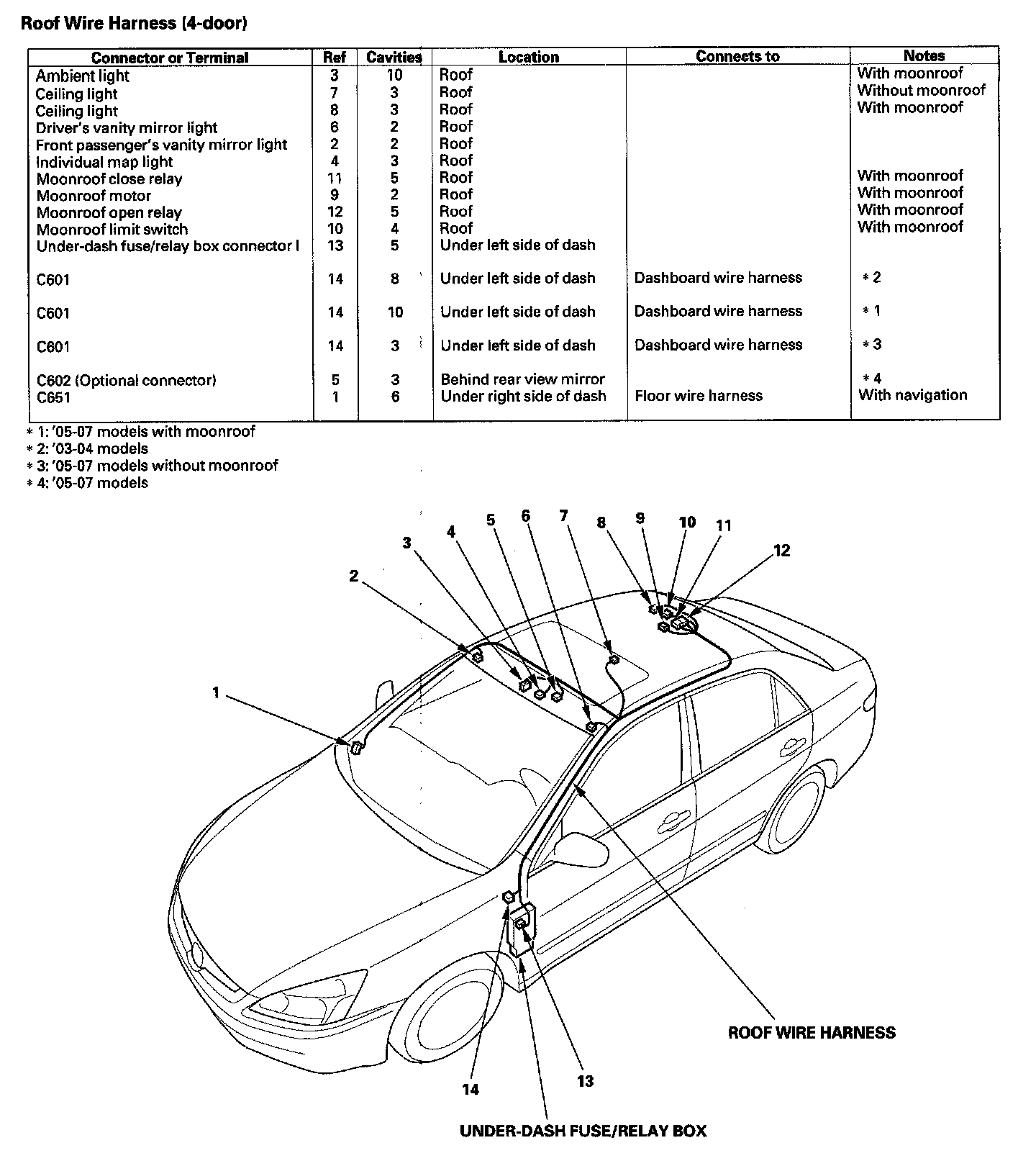

Roof Wire Harness (4-door)

Roof Wire Harness (4-door):

Roof Wire Harness (4-door):
