Rear

Knuckle/Hub Replacement

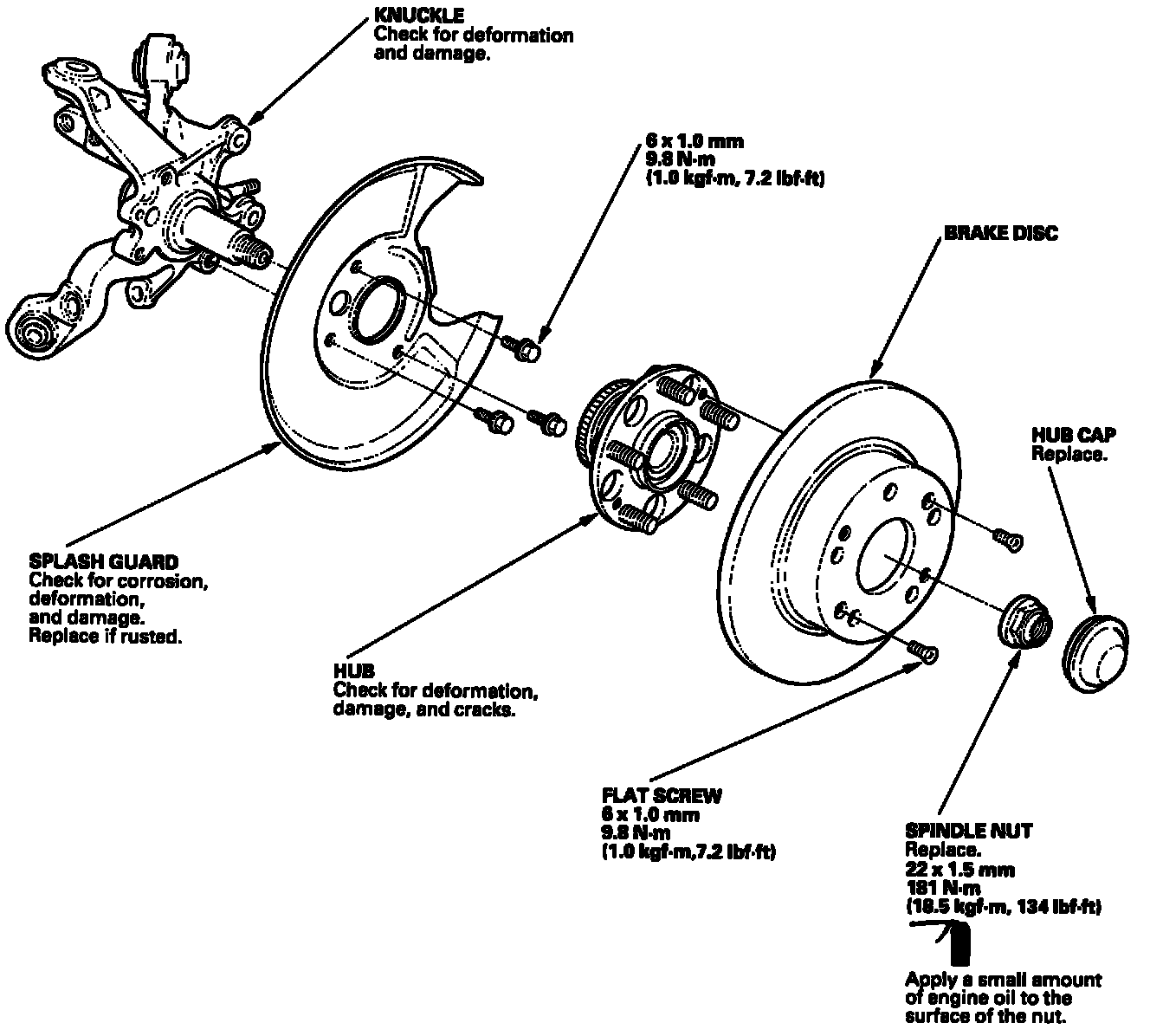

Exploded View-Disc Brake

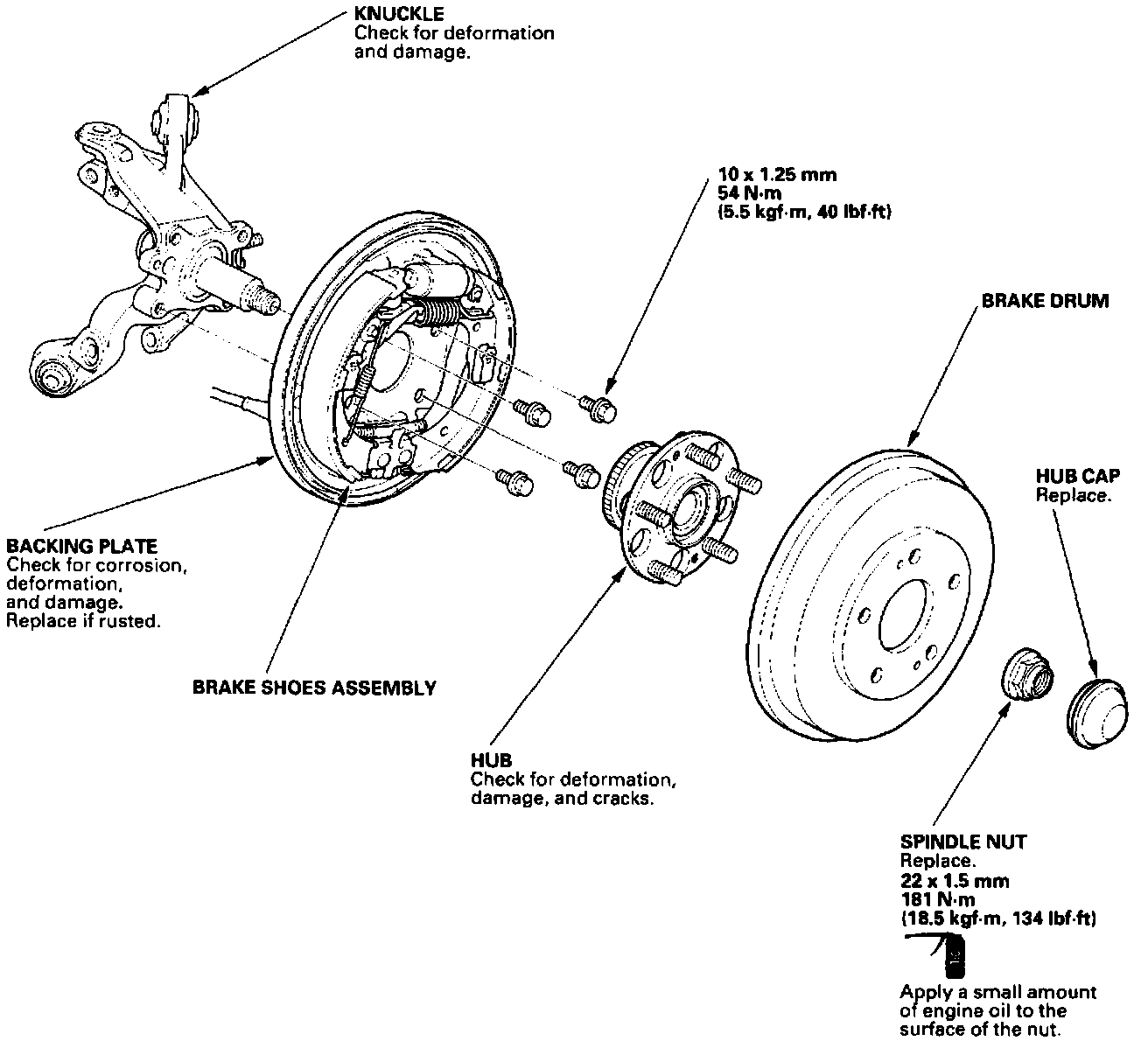

Exploded View-Drum Brake

Special Tools Required
Ball joint remover, 28 mm 07MAC-SL00200
Hub Replacement-Disc Brake

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations.

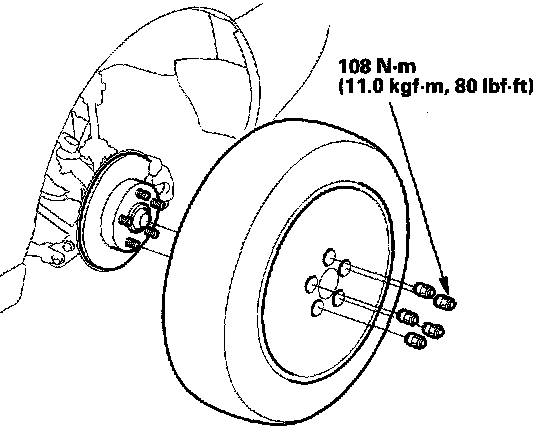

2. Remove the wheel nuts, and rear wheel.

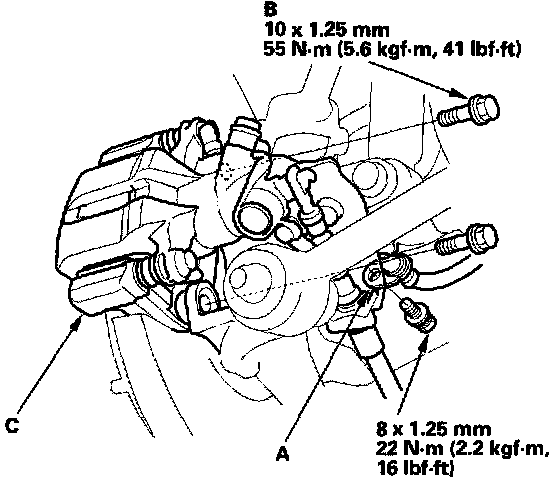

3. Remove the brake hose mounting bracket (A).
4. Remove the brake caliper bracket mounting bolts (B), and remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose with force.

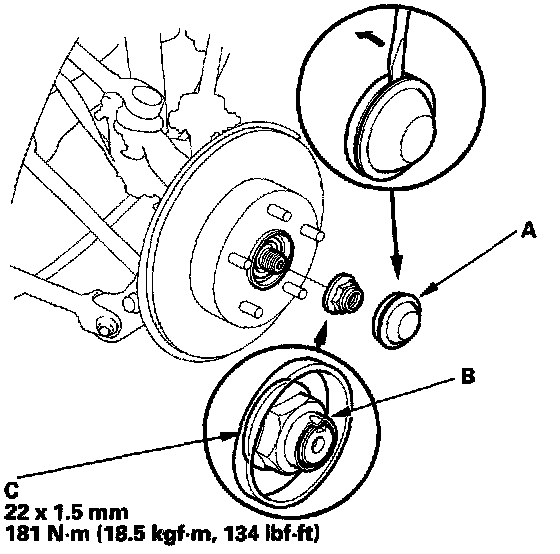

5. Remove the hub cap (A).
6. Raise the stake (B), and remove the spindle nut (C).

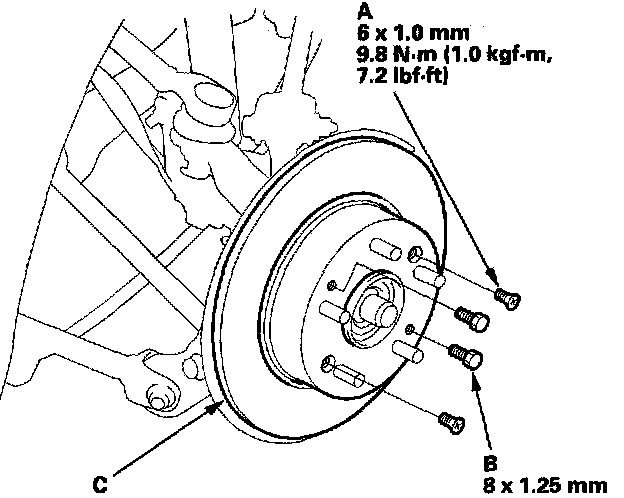

7. Remove the 6 mm brake disc retaining screws (A).
8. Screw two 8 X 1.25 mm bolts (B) into the disc to push it away from the hub. Turn each bolt two turns at a time to prevent cocking the disc excessively.
9. Remove the brake disc (C).

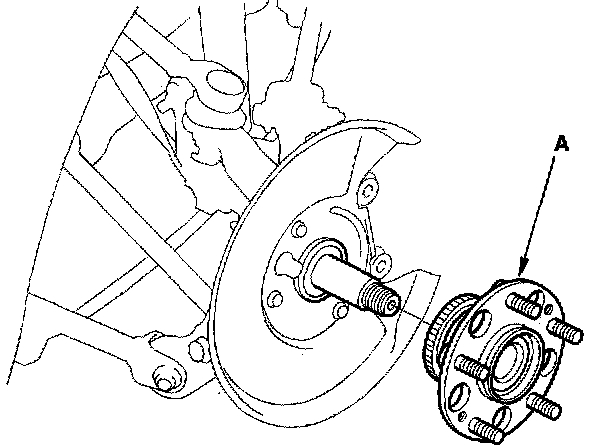

10. Remove the hub bearing unit (A).
11. Install the hub bearing unit in the reverse order of removal, and note these items:
^ Use a new spindle nut on reassembly.
^ Before installing the spindle nut, apply a small amount of engine oil to seating surface of the nut.
^ After tightening, use a drift to stake the spindle nut shoulder against the driveshaft.
^ Before installing the brake disc, clean the matching surfaces of the hub bearing unit and brake disc.
^ Before installing the wheel, clean the mating surfaces of the brake disc and the inside of the wheel.
^ Wash the spindle thoroughly in high flash point solvent before reassembly.

Hub Replacement-Drum Brake
1. Raise the rear of the vehicle, and support it with safety stands in the proper locations.

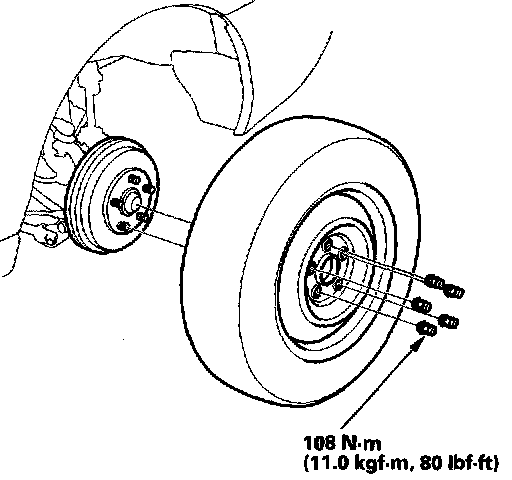

2. Remove the wheel nuts, and rear wheel.

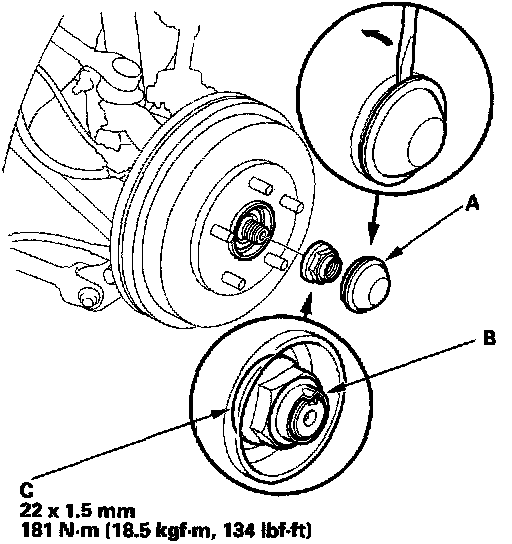

3. Remove the hub cap (A).
4. Raise the stake (B), and remove the spindle nut (C).

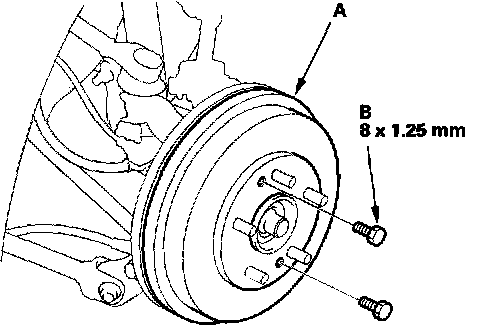

5. Release the parking brake lever, and remove the brake drum (A). Screw two 8X1.25 mm bolts (B) into the drum to push it away from the hub. Turn each bolt two turns at a time to prevent cocking the drum excessively.

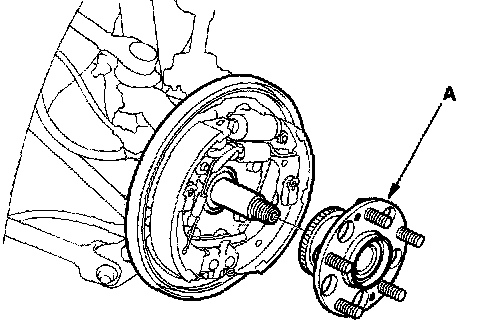

6. Remove the hub bearing unit (A).
7. Install the hub bearing unit in the reverse order of removal, and note these items:
^ Wash the spindle thoroughly in high point solvent before reassembly.
^ Use a new spindle nut reassembly.
^ Before installing the spindle nut, apply a small amount of engine oil to the seating surface of the nut.
^ After tightening, use a drift to stake the spindle nut shoulder against the driveshaft.
^ Before installing the brake drum, clean the matching surfaces of the hub bearing unit and brake drum.
^ Before installing the wheel, clean the mating surfaces of the brake drum and the inside of the wheel.

Knuckle Replacement-Disc Brake
1. Remove the hub bearing unit.

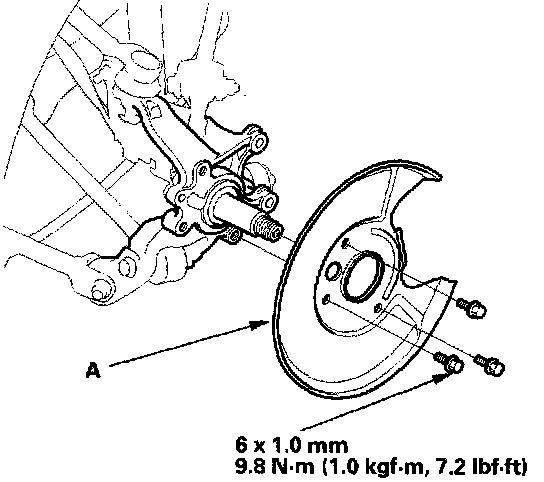

2. Remove the splash guard (A).

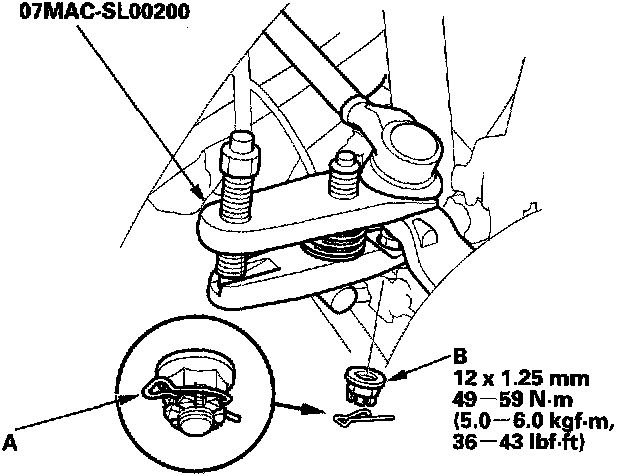

3. Remove the clip (A) from the upper arm ball joint, and loosen the nut (B).

NOTE: During installation, install the new clip after tightening the nut as shown.

4. Disconnect the upper arm ball joint from the knuckle using the special tool.

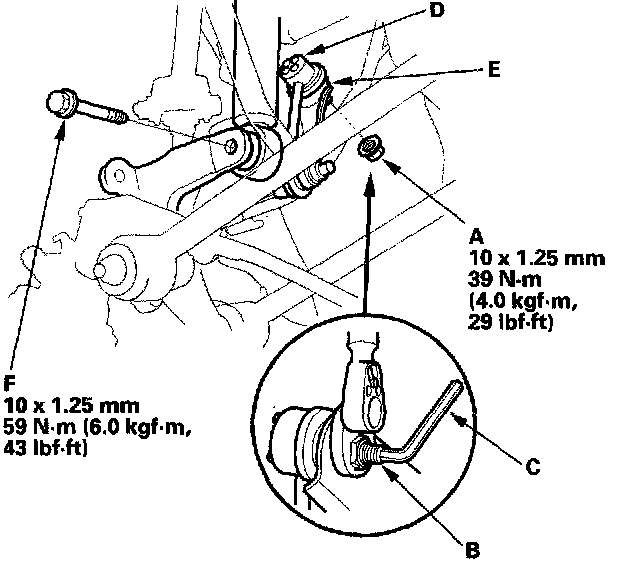

5. Remove the flange nut (A) while holding the joint pin (B) with a hex wrench (C), and disconnect the stabilizer link (D) from the stabilizer link bracket (E).
6. Remove the damper lower mounting bolt (F) and disconnect the damper from the knuckle.

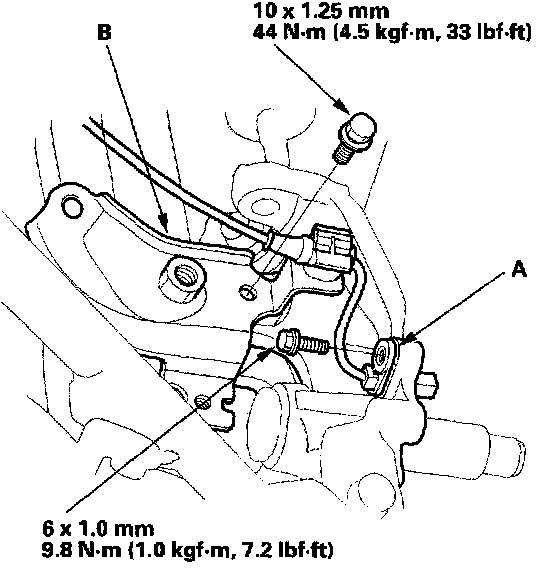

7. Remove the wheel sensor (A) from the knuckle. Do not disconnect the wheel sensor connector.
8. Remove the stabilizer link bracket (B) from the knuckle.

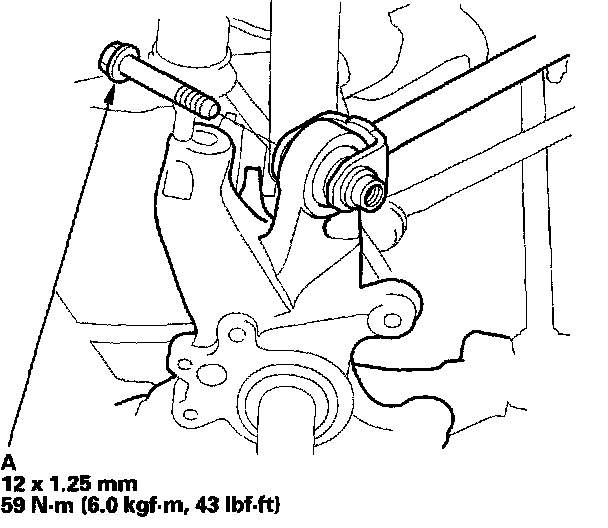

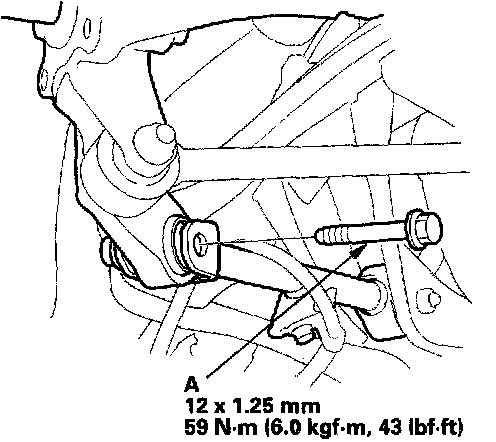

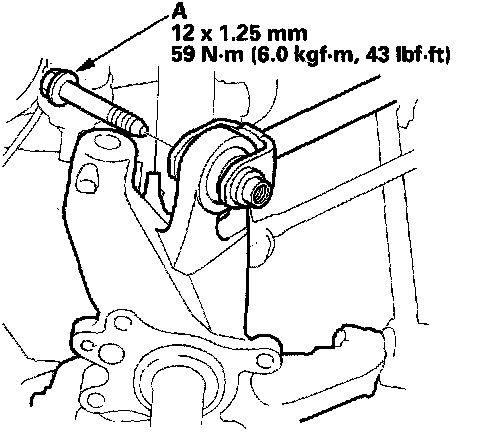

9. Remove the leading arm mounting bolt (A) from the knuckle.

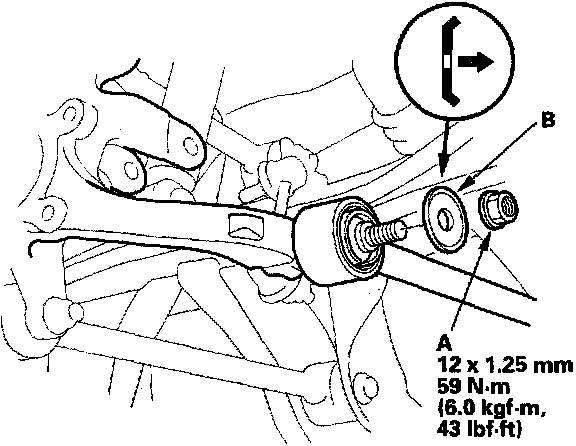

10. Remove the control arm mounting nut (A) and washer (B).

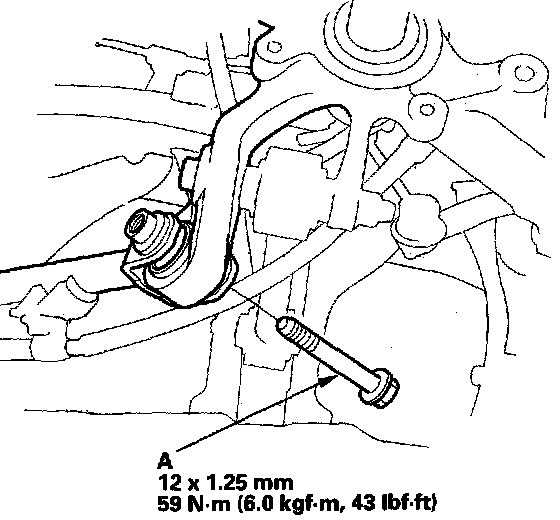

11. Remove the trailing arm mounting bolt (A) from the knuckle.

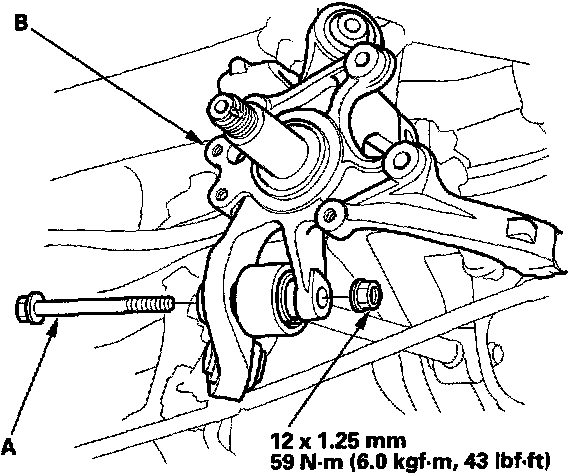

12. Remove the lower arm mounting bolt (A), and remove the knuckle (B).
13. Install the knuckle in the reverse order of removal, and note these items:
^ Be careful not to damage the ball joint boot when connecting the upper arm to the knuckle.
^ Use a new lower arm mounting nut and control arm mounting nut on reassembly.
^ Tighten the castle nut to the lower torque value, then tighten it only far enough to align the slot with the hole in the stud. Do not align the castle nut by loosening it.
^ Tighten all mounting hardware to the specified torque values.
^ Before installing the wheel, clean the mating surface on the brake disc and the inside of the wheel.
^ Check the wheel alignment, and adjust it if necessary.

Knuckle Replacement-Drum Brake
1. Remove the hub bearing unit.





2. Remove the clip (A) from the upper arm ball joint, and loosen the nut (B).

NOTE: During installation, insert the new clip into the ball joint pin as shown.

3. Disconnect the upper arm ball joint from the knuckle using the special tool.

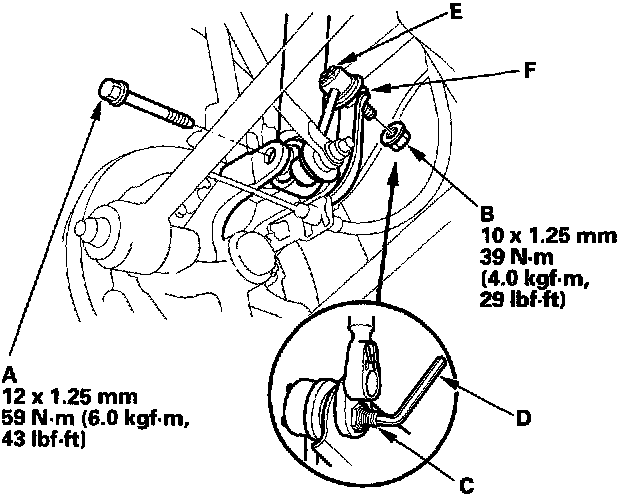

4. Remove the damper lower mounting bolt (A), and disconnect the damper from the knuckle.
5. Remove the flange nut (B) while holding the joint pin (C) with a hex wrench (D) and disconnect the stabilizer link (E) from the stabilizer link bracket (F).

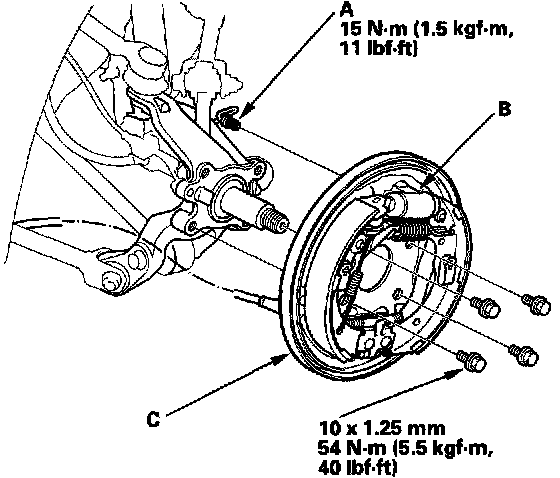

6. Disconnect the brake line (A) from the wheel cylinder (B). Remove the flange bolts and rear brake assembly (C) from the knuckle.





7. Remove the stabilizer link bracket (A) from the knuckle.
8. Remove the wheel sensor (B) from the knuckle. Do not disconnect the wheel sensor connector.





9. Remove the leading arm mounting bolt (A) from the knuckle.

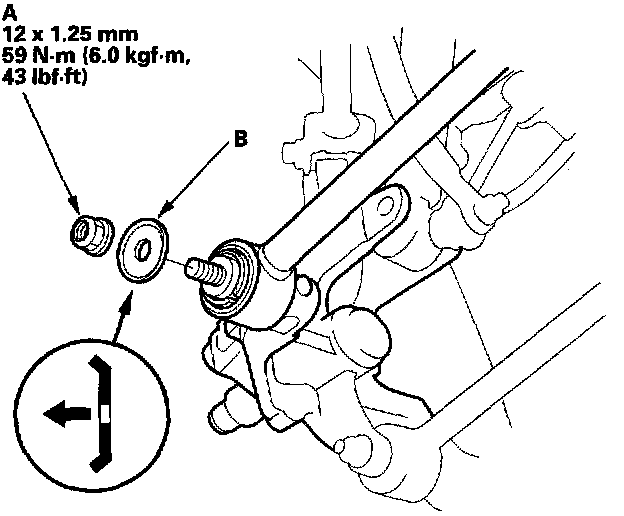

10. Remove the control arm mounting nut (A) and washer (B) from the knuckle.





11. Remove the trailing arm mounting bolt (A) from the knuckle





12. Remove the lower arm mounting bolt (A), and remove the knuckle (B).
13. Install the knuckle in the reverse order of removal, and note these items:
^ Be careful not to damage the ball joint boot when connecting the upper arm to the knuckle.
^ Use a new lower arm mounting nut and control arm mounting nut on reassembly.
^ Tighten the castle nut to the lower torque specification, then it only far enough to align the slot with the hole in the stud. Do not align the castle nut by loosening it.
^ Tighten all mounting hardware to the specified torque values.
^ Before installing the wheel, clean the mating surface on the brake drum and the inside of the wheel.
^ Check the wheel alignment, and adjust it if necessary.
^ Fill the master cylinder reservoir to the MAX (upper) level line, and bleed the brake system. Check for a leak at the brake line to wheel cylinder, and retighten if necessary.
