System Diagram

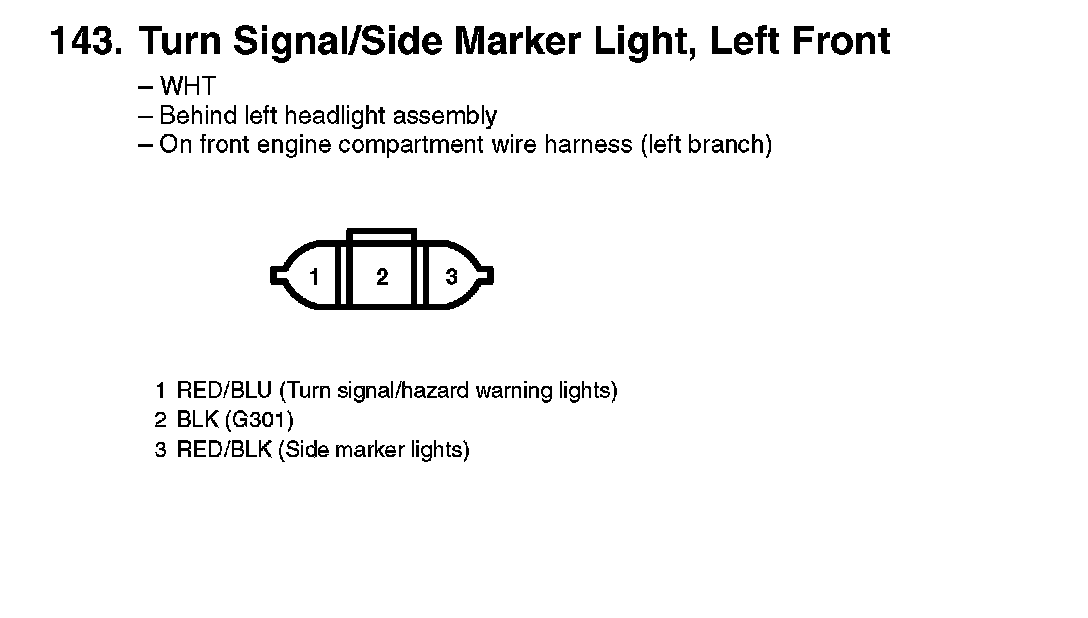

143. Turn Signal/Side Marker Light, Left Front:

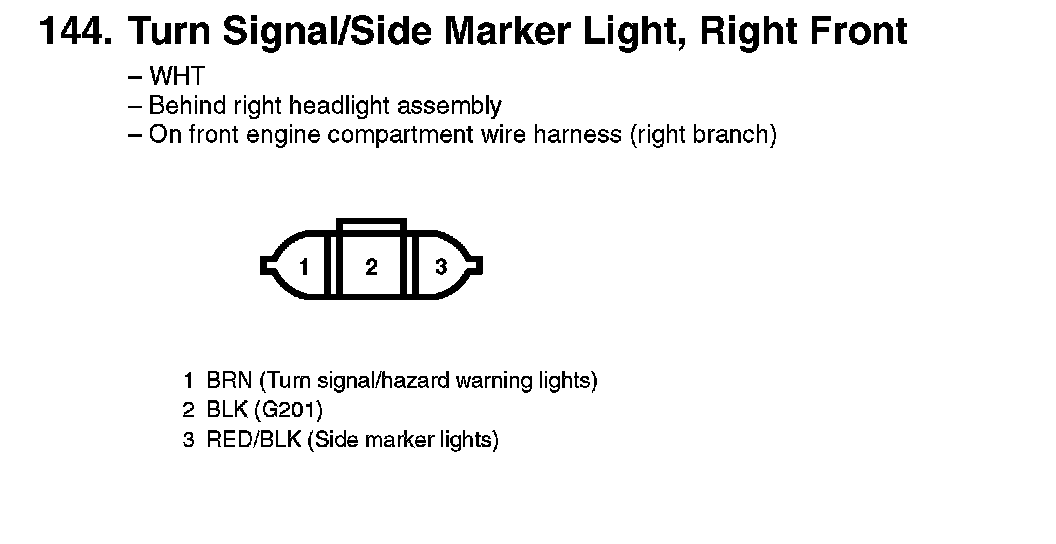

144. Turn Signal/Side Marker Light, Right Front:
