Mirrors
>>
System Diagram
System Diagram
202. Power Mirror, Left (LX, SE, EX, EX-L):

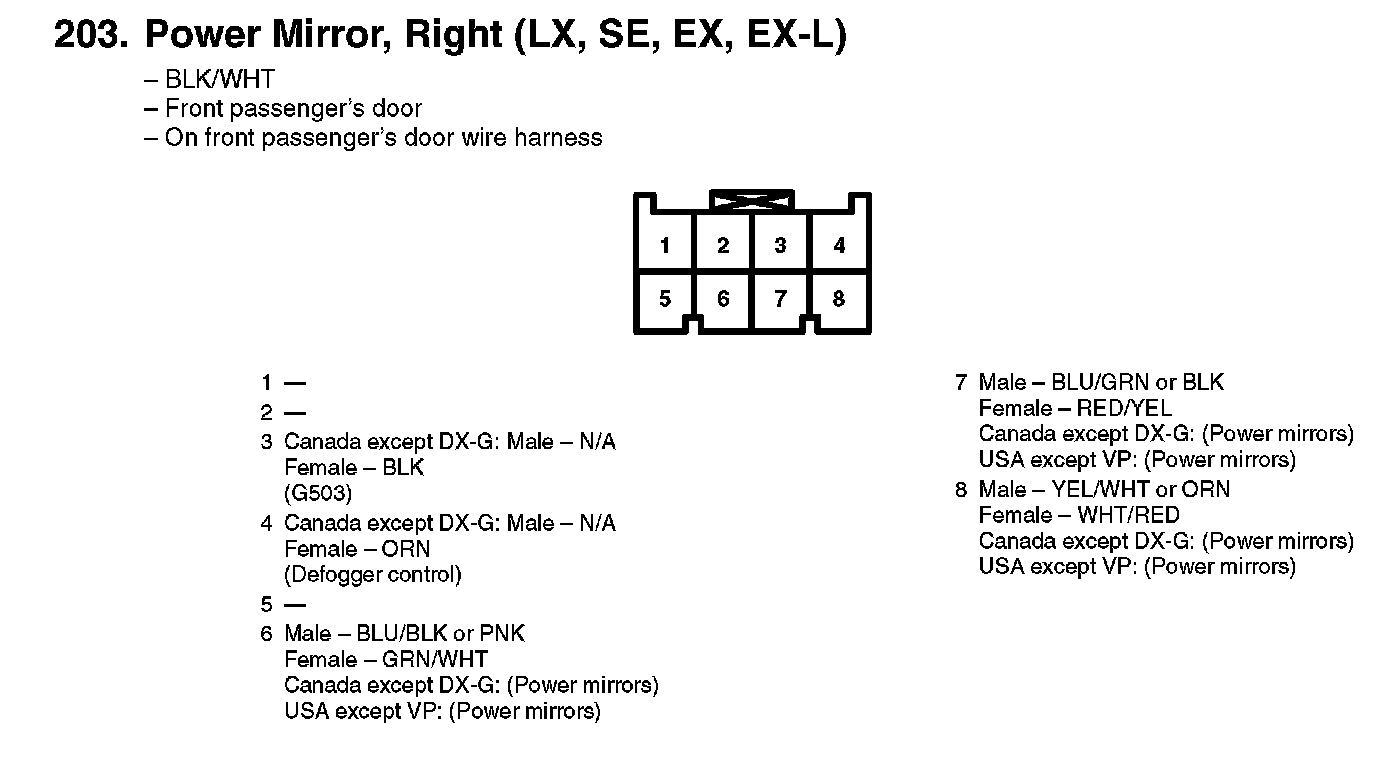

203. Power Mirror, Right (LX, SE, EX, EX-L):

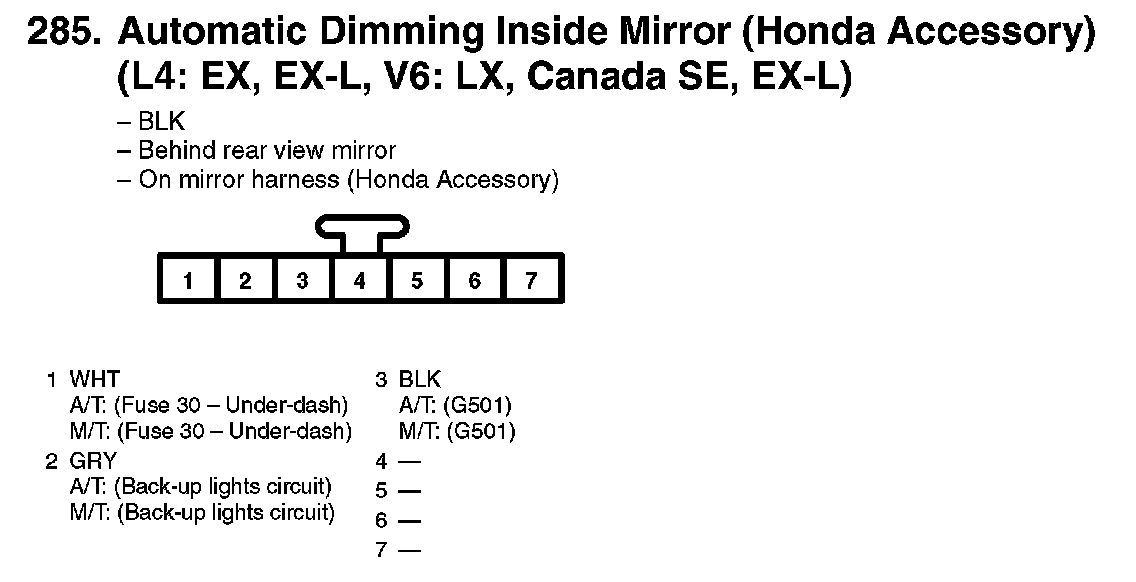

285. Automatic Dimming Inside Mirror (Honda Accessory) (L4: EX, EX-L, V6: LX, Canada SE, EX-L):
