Audio System Circuit Diagram

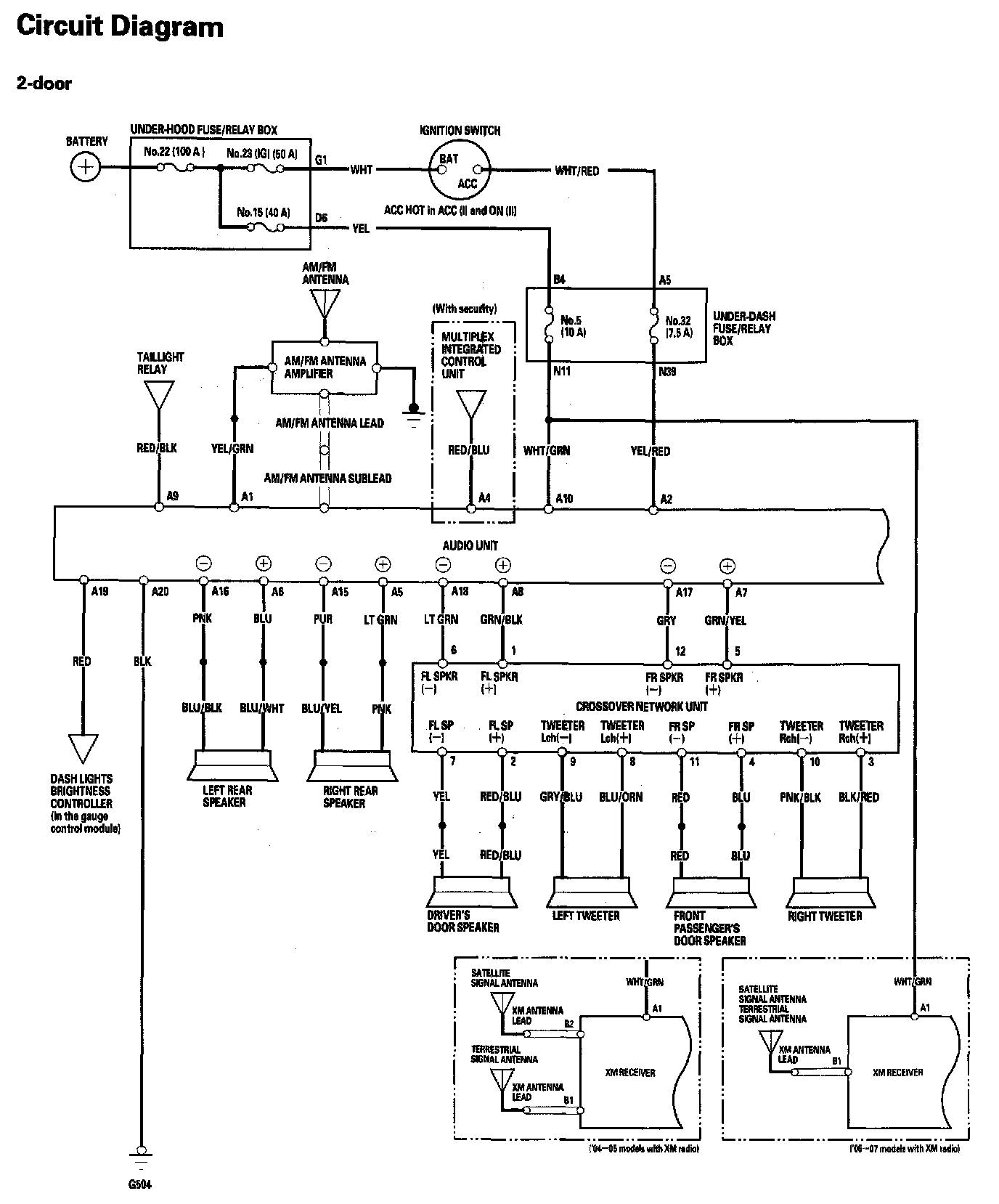

Audio System - Circuit Diagram Part 1:

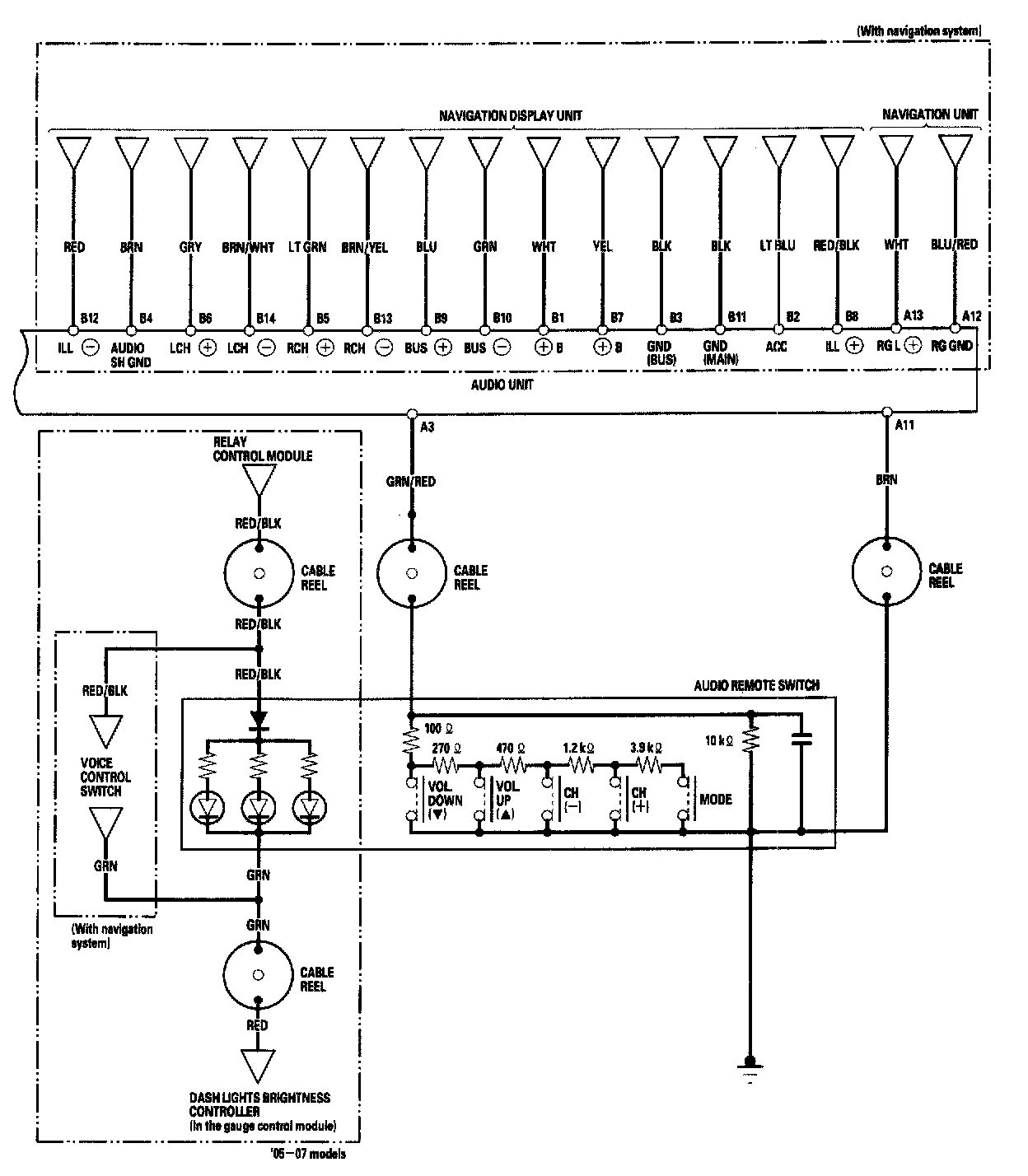

Audio System - Circuit Diagram Part 2:
