F-CAN Communication Line (Low) (Ex-L Navigation, V6)
F-CAN Communication Line (Low) (Ex-L Navigation, V6)

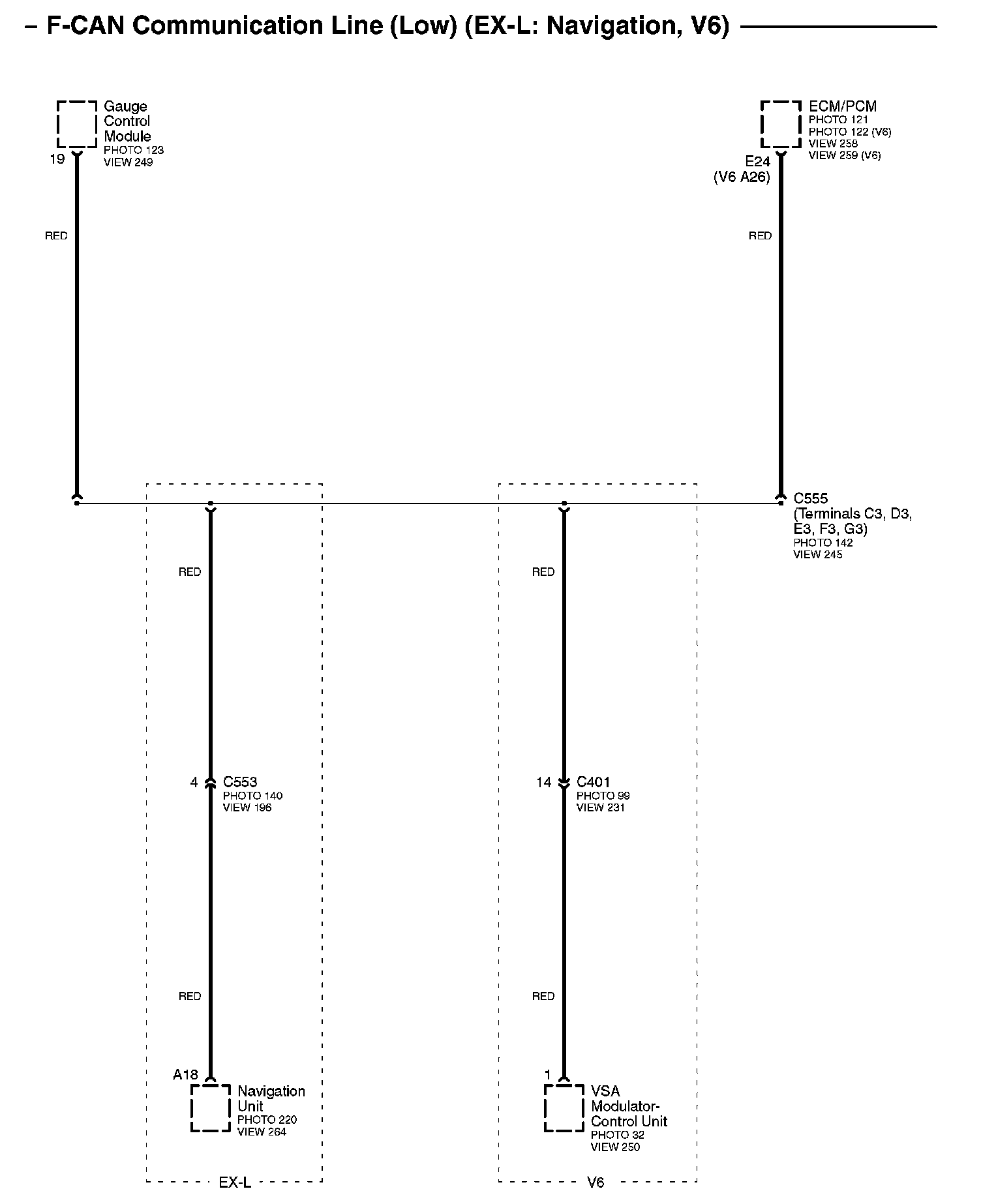

F-CAN Communication Line (Low) (EX-L Navigation, V6):
