Component Locations

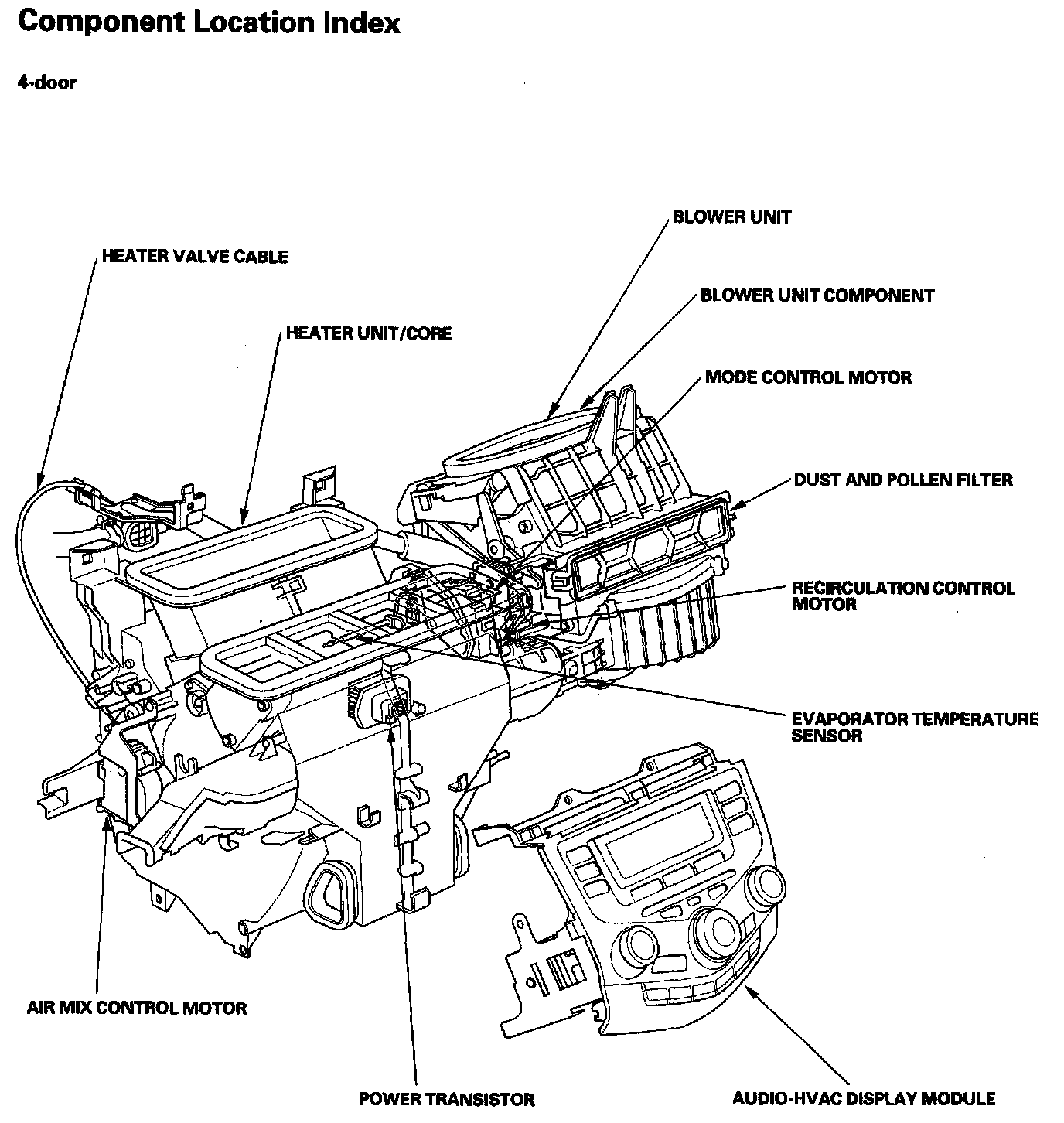

Climate Control Component Location Index:



Climate Control Component Location Index:

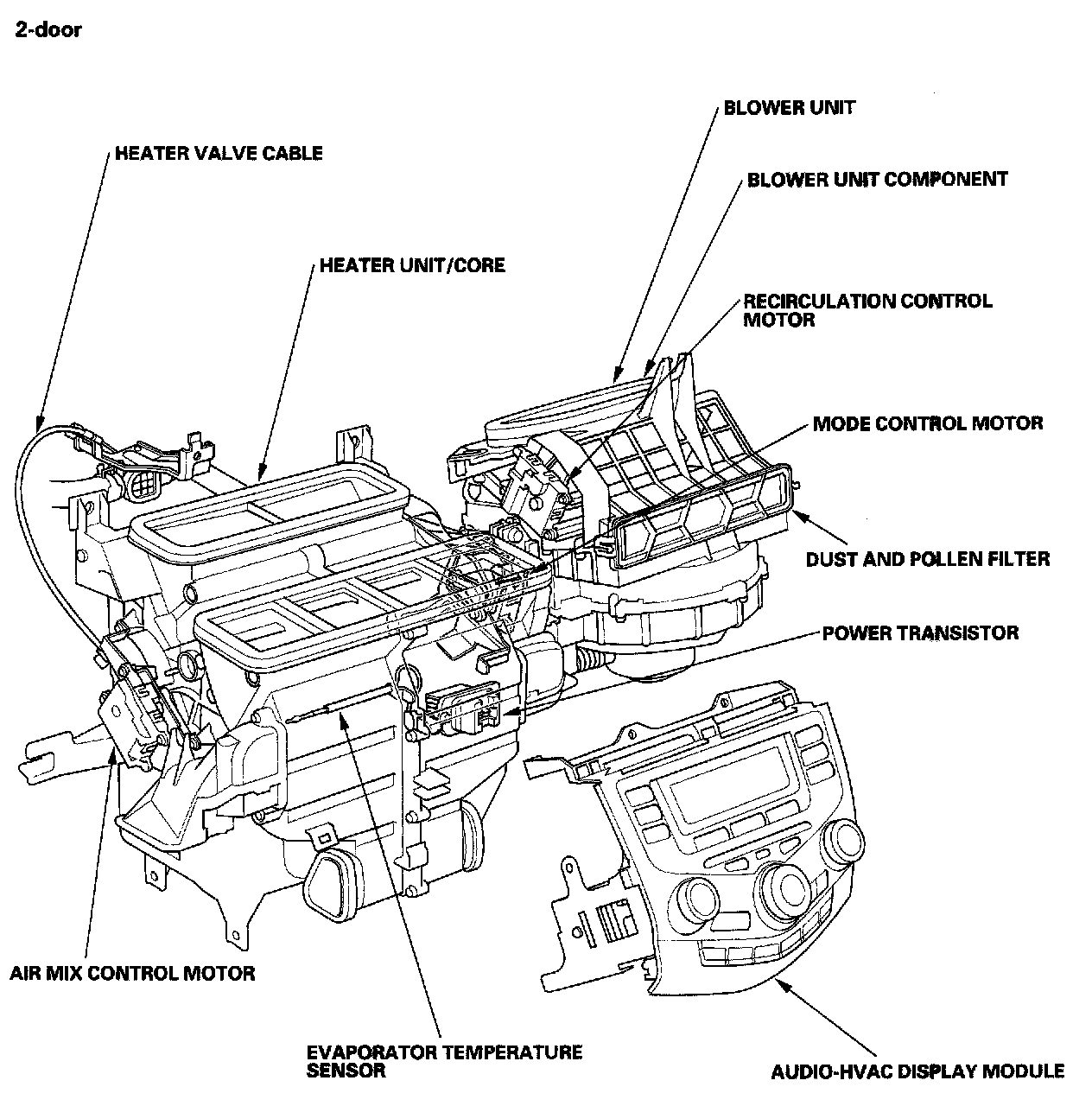

Heating/Air Conditioning Component Location Index:



Heating/Air Conditioning Component Location Index:
