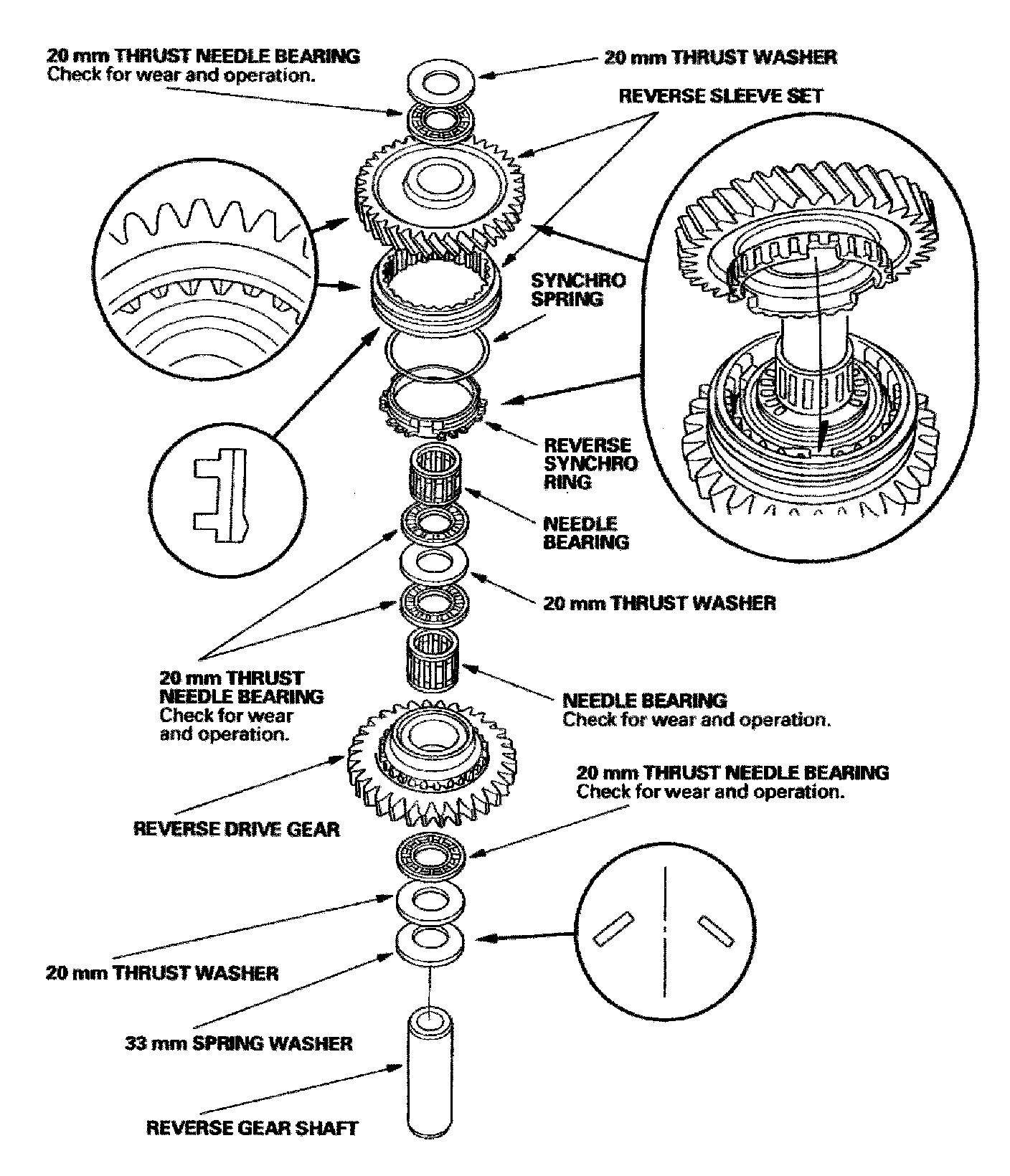

Reverse Idler Gear Shaft Assembly Disassembly/Reassembly

Reverse Idler Gear Shaft Assembly Disassembly/Reassembly
Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surface.
